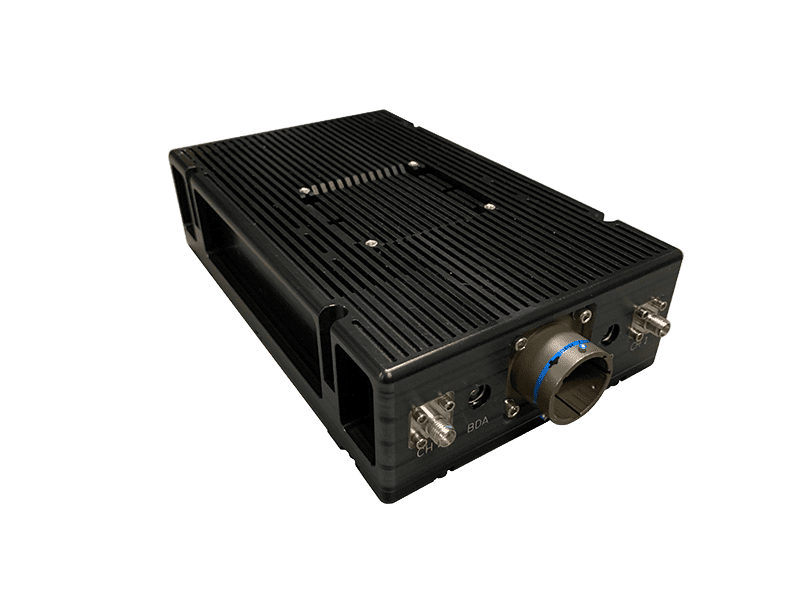

THPR1012 High Power Radio

Longer Range | Higher Data Rates | Lowest SWaP

The THPR1012 High Power Radio contains a Silvus Streamcaster SC4210-235-O OEM radio at its core and combines with our high-power RF subsystems in a low SWaP package. This 2 channel, S-Band amplified radio integrates the necessary Silvus radio, RF amplification, control circuitry, and interfaces to achieve higher RF output power, greater throughput, and longer link distances than the stand-alone radio. Offering +12 to +28 VDC Input Voltage, this integrated radio system contains BDAs, and RF filtering, with link diagnostics.

FEATURES

  • Fully Integrated High-Power RF Sub-System & Radio
  • Extended Range/Data Rate over Stand-Alone Radio
  • Wide Input Voltage, Single DC Supply

APPLICATIONS

  • Long Distance High Data Rate ISR Links
  • UAS, UGV, and USV Video/Data Links
  • Military MANET
  • Maritime High-Throughput LOS/NLOS Systems
  • Point-To-Point and Mesh Networking

SPECIFICATIONS

Dimensions (L x W x H) 7.25″ x 4.5″ x 1.875″ (184.15mm x 114.3mm x 47.625mm)
Weight 40oz (1133.98 g)
RF Connectors SMA-F
Operating Frequency 2200 – 2500 MHz
Power output per Channel Low Data Rate: 15 W
High Data Rate: 4 W
Operating Temperature -20 to +65 °C
Shock / Vibration Designed to MIL-STD-810 and Equivalents
Ingress Protection Rating IP66
