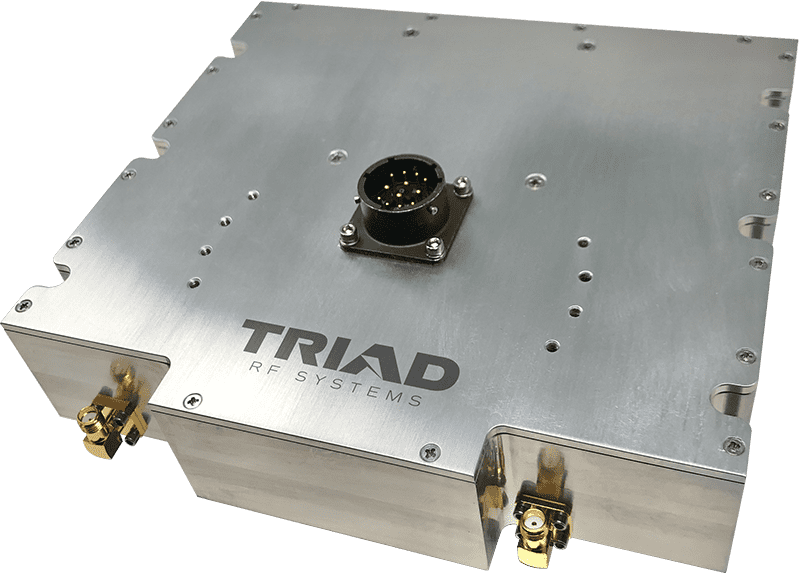

THPR1009-D03 High Power Radio

Longer Range | Higher Data Rates | Lowest SWaP

The THPR1009-D03 High Power Radio contains a Silvus Streamcaster SC4210-435 radio at its core and combines with our high-power RF subsystems in a low SWaP package. This 2 channel, C-Band amplified radio integrates the necessary RF amplification, control circuitry, and interfaces to achieve higher RF output power, greater throughput, and longer link distances than the stand-alone radio. Offering +18 to +36 VDC Input Voltage, this integrated radio system contains BDAs, and RF filtering, with link diagnostics.

FEATURES

  • Fully Integrated High-Power RF Sub-System & Radio
  • Extended Range/Data Rate over Stand-Alone Radio
  • Wide Input Voltage, Single DC Supply

APPLICATIONS

  • Long Distance High Data Rate ISR Links
  • UAS, UGV, and USV Video/Data Links
  • Point-To-Point and Mesh Networking

SPECIFICATIONS

Dimensions (L x W x H) 7.00" x 6.50" x 1.55" (177.8mm x 165.1mm x 39.37mm)
Weight 57.6 oz (1600 g)
RF Connectors SMA-F
Operating Frequency 4400 - 4700 MHz
Power output per Channel Low Data Rate: 25 W
High Data Rate: 10 W
Operating Temperature -20 to +85 °C
Shock / Vibration Designed to MIL-STD-810 and Equivalents
Ingress Protection Rating IP54
