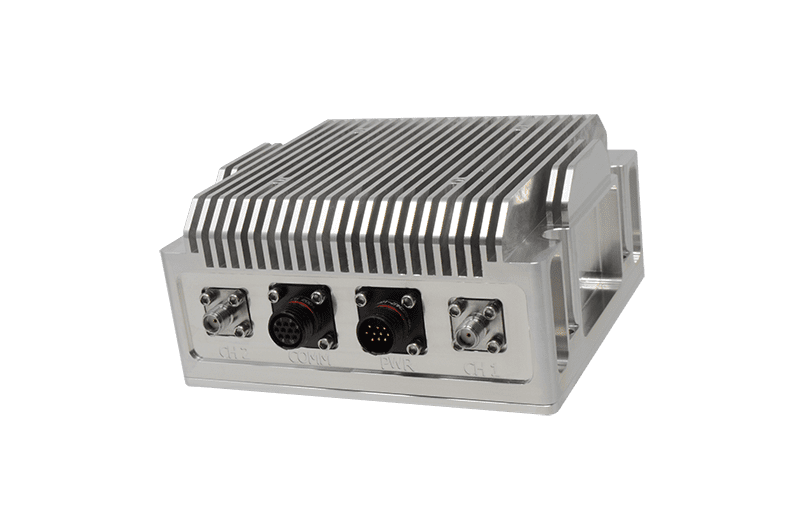

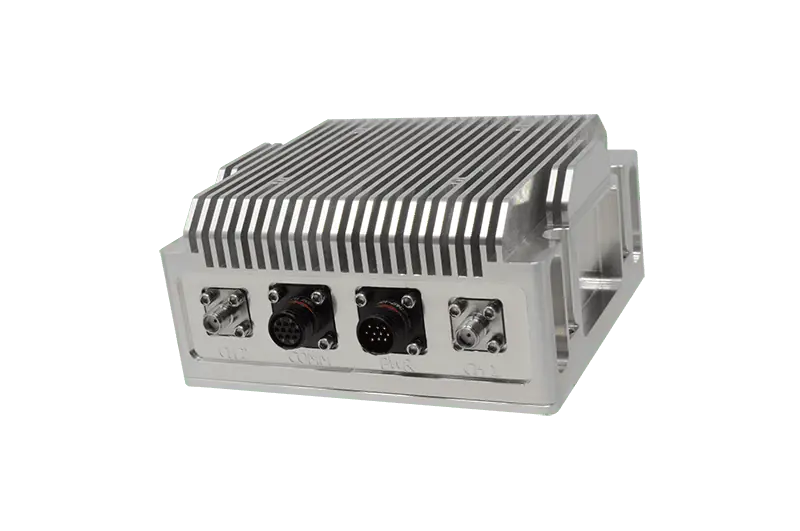

THPR1006 High Power Radio

Longer Range | Higher Data Rates | Lowest SWaP

The THPR1006 High Power Radio contains a Microhard Picoradio 2.45 GHz pMDDL2450 radio at its core and is a 2×2 MIMO amplifier with a TTRM2005D within.

This 2 channel, S-Band amplified radio integrates the necessary RF amplification, control circuitry, and interfaces to achieve higher RF output power, greater throughput, and longer link distances than the stand-alone radio. Offering +12 to +30 VDC Input Voltage, this integrated radio system contains BDAs, and RF filtering, with link diagnostics.

FEATURES

  • Fully Integrated High-Power RF Sub-System & Radio
  • Extended Range/Data Rate over Stand-Alone Radio
  • Wide Input Voltage, Single DC Supply

APPLICATIONS

  • Long Distance High Data Rate ISR Links
  • UAS, UGV, and USV Video/Data Links
  • Point-To-Point and Mesh Networking

SPECIFICATIONS

Dimensions (L x W x H) 4.1" x 3.7" x 2" (104.14mm x 93.98mm x 50.8mm)
Weight 20 oz (566.99 grams)
RF Connectors SMA-F
Operating Frequency 2407 - 2477 MHz
Power output per Channel Low Data Rate: 12.5 W
High Data Rate: 5 W
Operating Temperature -20 to +65 °C
Shock / Vibration Designed to MIL-STD-810 and Equivalents
Ingress Protection Rating IP66
