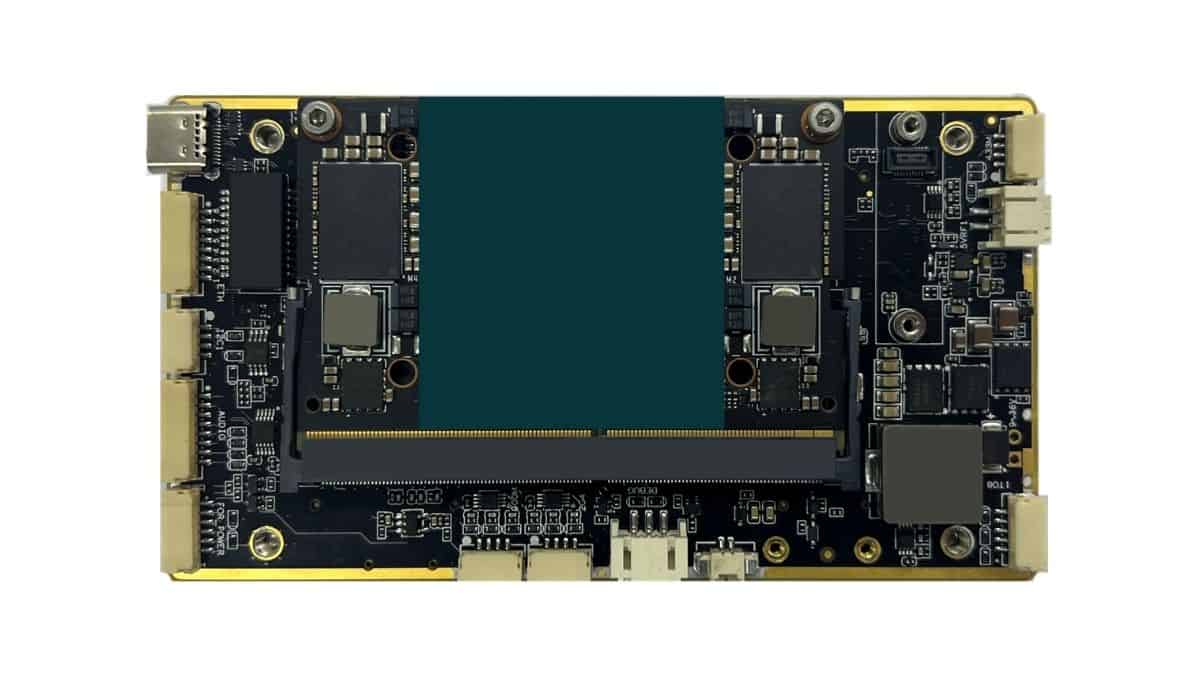

MICRO 1S1N is a compact drone detection and identification module designed for integration into counter-UAS platforms used in unmanned systems security operations. The carrier supports one NX board and one 9364 SOM board, combining detection, direction-finding, jamming, and spoofing functions within a single embedded architecture for space-limited deployments.
The module provides extensive onboard connectivity for peripheral expansion, system control, and mobile operation, including Gigabit Ethernet, Type-C, USB 2.0, RS232, M.2 NVMe storage, mini PCI-E 4G module support, debugging access, and XT30 power input. An adjustable-speed fan, vibration motor, and buzzer interface support thermal management and operator alerts in field-ready C-UAS configurations.
Specifications:
| Power: | 12V Power 6~24V wide voltage input XT30 interface function |
| Dimensions: | 116mm x 65mm |
| Power Consumption: | ≤36W |
| Operating Temperature: | -25°C to 65°C |
| Connectivity: | Ethernet: SM08B Port supports Gigabit USB: One Type-C, and one USB2.0 with BM04M port RS232: Two RS232 Ports Debugging: A2001WRS-3P M.2: One M.2 port supports NVME protocol, the size is 2230 Mini PCI-E: Install 4G Module |
