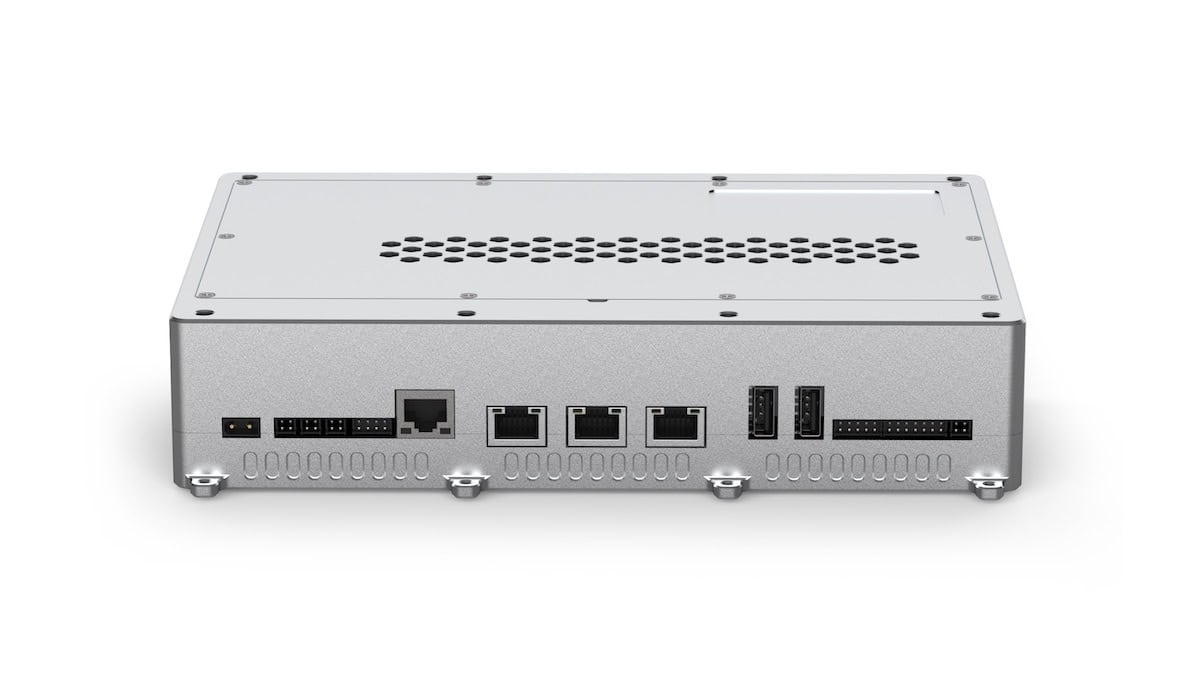

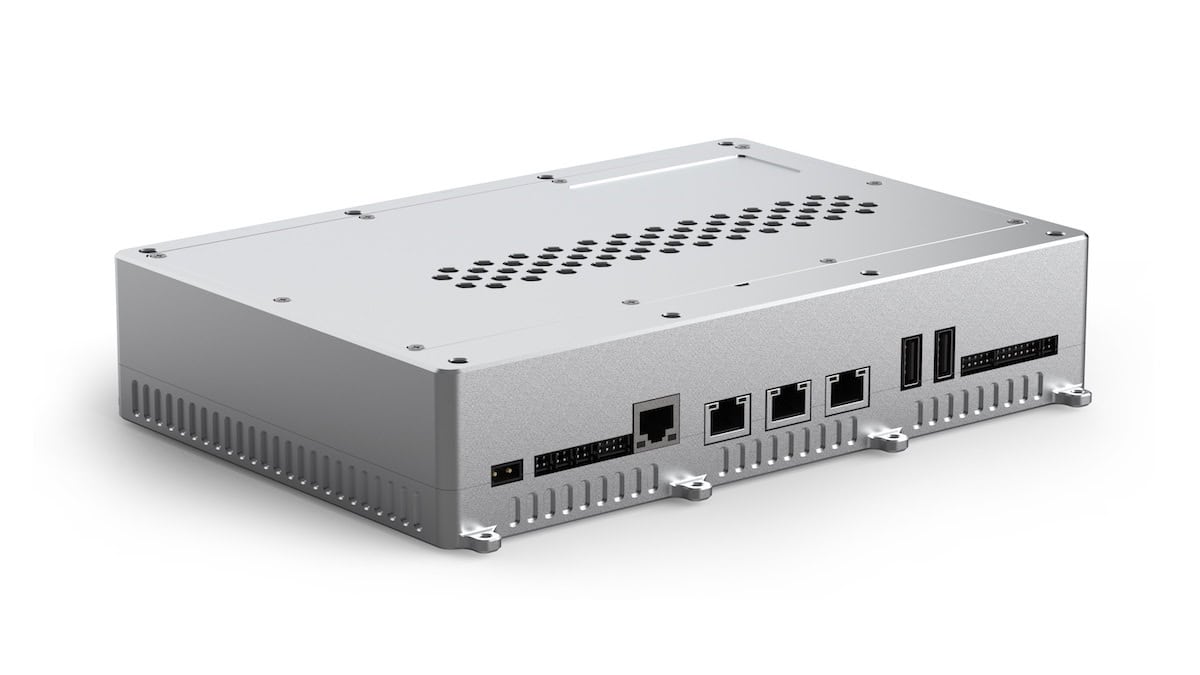

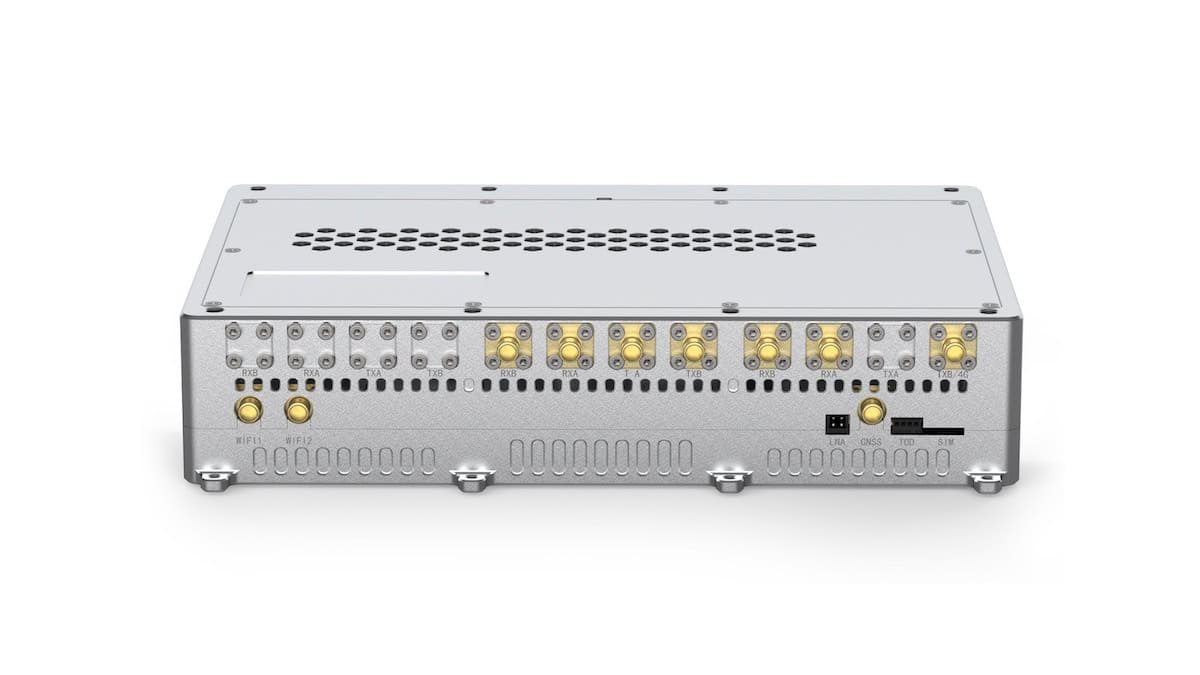

The 3S2N UAV Detection and Identification Module is a highly integrated drone detection solution engineered for low-altitude airspace monitoring and counter-UAS applications. Combining RF, computing, and control units within a single architecture, the module utilizes Cognitive Radio Protocol Cracking (CRPC) 2.0 technology to detect and identify a wide range of commercial and custom-built UAVs, including popular platforms from DJI, AUTEL, and DIY drone manufacturers. Its passive operating methodology enables continuous monitoring without transmitting electromagnetic signals, making it suitable for discreet deployment in security-sensitive environments.
Designed for fixed, airborne, portable, and dismounted applications, the 3S2N provides detailed drone intelligence including aircraft type, operating frequency, serial ID, position, altitude, velocity, and flight path information. The platform supports black and white list management, standardized API integration, and modular expansion for external direction-finding, jamming, and navigation spoofing capabilities. Standardized hardware and software interfaces simplify integration into existing counter-drone systems while enabling rapid deployment across a variety of unmanned systems security scenarios.
Specifications:
| Detection Bands: | 70MHz～6GHz |
| Key Detection Bands: | 433MHz, 900MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz |
| Detection Sensitivity: | -105dBm |
| Power Supply: | DC 24V Power Supply |
| Power Consumption: | ≤60W |
| Dimensions: | 239.5mm (L) × 179.5mm (W) × 50mm (H) |
| Weight: | 1.4kg |
| Operating Temperature: | -25℃～60℃ |
