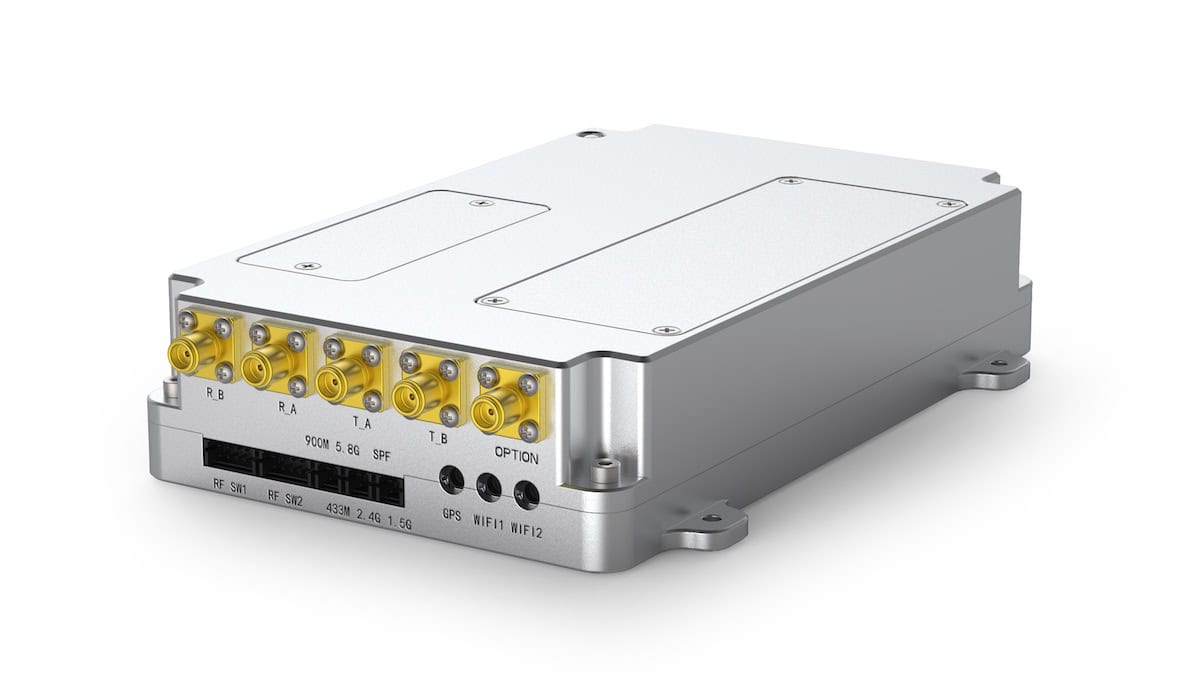

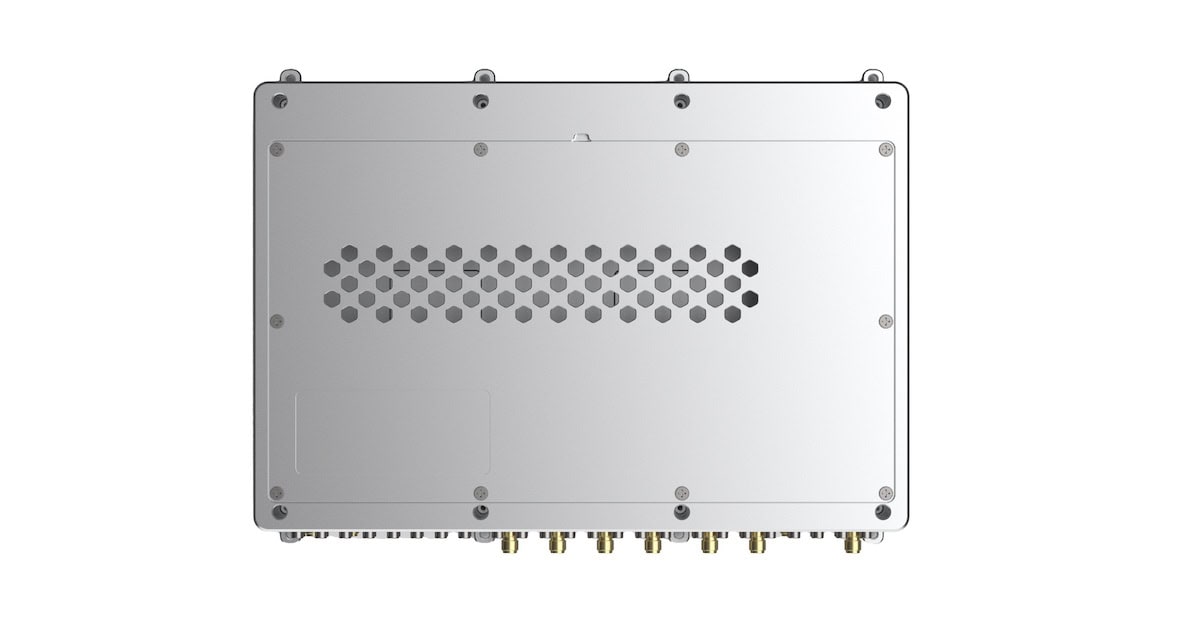

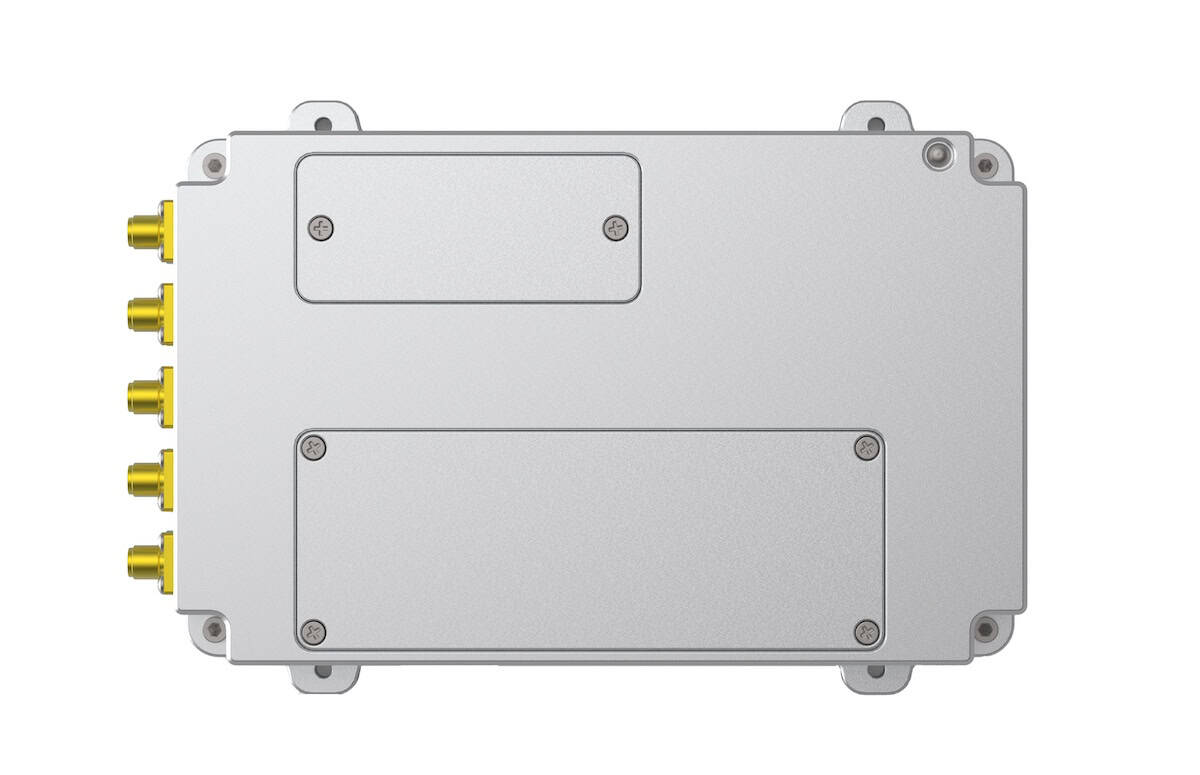

The 1S1N Pro Drone Detection Module is a compact, highly integrated solution for detecting and identifying drones in low-altitude airspace. Combining a radio frequency unit, computing unit, and built-in Drone Defense Software Platform within a single device, the module leverages advanced CRPC technology to recognize a broad range of commercial and custom-built UAVs, including popular platforms from DJI, Autel, and DIY manufacturers. Its passive operating approach enables continuous drone monitoring without transmitting electromagnetic signals.
Designed to simplify the development of counter-UAS and airspace awareness systems, the 1S1N Pro accurately identifies drone electronic fingerprint IDs and supports configurable black and white list management to distinguish between authorized and unauthorized aircraft. The integrated computing capability eliminates the need for external processing hardware, while standardized APIs and interoperability with radio jammers, radar systems, electro-optical sensors, and other security assets enable seamless deployment within multi-layered drone detection architectures.
Specifications:
| Detection Bands: | 70MHz~6GHz |
| Main Bands: | 433MHz, 900MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz |
| Detection Sensitivity: | -105dBm |
| Communication Interface: | RJ45 |
| Power Supply: | DC 24V Power Supply |
| Power Consumption: | ≤60W |
| Dimensions: | 174mm (L) × 127mm (W) × 38mm (H) |
| Weight: | 520g |
| Operating Temperature: | -20°C~50°C |
