NSP-3 Synthetic Aperture Radar

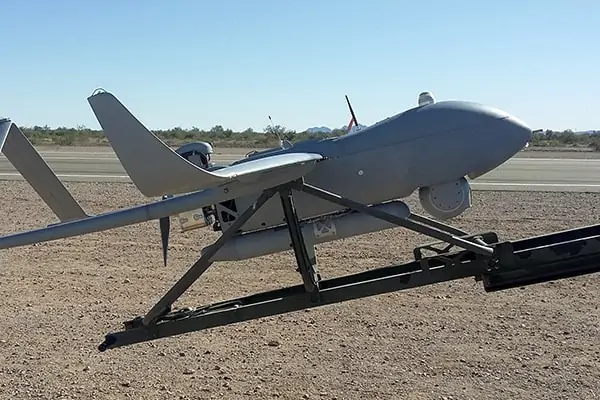

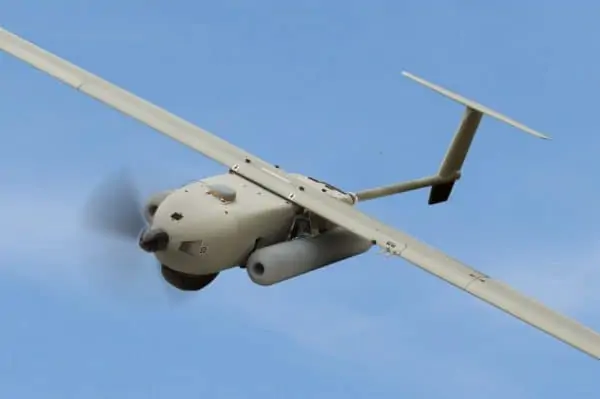

The NSP-3 is an all-weather multi-mode SAR designed for Group 2 and 3 UAS, enabling land and maritime intelligence-gathering operations both during the day and at night. The low-SWaP system is made up of a modular payload enclosure for the radar and processing electronics, and a pod for the antenna subsystem. The electronics enclosure can be installed directly into a payload bay or fuselage and the antenna pod can be mounted externally.

Requiring only power, Ethernet, and a connection to a GPS antenna, the NSP-3 can be controlled via IMSAR's intuitive Lisa 3D Command and Control (C2) and Processing, Exploitation, and Dissemination (PED) software. A Radar Control API is also available for easy integration with third-party and custom-developed software.

The NSP-3 can be connected to a Ground Processing Server via a datalink for real-time data processing, or radar data can be stored onboard for post-mission processing.

Dimensions Radar Electronics: 16.8 x 10.9 x 7.7 cm (6.6 x 4.3 x 3.1 in)
Antenna Pod: 9.5 x 77.6 cm (3.75 x 30.9 in)
Weight 3.04 kg/6.7 lbs (MODSAR configuration)
Power 81W, 28 VDC
Range Resolution 0.1, 0.3, 0.5, 1, 2, 5, 10 m
SAR Imaging Max Range 10 km (0.3m resolution)
16 km (1m resolution)
MTI Vehicle Range 7 km
Maritime Surveillance Range Detection & geolocation 192 km (104 nm)
Detection & tracking 75 km (41 nm)
Classification 40 km (22 nm)
