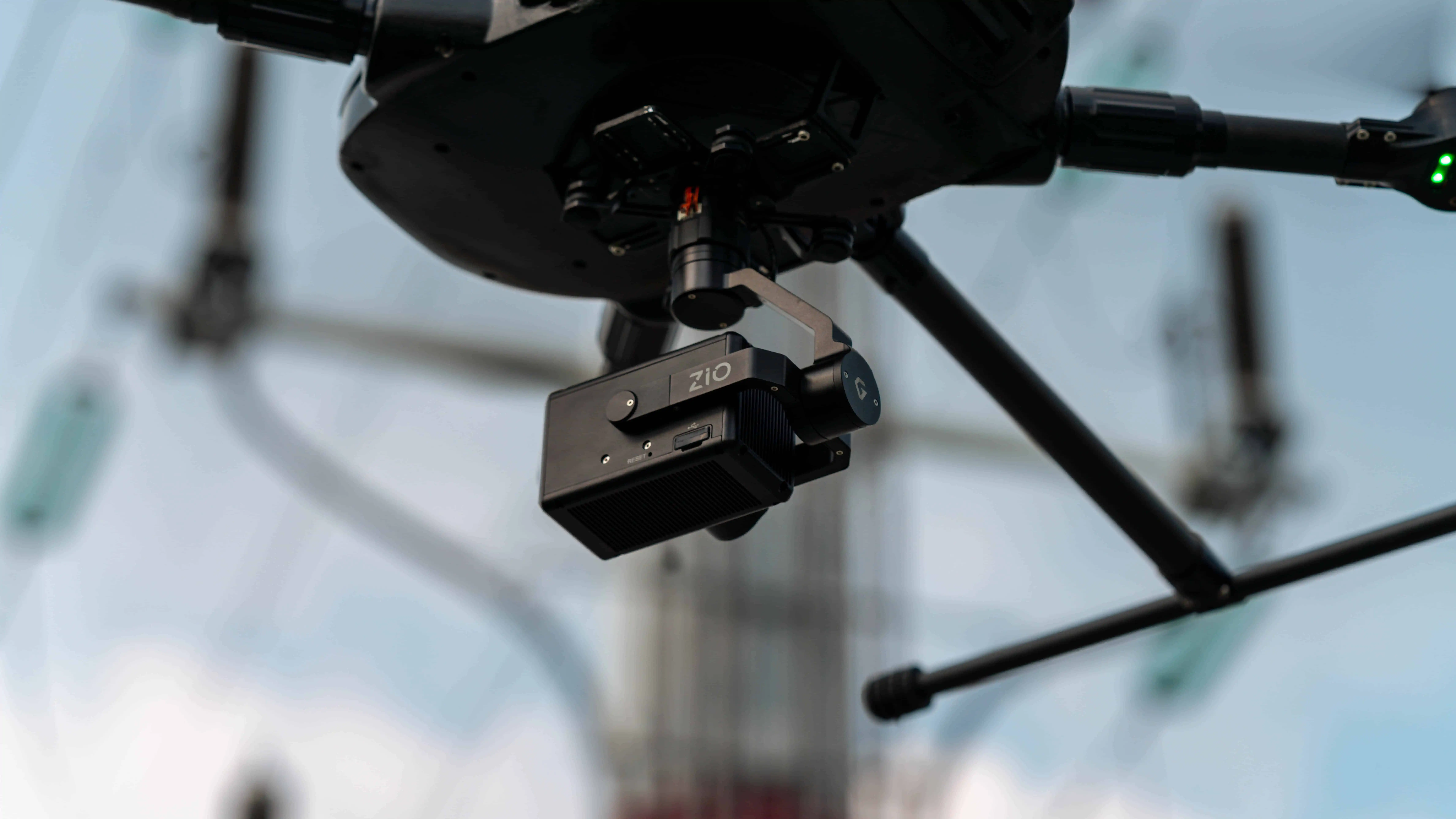

Zio Gimballed 4k Camera Payload
Zio is a lightweight, high-resolution stabilized camera payload designed for commercial, industrial, and public safety missions. Its Sony 4K imaging sensor and support for up to 30x zoom enable it to capture and stream high-quality images and video for roof surveys, powerline and infrastructure inspections, construction site monitoring, and other demanding applications.
With MAVLink support, Zio integrates seamlessly with PX4 and ArduPilot-powered drones. Video can be streamed to a ground control station via HDMI or Ethernet.
Specifications:
| Dimensions (Lx W x H) | 145 x 90 x 148 mm |
| Weight | 480g (1.06 lbs) |
| Power Consumption | 12-48 W |
| Video Output |
HDMI 1920 x 1080 (60p) Ethernet H264 RTP at 1920 x 1080 (60p) |
| Controllable Range |
Tilt: ± 120° Pan: ± 320° |
| Mechanical Range |
Tilt: +138 to -198° Pan: ± 335° Roll: +75 to -265° |
| Max Controllable Speed |
Tilt: 100°/s Pan: 100°/s |
