G-Hadron Drone Gimbal

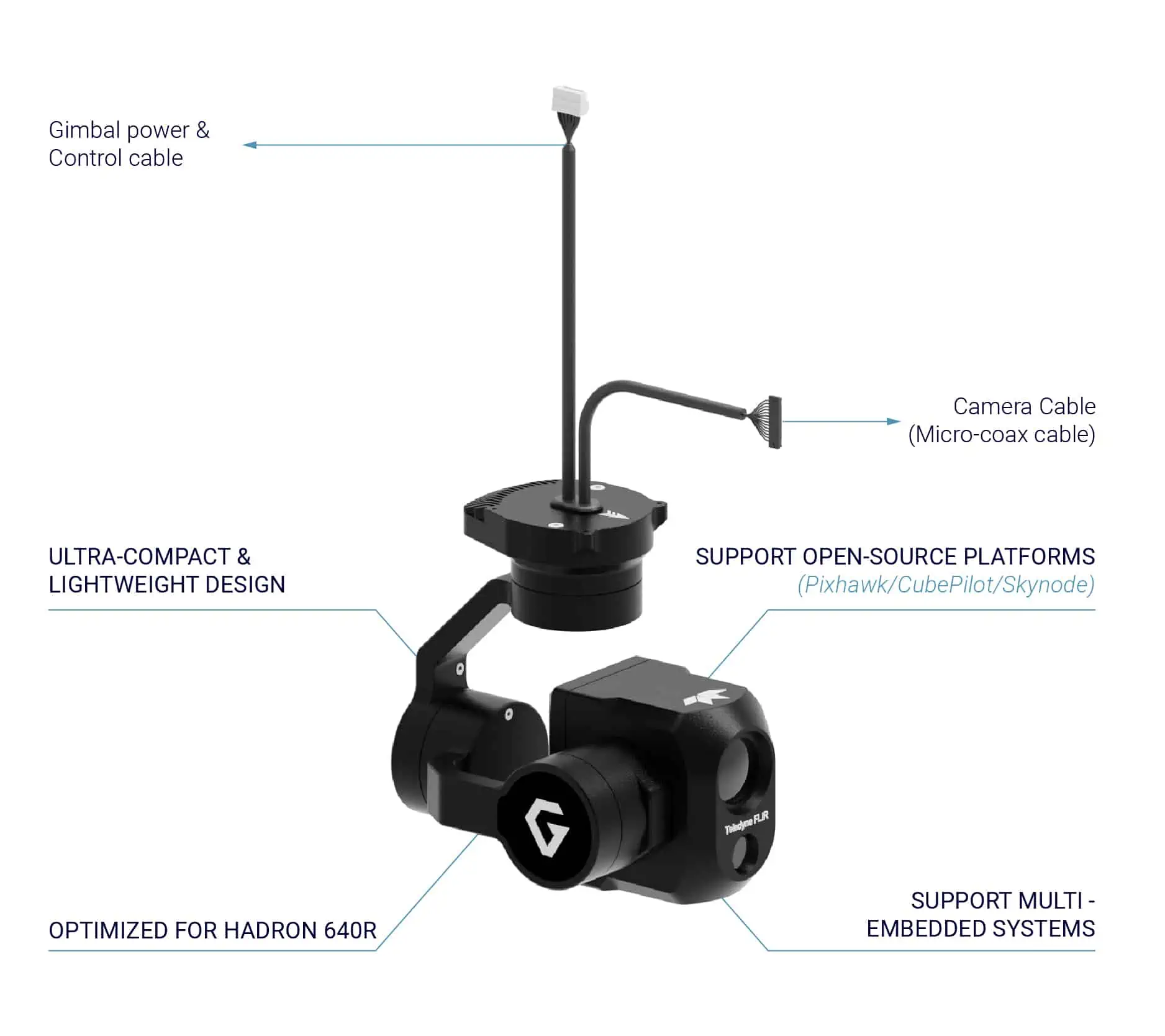

The G-Hadron is an ultra-lightweight gimbal that provides OEMs and systems integrators with a highly stabilized plug-and-play solution for seamlessly integrating the Teledyne FLIR Hadron 640R dual-camera module into their UAV platforms. This industrial-grade combination enables a wide range of use cases including firefighting, utilities inspection, search and rescue, and more.

The gimbal supports Pixhawk, CubePilot and Skynode flight controllers, and supports USB 2.0, UART and SBUS communications. It can be provided with a standard damping system, or Gremsy can custom-engineer a tailored solution to meet your precise requirements.Specifications:

Dimensions (DxWxH) 90 x 63 x 98 mm
Weight 164g
Power 15 – 52 V
I/O USB 2.0, UART, SBUS
Max Controlled Rotation Speed Pan axis: 100°/s
Tilt axis: 100°/s
Roll axis: 100°/s
Mechanical Endpoint Range Pan axis: ±170°
Tilt axis: ±170°
Roll axis: -260° to 80°
Controlled Rotation Range Pan axis: ±175°
Tilt axis: ±120°
Roll axis: ±40°
