DSP-1760 Fiber Optic Gyro (FOG) Sensor (Non-ITAR)

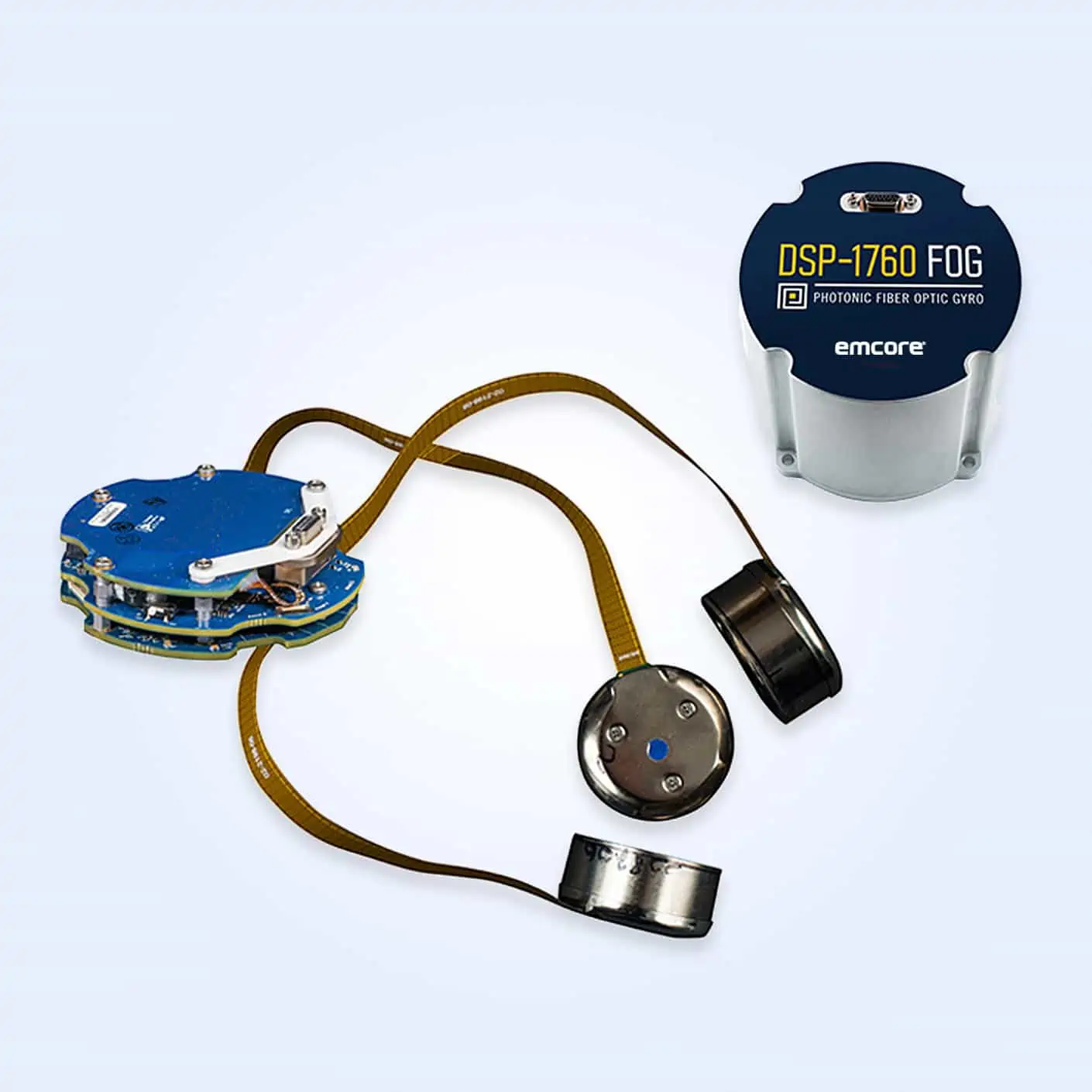

The DSP-1760 FOG is a versatile, solid-state navigation-grade gyro that is available in 1, 2 or 3 axes, encased within an easy-to-integrate an environmentally sealed housing. Providing high bandwidth and low noise, the DSP-1760 gyro offers superior performance in bias stability, scale factor and angle random walk.

The DSP-1760 gyro is highly adaptable and suitable for a wide range of challenging military and commercial applications, including weapons platform stabilization for land, sea, and aerial manned and unmanned systems, as well as navigation, guidance and control systems.

Features:

  • Available in six configurations: 1, 2, or 3 axes, each with 15-pin Micro-D connector or 13-pin circular connector
  • RS-422 digital interface
  • Bandwidth: ≥440 Hz (±4%)
  • Compact package – 88.9 mm D x 73.7 mm H (3.5 in. x 2.9 in.)
  • Angle Random Walk (ARW): ≤0.012°/√hr
  • Environmentally sealed, lightweight housing – from 0.5 to 0.6 kg (1.1 to 1.32 lb.) depending on number of axes
