New Computer-on-Modules Based on 12th Gen Intel Core Processors

By Mike Ball / 18 Jan 2022
Follow UST

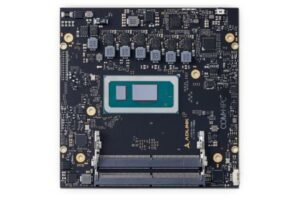

ADLINK 12th gen Intel computer-on-moduleADLINK Technology has introduced new Computer-on-Modules (COMs) based on 12th Gen Intel Core processors and available in two form factors – COM-HPC Client Type and COM Express Type 6. The new COMs feature a unique design that can be adapted for single-thread or multithread performance, with an advanced hybrid architecture and a future-proof design that supports both current and future peripherals.

The modules support PCIe 4.0 and DDR5 memory with up to 4800 MT/s combined with increased cache, and feature security and manageability features. AI capabilities allow intelligent workload optimization, and computer vision, making the modules ideal for drones and robotics.

The integrated Intel Iris Xe graphics architecture, with up to 96EUs, offers four concurrent 4K60 HDR displays and an Intel Deep Learning Boost to deliver superior AI performance. Using DDI, eDP 1.4b and USB4/TBT4, the four independent displays support Display Alternative mode, providing premium graphics features for superior content support, display and I/O virtualization.

Alex Wang, Senior Product Manager for the Module Product Center at ADLINK, commented: “Working closely with Intel, we are bringing timely, next-generation computing modules to the market with Intel Alder Lake-H. We now offer a full line-up of COM-HPC and COM Express modules for any deployment scenario and budget.”

Find manufacturers of COM Express Embedded Solutions for Unmanned Systems >>

Posted by Mike Ball Mike Ball is our resident technical editor here at Unmanned Systems Technology. Combining his passion for teaching, advanced engineering and all things unmanned, Mike keeps a watchful eye over everything related to the unmanned technical sector. With over 10 years’ experience in the unmanned field and a degree in engineering, Mike’s been heading up our technical team here for the last 8 years. Connect & Contact
