Antennas are devices designed to transmit (Tx antenna) or receive (Rx antenna) electromagnetic waves, acting as a bridge between free space and a guiding device like a coaxial line or waveguide.
Maxtena delivers high-performance GNSS, SATCOM, LTE, and Wi-Fi antennas for unmanned systems. These guiding devices are responsible for transporting electromagnetic energy between the antenna and the transmitting source or receiver.
Antennas convert electrical signals to electromagnetic waves for transmission and convert received electromagnetic waves back into electrical currents. This makes them fundamental in applications such as broadcasting, Wi-Fi, radar, and satellite communication.
The design and type of antenna depend on specific communication requirements and the frequency ranges they are meant to handle.

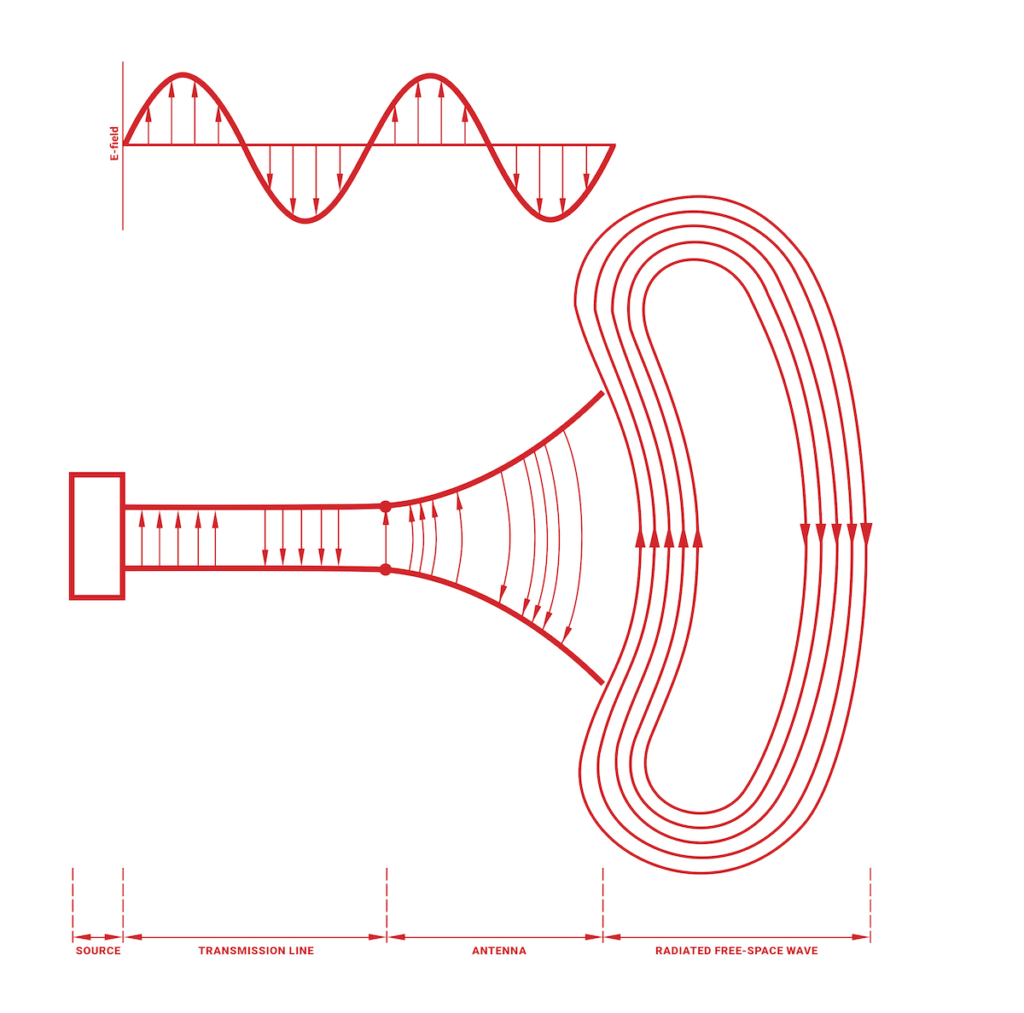

Figure 1. Antenna as a transition device

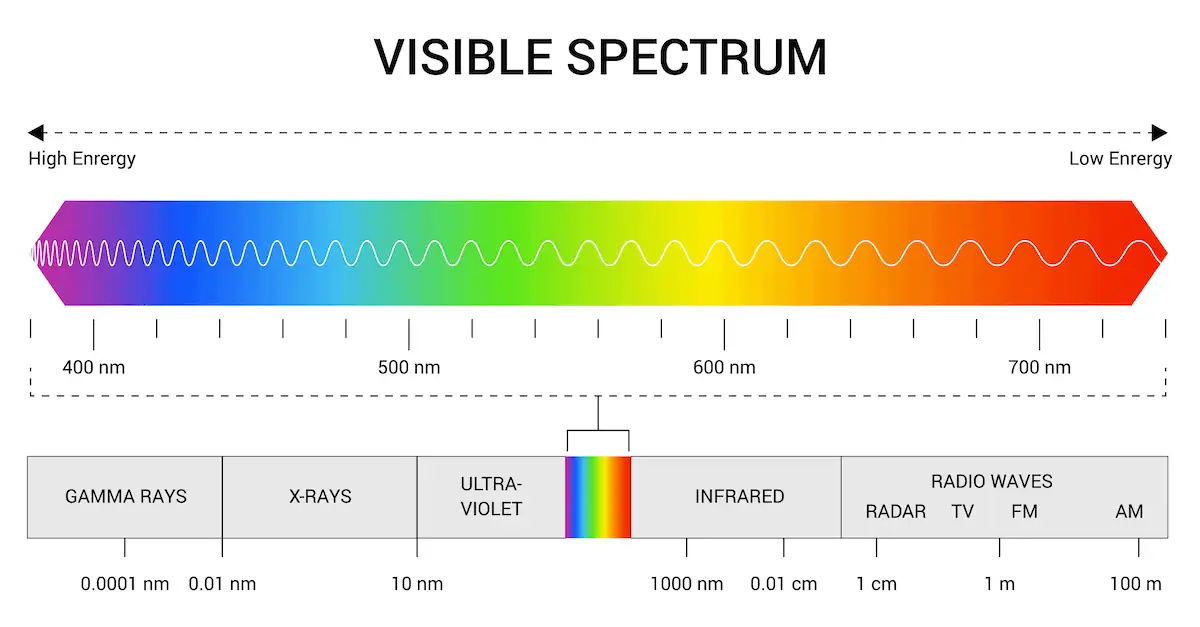

Electromagnetic Spectrum
Antennas operate across different parts of the Electromagnetic (EM) Spectrum, which is categorized based on wavelength and frequency:
Radio Waves: The lowest frequencies and longest wavelengths. Applied in broadcasting, navigation, and communication.
Microwaves: Shorter wavelengths and higher frequencies than radio waves, utilized in radar, communication, and microwave ovens.
Infrared Radiation: Longer wavelengths and lower frequencies than visible light; applied in heat sensing and certain communication technologies.
Visible Light: The narrow spectrum that the human eye can see, from red to violet.
Ultraviolet (UV) Radiation: Shorter wavelengths and higher frequencies than visible light; used in sterilization and imaging.
X-rays: Shorter wavelengths and higher frequencies than UV, common in medical imaging and security.
Gamma Rays: The shortest wavelengths and highest frequencies. Used in radiation therapy and nuclear studies.
Types of Antennas
Various types of antennas are designed to meet specific communication needs based on factors like frequency range, directionality, and environmental conditions. Here are some common types:
Dipole Antenna
Consists of two conductive elements, typically straight wires or metal rods, commonly used for radio and television broadcasting.
Monopole Antenna
Similar to a dipole but with a single conductive element. Often used in applications where a ground plane is present, such as in mobile devices.
Maxtena Single-Band Conformal Wave Antenna
Yagi-Uda Antenna
Directional antenna with multiple parallel elements, including a driven element, reflector, and one or more directors. Widely used for television reception and amateur radio.
Patch Antenna
A flat, planar antenna with a radiating patch on a substrate; commonly used in Wi-Fi and RFID applications.
Parabolic Reflector Antenna
Features a parabolic dish with a feed antenna at its focal point, used in satellite communication, radar systems, and microwave point-to-point links.
Horn Antenna
Shaped like a horn, suitable for wideband applications and high-frequency ranges; used in microwave and millimeter-wave systems.
Log-Periodic Antenna
Contains a series of dipole elements of varying lengths. Exhibits consistent performance over a wide frequency range and is used in TV antennas.
Loop Antenna
Forms a closed loop of conductive material and is used in AM radio reception and inductive coupling applications.

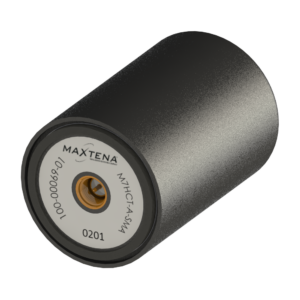

Maxtena Triple-Band Helical GNSS Antenna
Helical Antenna
Helical antennas are spiral-shaped with a helix structure, used for satellite communication, radio astronomy, and RFID.
Whip Antenna
A simple, vertical, and flexible antenna; commonly used in portable and mobile communication devices, such as walkie-talkies.
Cone Antenna
Shaped like a cone, used for broadband and ultra-wideband (UWB) applications.
Slot Antenna
Consists of a slot or opening in a conductive surface. Commonly used in radar and communication systems.
Importance of Antennas
Antennas are crucial for enabling reliable and efficient wireless communication. They provide flexibility in design, allowing for optimization based on frequency range, directionality, and environmental conditions.
Antennas are fundamental in supporting emerging technologies such as 5G, the Internet of Things (IoT), and beyond, where advancements in antenna technology are essential to meet the growing demands of modern communication systems.
Antennas remain vital in our increasingly connected world, enabling the seamless transmission of data across wireless networks, satellite systems, and more. As technology evolves, the development of advanced antenna designs will continue to play a crucial role in the advancement of communication technologies.
