simpleRTK2B 4G NTRIP Starter Kit

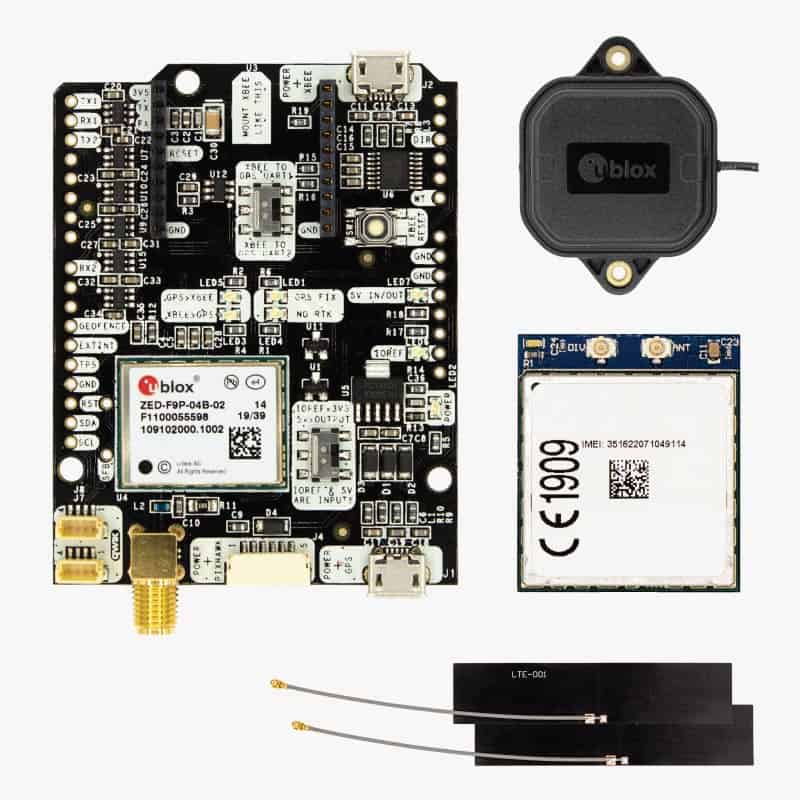

The 4G NTRIP Starter Kit combines the ZED-F9P-based simpleRTK2B Pro RTK GNSS board with a 4G radio module and multiband antenna to provide a convenient capability that can automatically download NTRIP corrections from your preferred service, and broadcast centimeter-accurate location data to an NTRIP caster over 2G, 3G or 4G cellular.
The kit is compatible with the u-blox Thingstream PointPerfect augmentation service, and is available for use in either the Europe or North America network regions.
Specifications:
| Cellular Frequencies (Europe): |
4G Bands (MHz): B1(2100), B3(1800), B7(2600), B8(900), B20(800) 3G Bands (MHz): B2(2100), B8(900) 2G Bands (MHz): B3(1800), B8(900) |
| Cellular Frequencies (North America): |
4G Bands (MHz): B2(1900), B4(1700), B5(850), B12/B13 (700) 3G Bands (MHz): B2(1900), B5(850) |
| GNSS Frequencies: |
GPS: L1C/A L2C GLONASS: L1OF L2OF Galileo: E1-B/C E5b BeiDou: B1I B2I QZSS: L1C/A L2C SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN |
| Accuracy: |
<1cm with a base station up to 35km <1cm with NTRIP up to 35km <4cm with SSR corrections <1.5m in standalone mode <0.9m standalone with SBAS coverage |
| Update Rate: |
Default: 1Hz With maximum performance: up to 10Hz With reduced performance: up to 20Hz |
