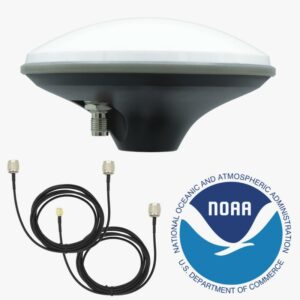

simpleANT3B series GNSS Antennas

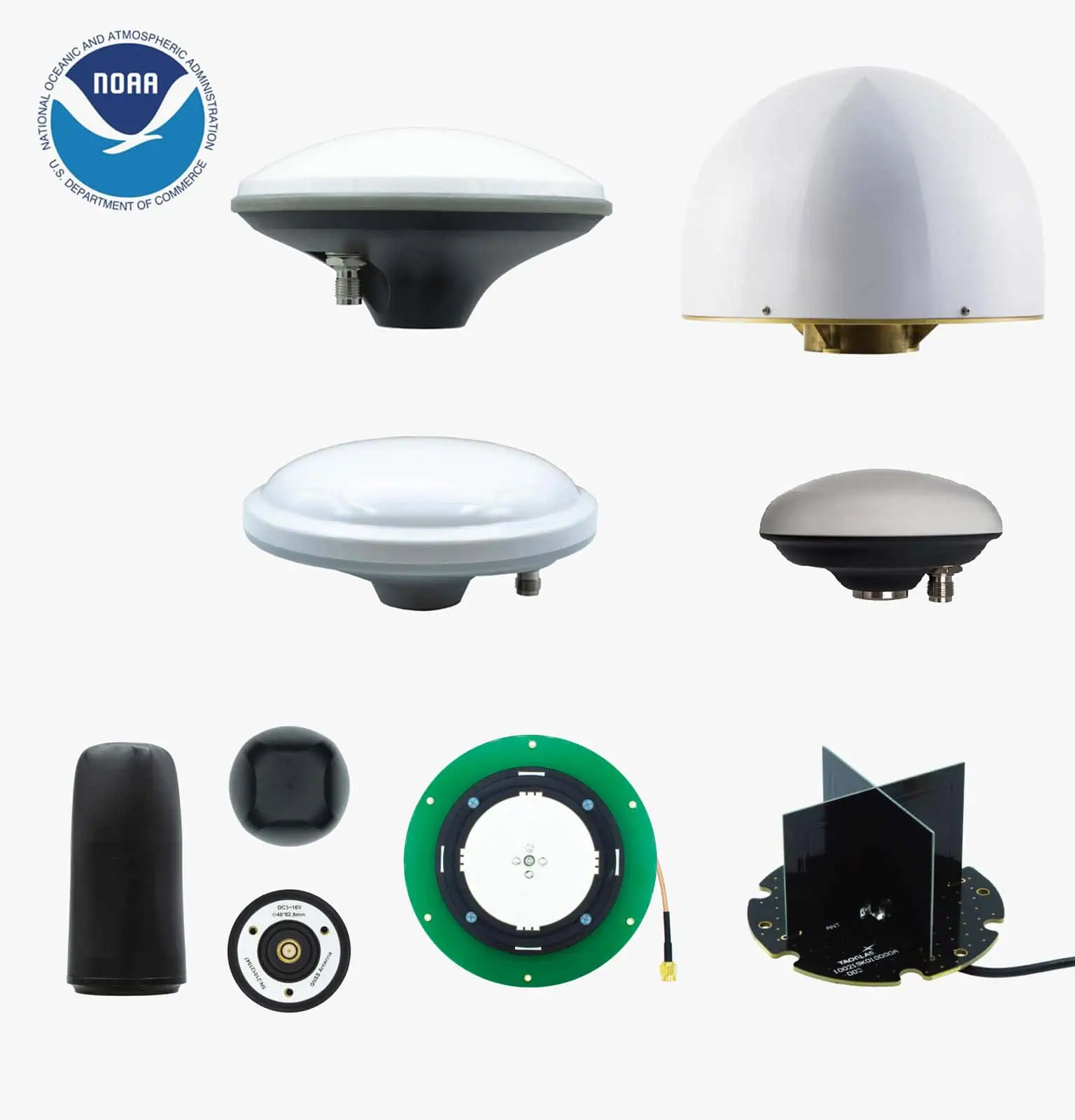

The simpleANT3B series of low-power RTK GNSS antennas tracks GPS L1/L2/L5 and L-band, as well as other constellations, and allows your receiver to achieve millimeter-level accuracy. Budget and calibrated models in IP66 and IP67-rated enclosures are available, as well as a range of other form factors including helical, ultralight, OEM and choke ring.
Specifications:
 Calibrated |

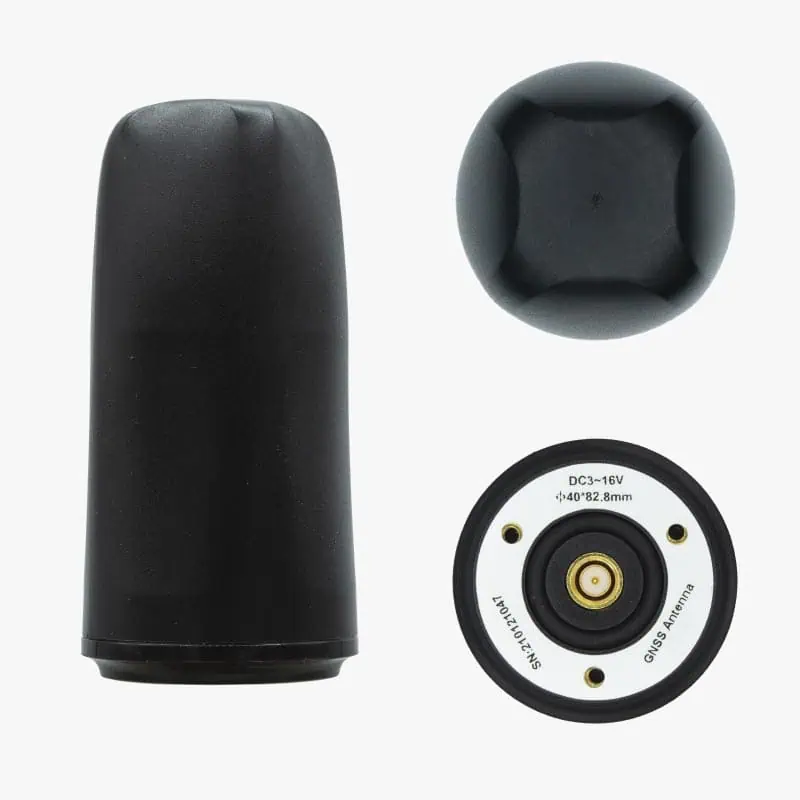

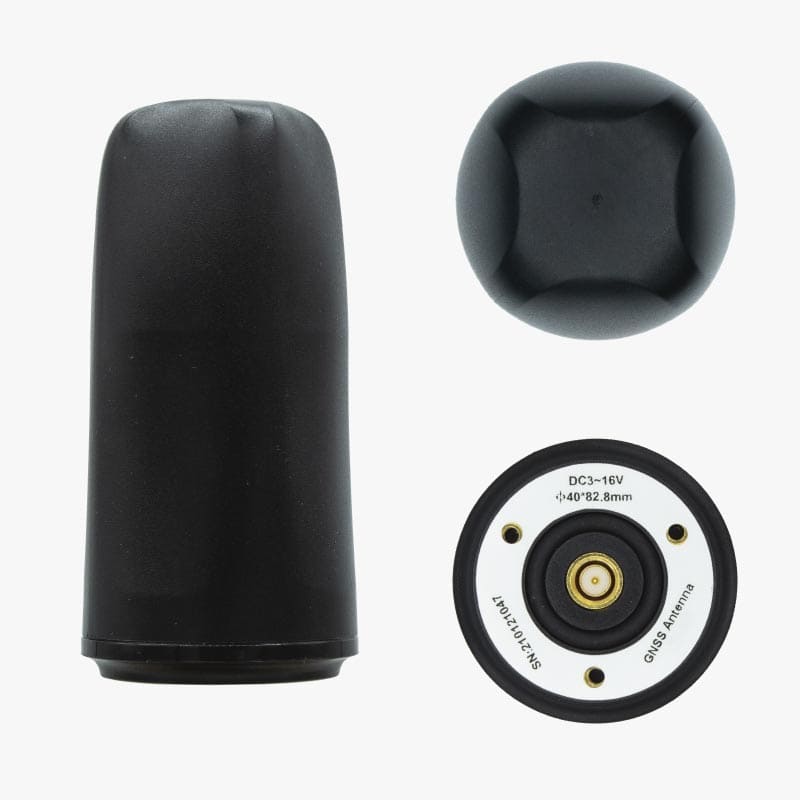

 Helical |
 Choke Ring |
|
| Max Length: | 152 mm | 83 mm | 380 mm |
| Weight: | 410 g | 25 g | 10 kg |
| Power: | 3-12V 50 mA typical @ 3V |
3-16V 35 mA typical @ 3V |
3-12V 60 mA typical @ 3V |
| Signals: | GPS: L1, L2, L5, L6 GLONASS: G1, G2, G3 BeiDou: B1, B2, B3 Galileo: E1, E5, E6 QZSS: L1, L2 Navic: L5 L-band: L6 SBAS: WAAS, EGNOS, MSAS and GAGAN |
GPS: L1, L2, L5 GLONASS: G1, G2, G3 BeiDou: B1, B2, B3 Galileo: E1, E5, E6 QZSS: L1, L2, L5, L6 Navic: L5 L-band: L6 SBAS: WAAS, EGNOS, MSAS and GAGAN |
GPS: L1, L2, L5 GLONASS: G1, G2, G3 BeiDou: B1, B2, B3 Galileo: E1, E5, E6 QZSS: L1, L2, L5, L6 Navic: L5 L-band: L6 SBAS: WAAS, EGNOS, MSAS and GAGAN |
| Average LNA Gain: | 40 dB | 33 dB | 40 dB |

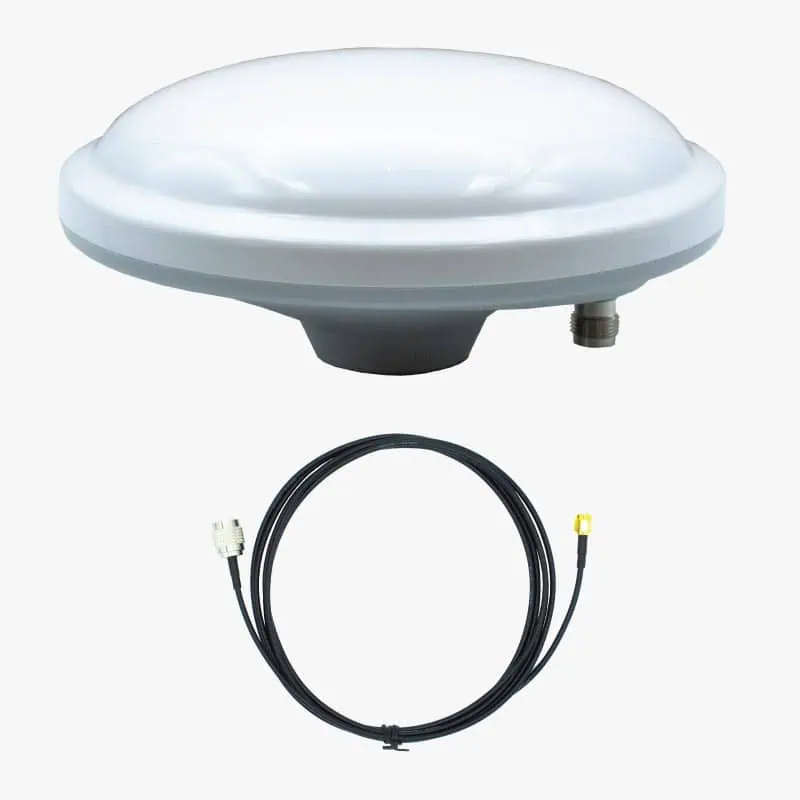

 Budget Survey |

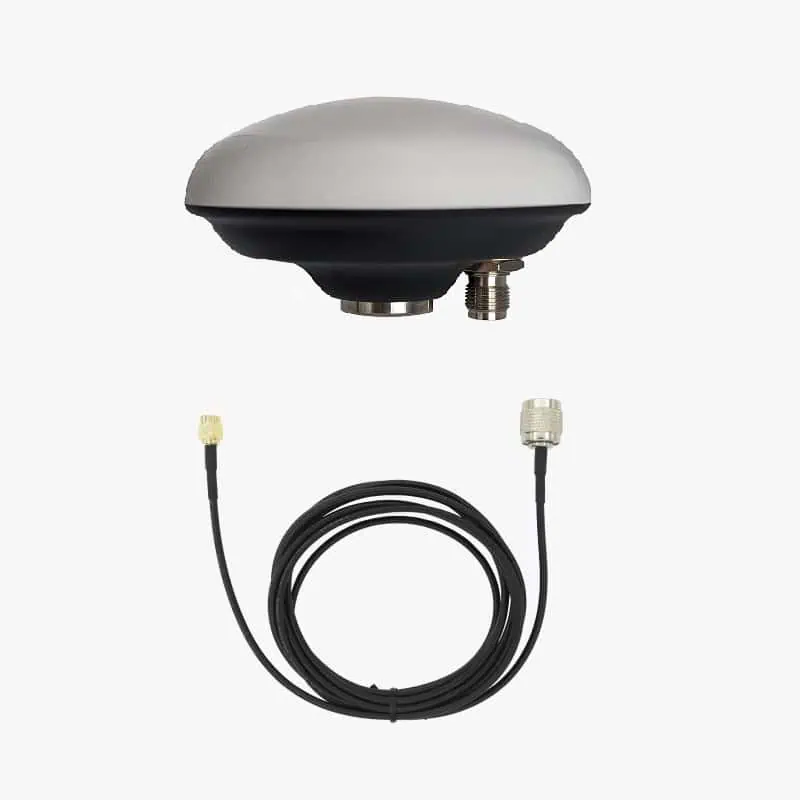

 Mini Survey |

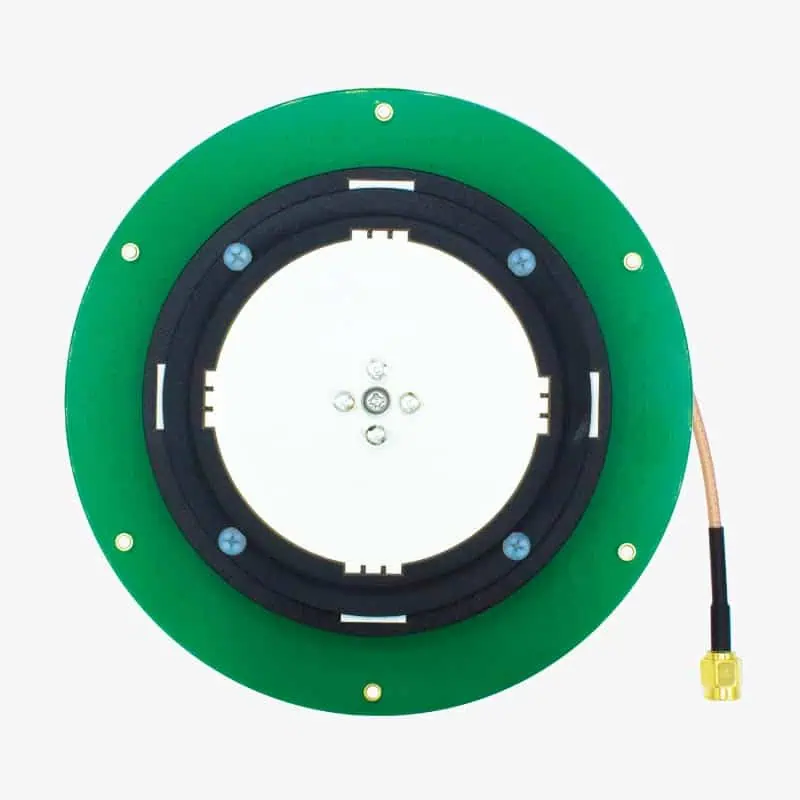

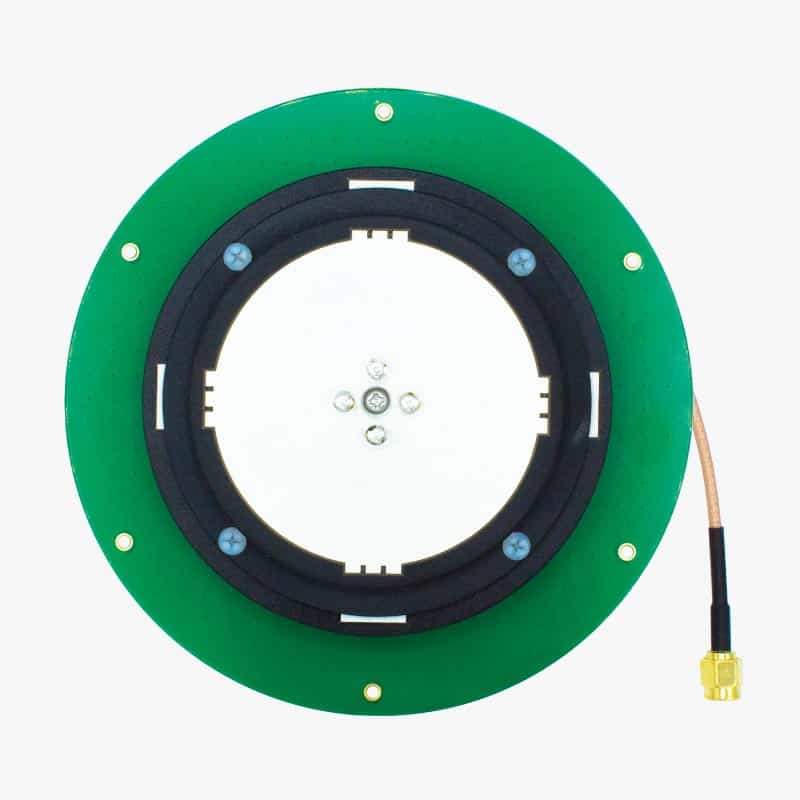

 OEM |
|
| Max Length: | 147 mm | 101 mm | 130 mm |
| Weight: | 390 g | 340 g | 250g |
| Power: | 3-5.5V 50 mA typical @ 3V |
3-5.5V 55 mA typical @ 3V |
3-5.5V 50 mA typical @ 3V |
| Signals: | GPS: L1, L2, L5 GLONASS: G1, G2, G3 BeiDou: B1, B2, B3 Galileo: E1, E5 QZSS: L1, L2 Navic: L5 SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN |
GPS: L1, L2, L5 GLONASS: G1, G2, G3 BeiDou: B1, B2, B3 Galileo: E1, E5 QZSS: L1, L2 Navic: L5 SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN |
GPS: L1, L2, L5 GLONASS: G1, G2, G3 BeiDou: B1, B2, B3 Galileo: E1, E5, E6 QZSS: L1, L2 Navic: L5 SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN |
| Average LNA Gain: | 40 dB | 40 dB | 40 dB |
