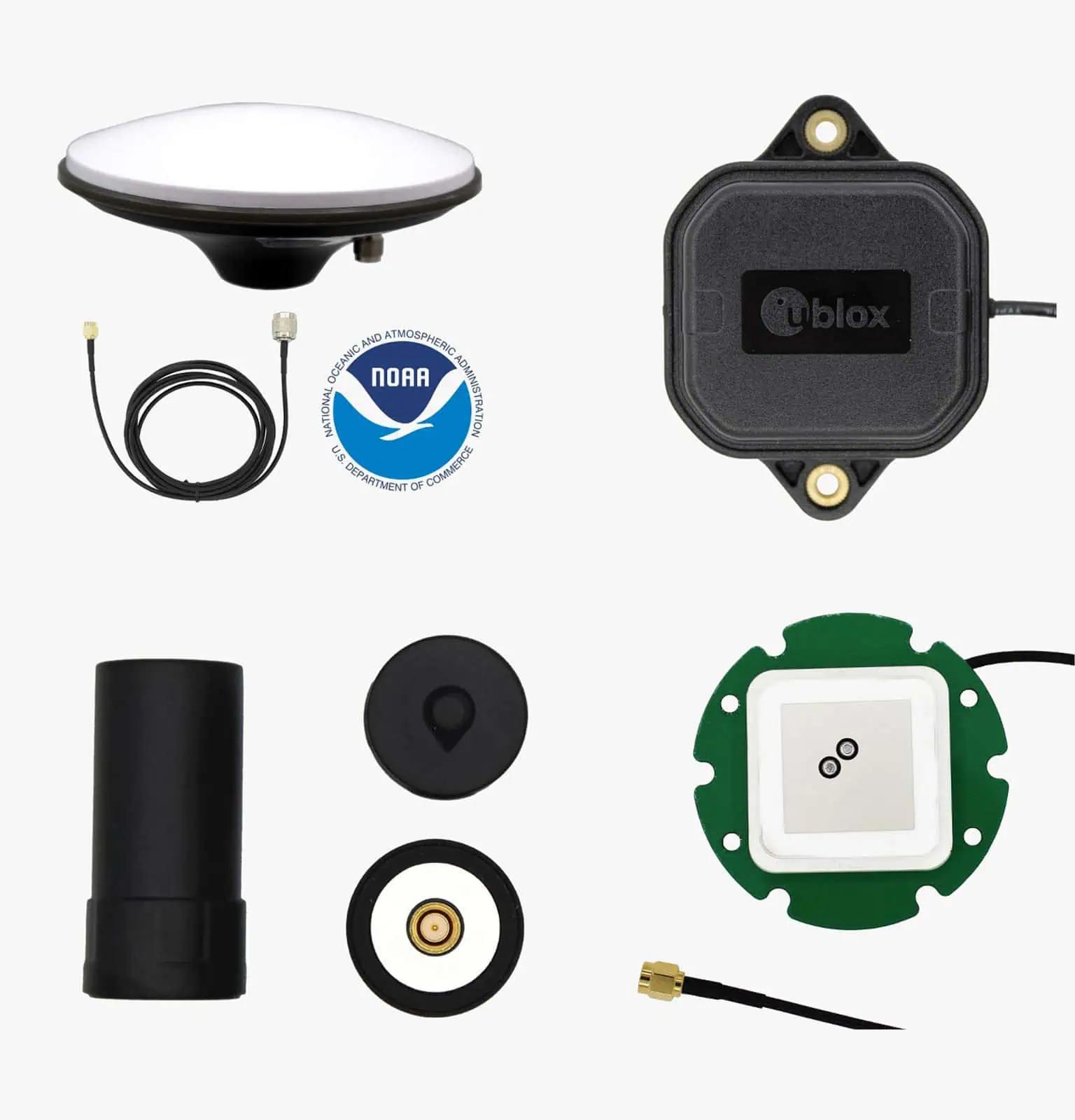

simpleANT2B Series GNSS Antennas
The simpleANT2B series of low-power RTK GNSS antennas tracks GPS L1/L2 and L-band, as well as other constellations, and allows your receiver to achieve centimeter-level accuracy. Budget and calibrated models in IP66 and IP67-rated enclosures are available, as well as a range of other form factors including helical and OEM.

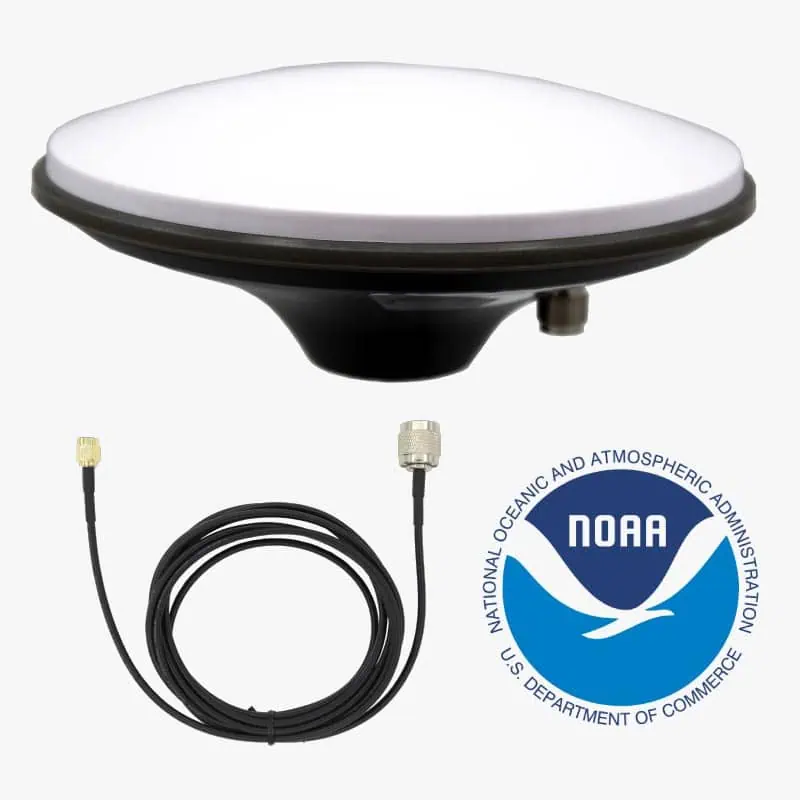

 Calibrated |
 Budget Survey |

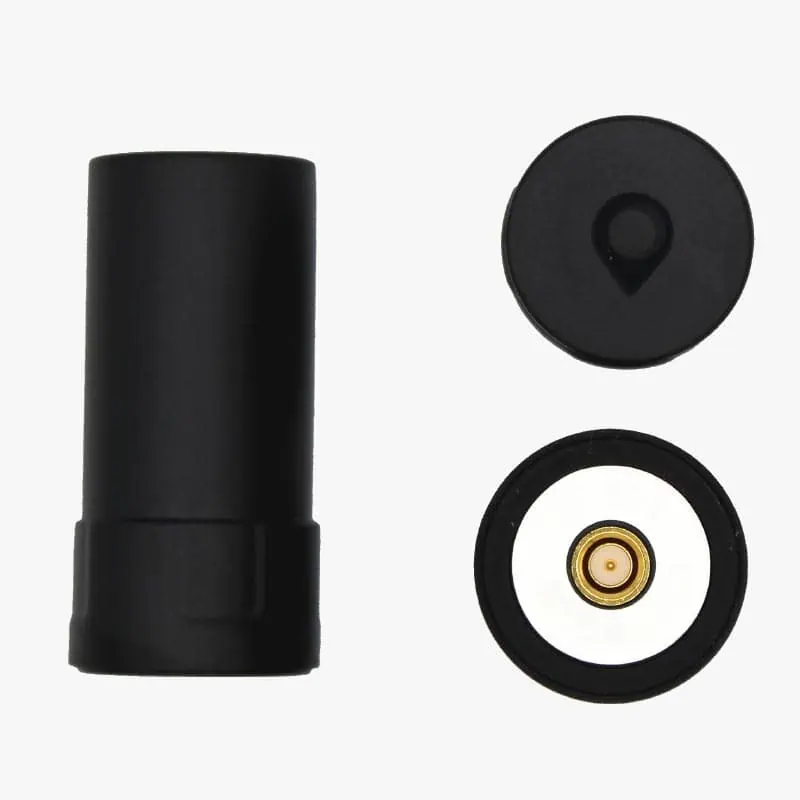

 Helical |

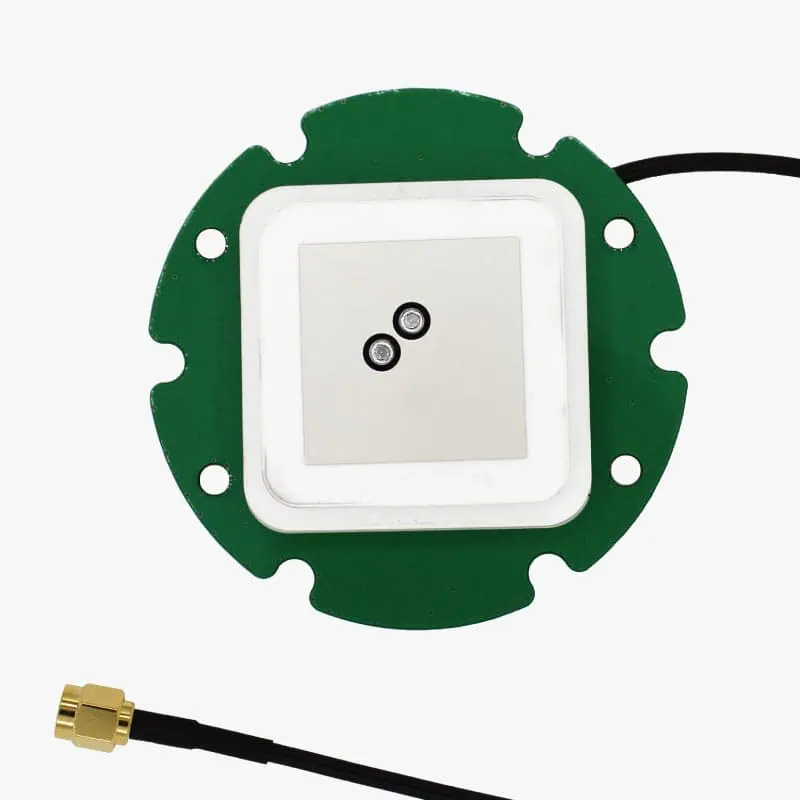

 OEM |

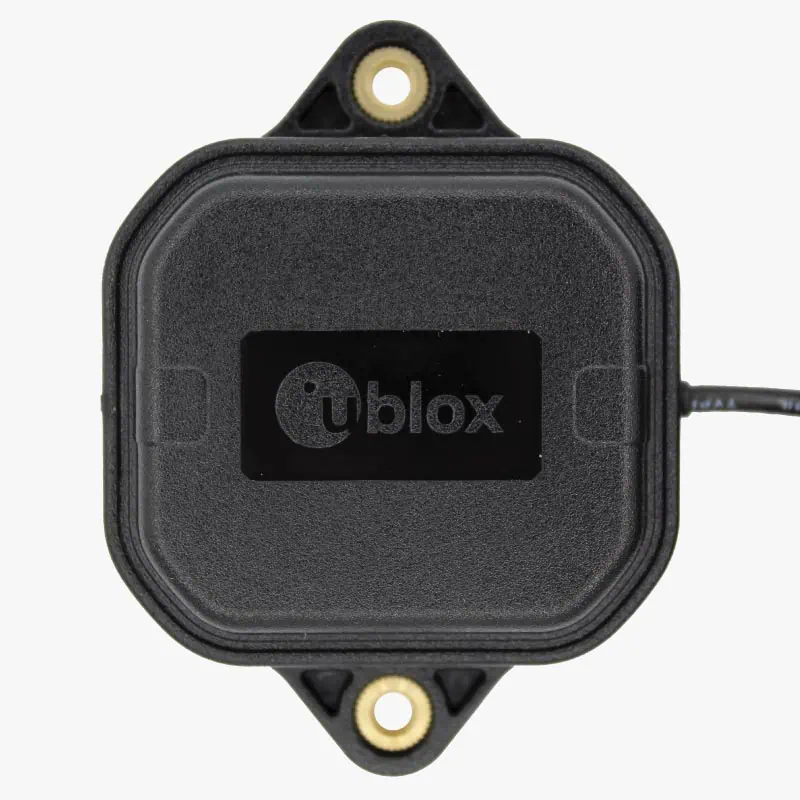

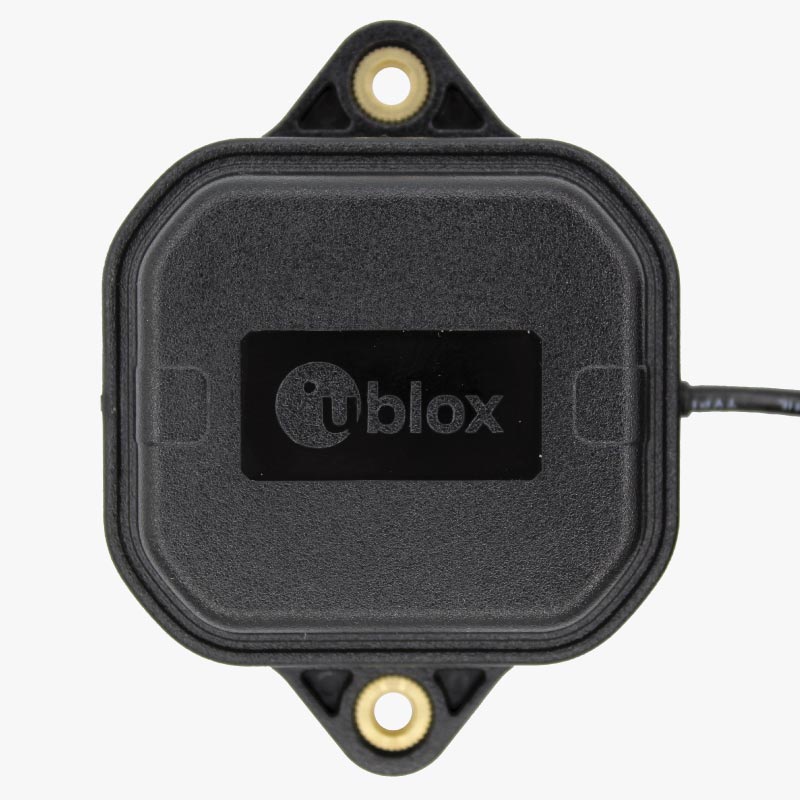

 ANN-MB |
|
| Max Length: | 152 mm | 147 mm | 56 mm | 76 mm | 82 mm |
| Weight: | 400 g | 390 g | 18 g | 78 g | 173 g |
| Power: | 3-12 V 50 mA typical @ 3V |
3-5.5 V 45 mA typical @ 3V |
3-16 V 35 mA typical @ 3V |
2.5-5.5V V 20 mA typical @ 3V |
3-5V 15 mA typical @ 3V |
| Signals: | GPS: L1, L2 GLONASS: G1, G2 BeiDou: B1, B2 Galileo: E1, E5b QZSS: L1, L2 SBAS: WAAS, EGNOS, MSAS and GAGAN |
||||
| Average LNA Gain: | 40 dB | 40 dB | 33 dB | 25 dB | 28 dB |
