Mobile Platform Autonomous Take-off/landing/Following Module
The mobile base system realizes precise automatic takeoff, automatic following and automatic landing of unmanned aircraft on mobile platforms. Autonomous take-off/landing/following is accurately achieved through the combination of ground base station positioning technology and aerial vision guidance technology.

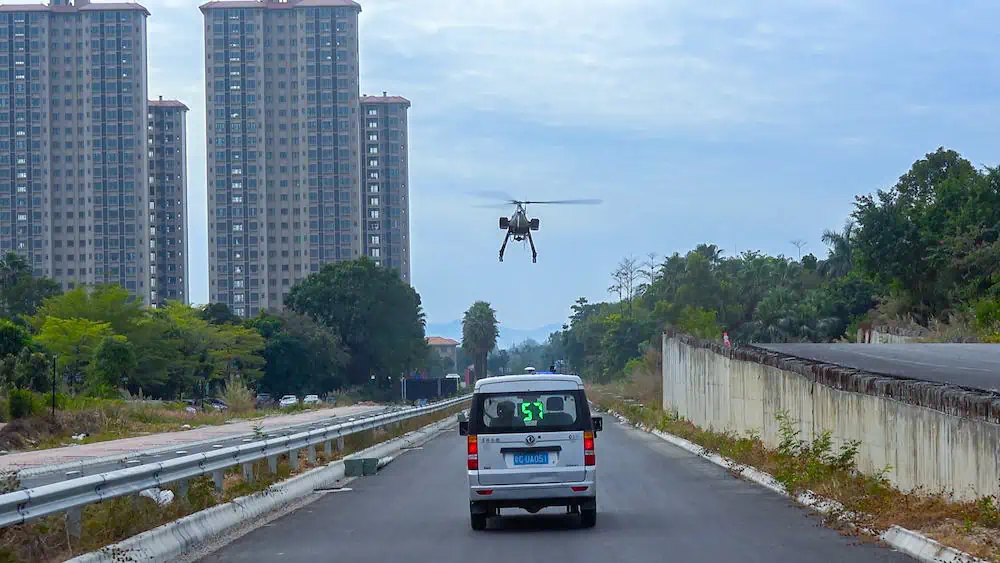

Autonomously take-off/land/follow unmanned aircraft from ground vehicles or sea vessels effortlessly. The system effectively solves the difficulty of unmanned aircrafts not being able to take-off/land accurately on mobile platforms such as moving vehicles and ships, and greatly expands the application of unmanned aerial system.
Specifications
| Dimensions | 1500*1500mm |
| Maximum Vehicle Speed | Take-off phase: 70km/h (38kn) Landing phase: 60km/h (32kn) Auto follow phase: >80km/h (43kn) |
| Max Communication Distance | 30km |
| Mobile Landing Accuracy | 0.6m |
| Night Time Deployment | Support |
| Horizontal Field of View (visual) | 45° |
| Vertical Field of View (visual) | 40° |
| Maximum Recognition Distance (visual, point to point) | 40m |
| Operating Voltage | 5V |
| IR Receiver Battery | 4h |
