Industrial and Military-Grade High-Performance Electric Unmanned Helicopters & Avionics

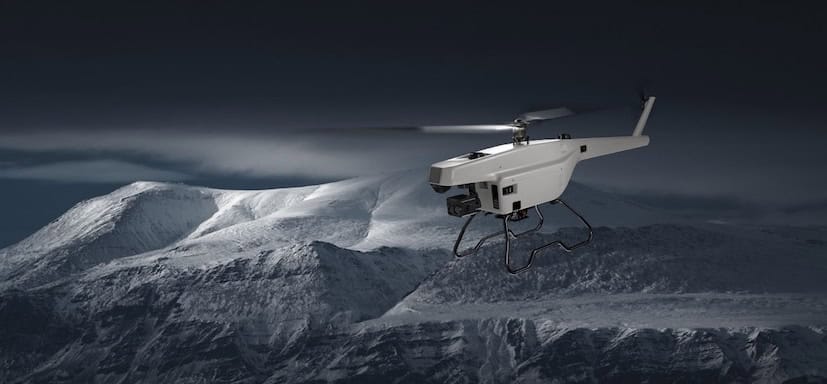

Ranger P2-X Unmanned Helicopter

Long-Range BVR Reconnaissance Drone

The Ranger P2-X is a BVR (beyond visual range) long-endurance unmanned helicopter drone that features a modular quick-disassembly design, allowing the aircraft to be broken down into four modules and packed into a bag for easy transport. With a flight endurance of up to 2 hours, an operational range of 100km and a data transmission range of up to 30km, it is ideal for a wide range of surveillance and mapping applications.

Blowfish A2 Heavy-Lift VTOL UAV

Multi-mission Unmanned Helicopter

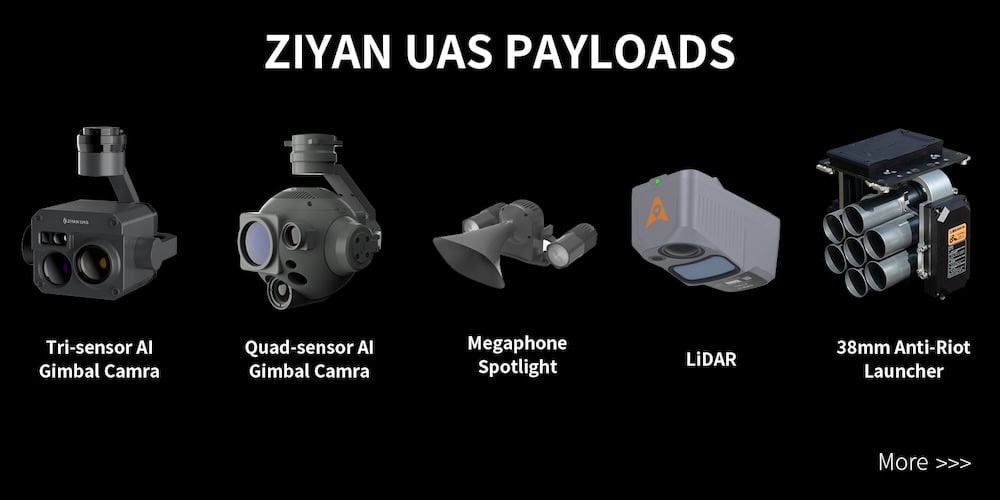

The Blowfish A2 is a versatile multi-mission unmanned helicopter with a 15kg lift capacity and open payload cabin design, allowing the system to be fitted with a wide variety of payloads such as EO/IR cameras, LiDAR scanners and weapons systems.

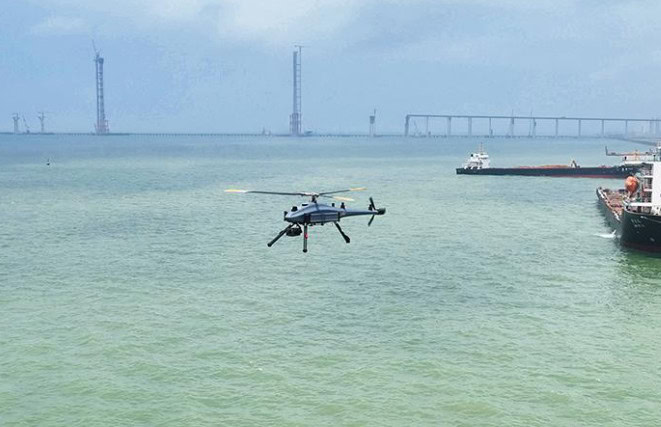

With a high wind resistance and the ability to take off and land in a very small space, the Blowfish A2 is an ideal maritime ISR platform. It can be equipped with an AIS (automatic ship identification) transceiver and has a wider coverage area than patrol vessels. The aircraft also supports long-range HD video links and 4G communications modules for real-time image transmission.

Specifications:

Featuring real-time monitoring and a dual redundant flight control system, the Blowfish A2 is a safe and highly efficient solution for a variety of industrial and military applications.

Learn more: Blowfish A2 Heavy-Lift VTOL UAV

Blowfish A3 VTOL UAV

Reconnaissance & Tactical Strike Unmanned Helicopter Drone

The new defence version Blowfish A3 is a highly manoeuvrable VTOL UAV with small-radius in-flight movement capabilities comparable to manned helicopters. With automatic takeoff and landing and easy, convenient operation, the aircraft can be fully programmed and launched with just a few clicks. The platform uses AI-based reconnaissance to detect identify and track moving targets.

Specifications:

The unmanned helicopter can take advantage of Ziyan’s distributed intelligence technology to fly in swarms, maintaining formation and automatically avoiding obstacles even if the connection with the ground control station is lost. It can be equipped with a wide variety of payloads for both defensive and offensive applications.

Contact us to learn more about Blowfish A3 VTOL UAV

Moth F1 Electric Quadcopter

Quadcopter drone for Intelligent Swarming

The Moth F1 is a lightweight, compact electric quadcopter UAV that can be folded for easy transport. The versatile, easy-to-use system features a flight radius of 5km, a cruising speed range of 20-40km/h and a maximum speed of 75km/h.

Easily carried by an individual soldier, the aircraft can be used singularly or in co-ordinated swarm formation for a variety of battlefield roles such as intelligence gathering, situational awareness and tactical deception.

Contact us to learn more about the Moth F1 Electric Quadcopter

Watch to learn more about Ziyan’s Unmanned Aerial Drones:

Additional UAV Features:

Intelligent Drone Swarm

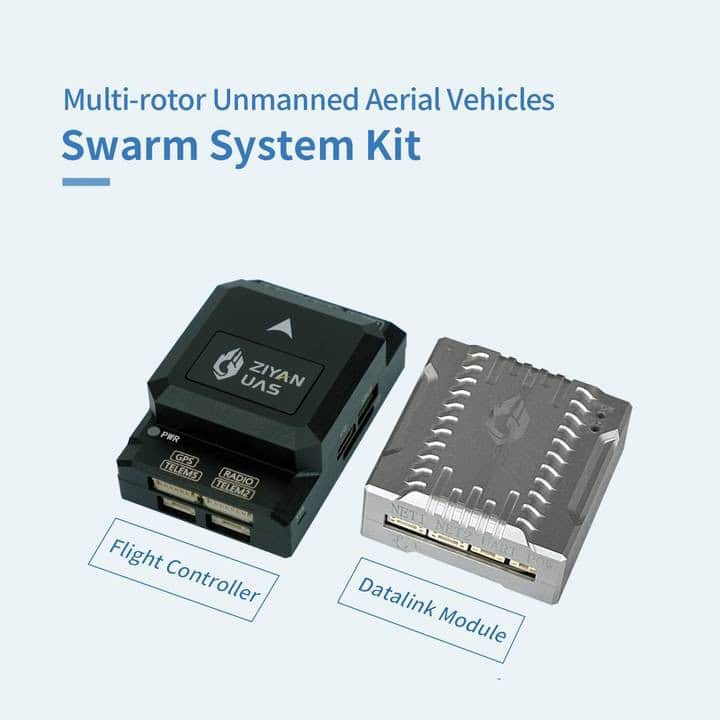

Our Intelligent Drone Swarming module with mobile adhoc networking (MANET) capabilities, allows up to 64 UAVs to be linked together over a distance of up to 20km, with up to 8 nodes capable of image transmission.

The networked drones fully communicate with each other, employing automatic formation maintenance and obstacle avoidance. The intelligent MANET capabilities allow the network to self -heal and self-organise even when nodes are damaged.

Contact Ziyan to learn more about the Drone Swarming Module.

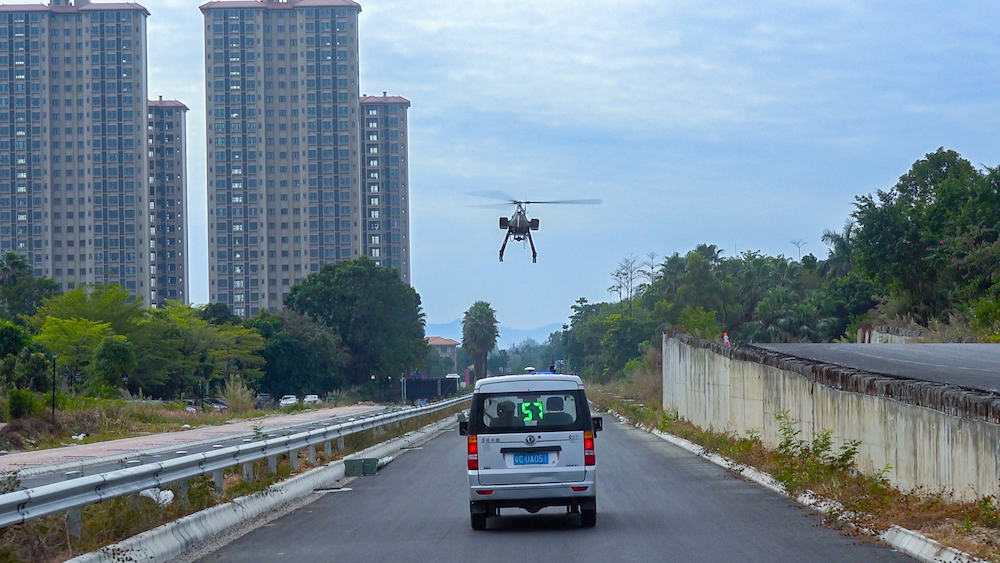

Mobile Platform Take-off & Landing and Auto-Follow

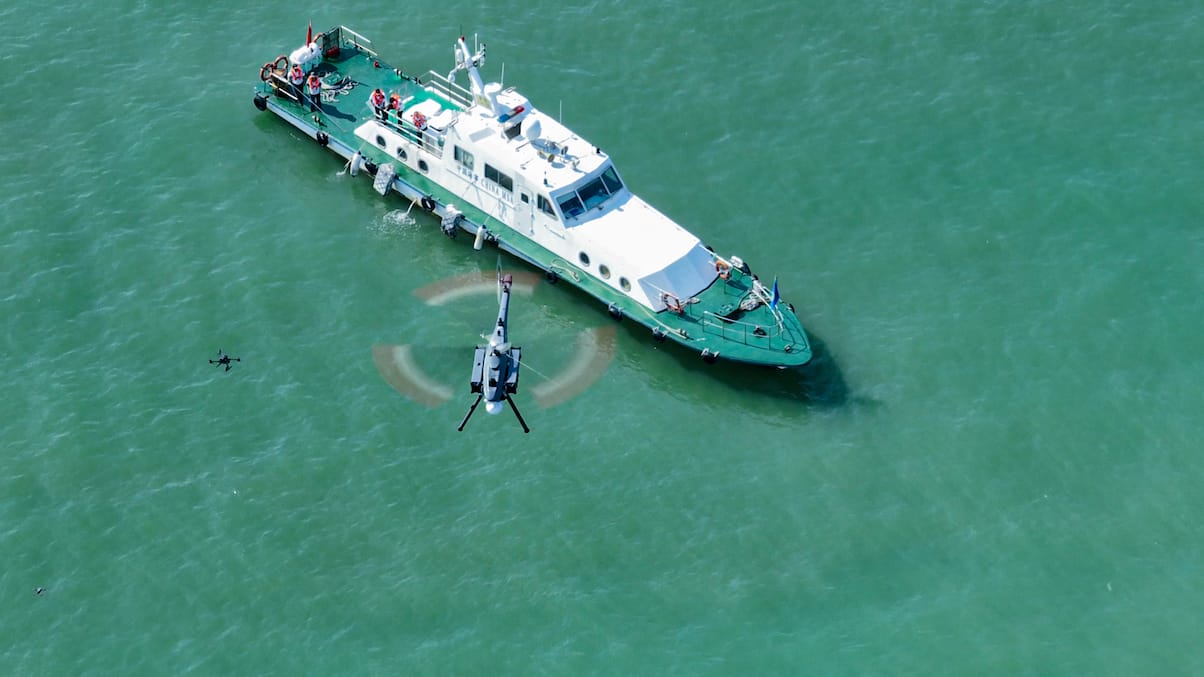

Ziyan provides an advanced system that allows UAVs to take off from and land on high-speed moving platforms within a space of only 1.5m², as well as automatically follow moving vehicles and vessels. The system is ideal for maritime operations as well as shipborne and vehicle-integrated drones.

The system provides the following capabilities:

• Takeoff from moving vehicles at maximum speeds of over 40 km/h
• Automatic following of moving vehicles at maximum speeds of over 80 km/h
• Autonomous landing on platforms at maximum speeds of over 60 km/h

Contact Ziyan to learn more about the Mobile Platform Take-off & Landing system.

Tethered Drone System

Ziyan’s Tethered Drone System allows unmanned aircraft to provide persistent surveillance and communications facilities 24 hours a day for public security, emergency services, military units and more. It features automatic takeoff, automatic voltage compensation and a variety of other features.

• Cable Length: 110m
• Cable Tensile Strength: 50 kg
• Input Voltage: 220 VAC
• Output Voltage: default 380-430 VDC, max 450VDC
• Output Power: 4 kW (7 kW option available).

Contact Ziyan to learn more about the Tethered Drone System.

• Law Enforcement

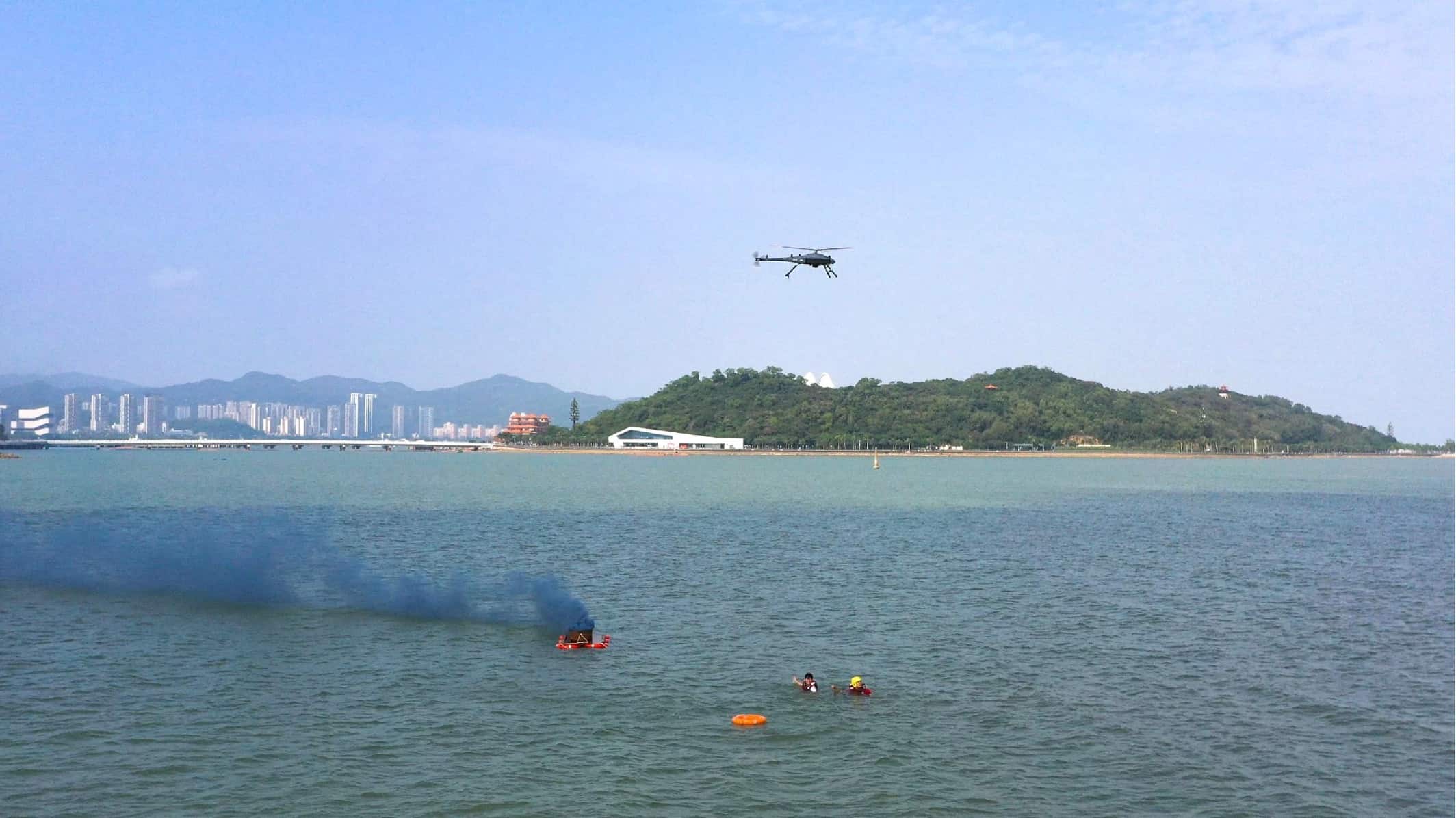

• Search & Rescue
• Coastal/Ports Patrol

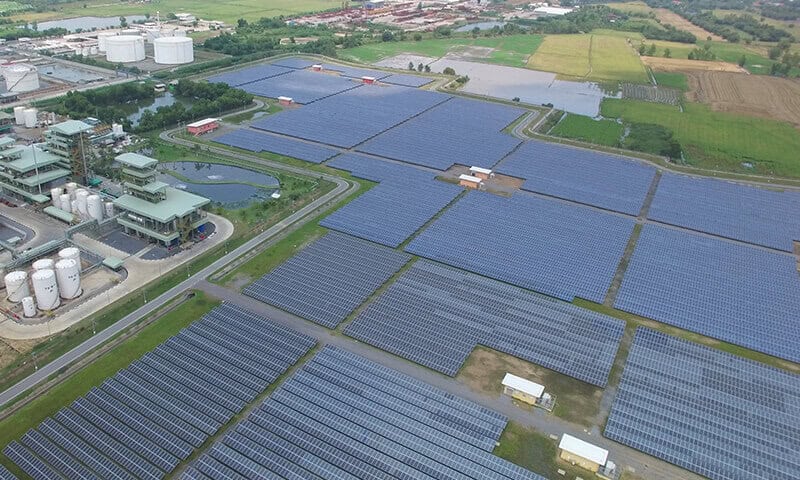

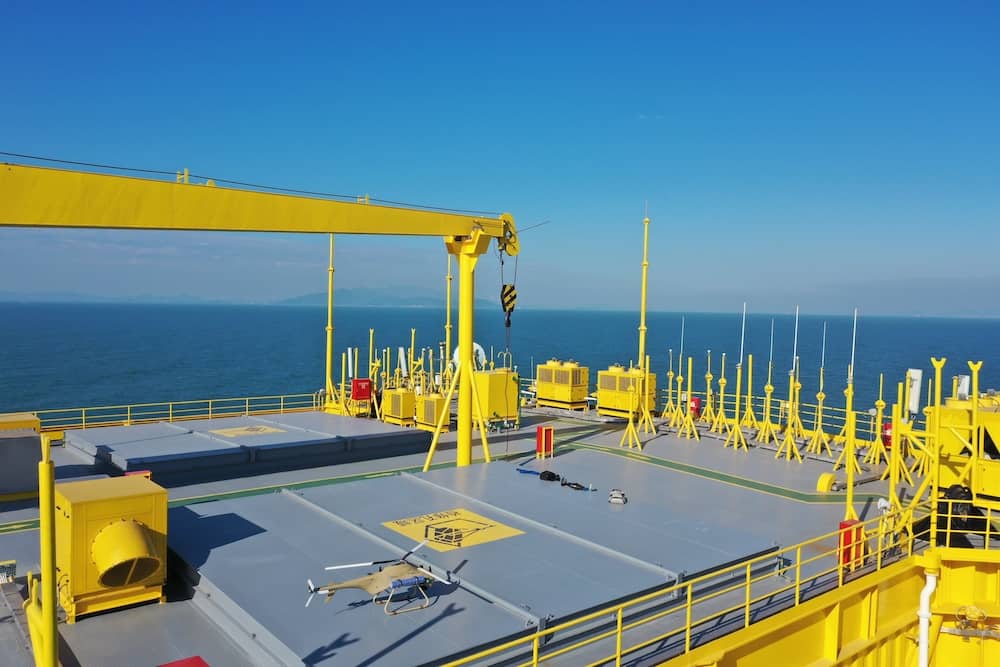

• Infrastructure Inspection
• Surveying & Mapping
• Forest prevention

• Surveillance & Reconnaissance
• Tactical Support Strike
• Communication Relay

• Electronic Warfare

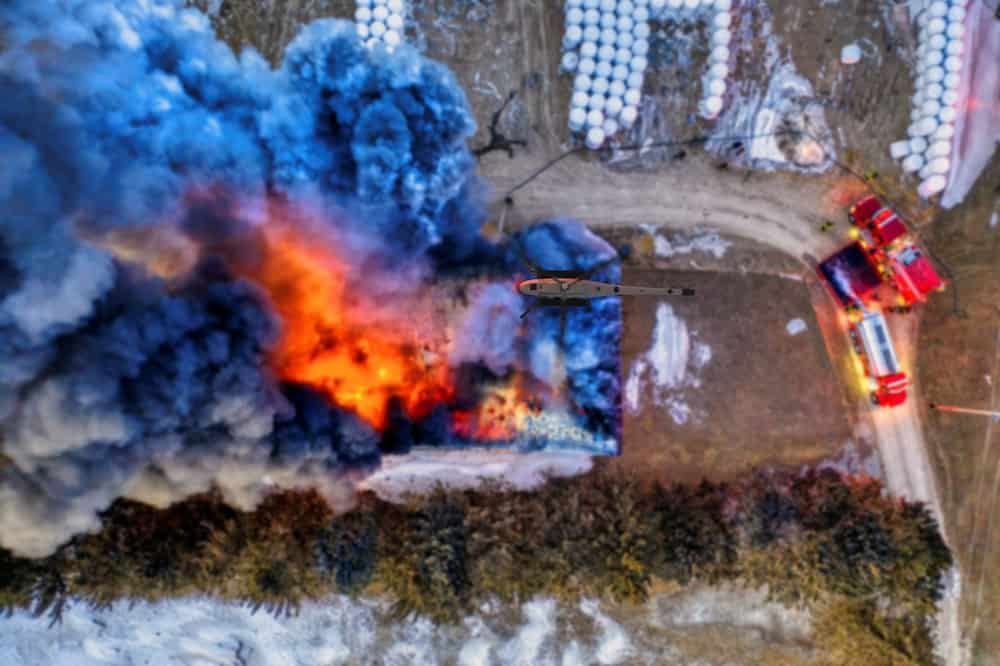

• Emergency Logistics

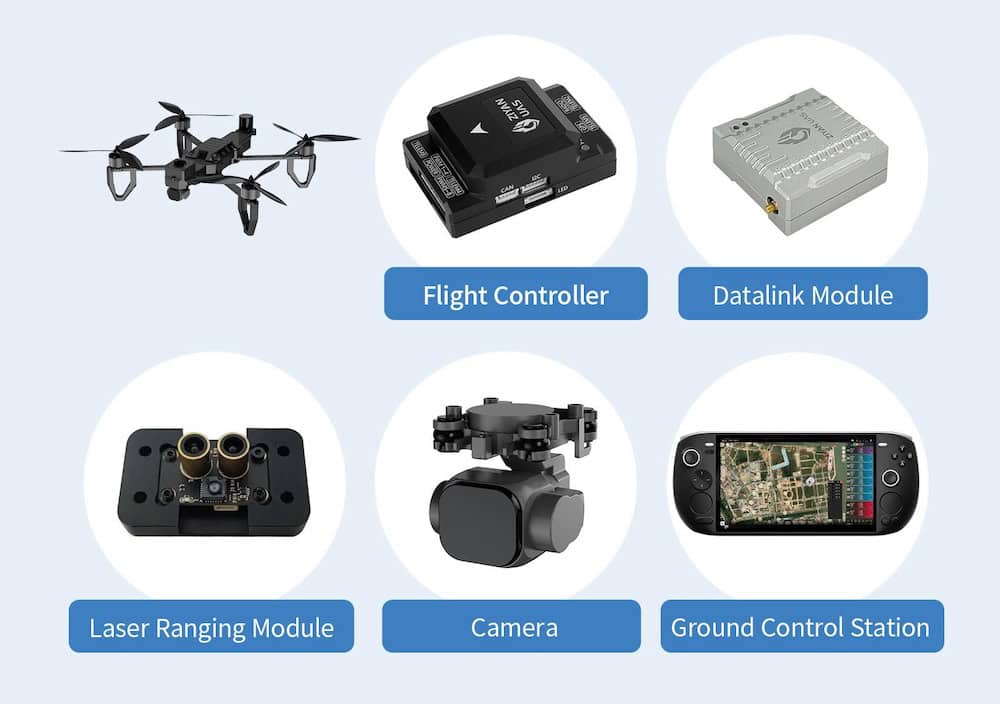

Avionics & Accessories

Ziyan’s UAV avionics and flight control systems are built to industrial and military-grade specifications, featuring a modular design and universal interfaces. They are compatible with a wide range of unmanned aircraft, ground control stations and control software.

UAV Flight Control System

Ziyan’s UAV Flight Control System is built around a high-precision six-axis inertial measurement unit with a gyroscope range of up to ±2000 °/ sec and acceleration measurement of ±40g, with very low temperature drift.

The modular system features a double redundant power input, aviation-grade connector, RS232 serial communications and high resistance to interference.

Contact Ziyan to learn more about the UAV Flight Control System.

Integrated Video/Data Transmission Module

Ziyan’s Video and Data Transmission Module can support up to 10 UAVs at the same time, and also allows control and monitoring on a drone from multiple ground stations. It features flexible frequency ranges of 826 – 846MHz for data and 1380 – 1480MHz for video.

Contact Ziyan to learn more about the Video and Data Transmission Module.

Fire Control System

The Fire Control System provides rapid integration of military UAS payloads such as weapons systems, cargo delivery mechanisms and more. The versatile system is ideal for rapid prototyping of hardware and software for new UAS designs and applications.

Contact Ziyan to learn more about the Fire Control System.
