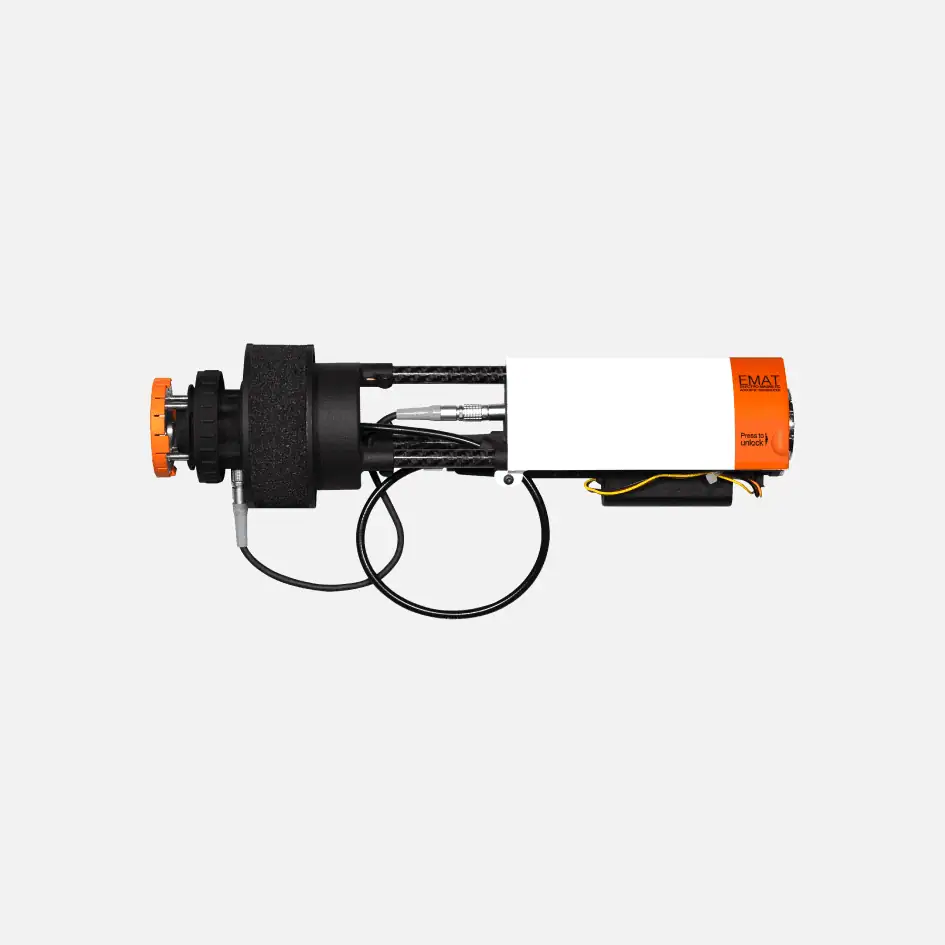

EMAT Payload
The EMAT (electromagnetic acoustic transducer) thickness gauge payload for the Voliro T UAS is ideal for conducting wall thickness measurements on corroded and dirty surfaces. Compliant with ASTM E1816, it is suitable for a wide range of use cases, including:
- Stacks and chimneys
- Storage tanks (outside and inside)
- Silos
- Piping
- Boilers
- Cement kilns
- Scrubbers
- Conveyor belts
- Transmission towers
- Preheaters
Specifications:
| Length: | 33 cm (13”) |
| Weight: | 0.67 kg (1.48 lbs) |
| Test Modes: | Peak-to-peak, single peak |
| Detection Modes: | Peak |
| Operating Frequency: | 3.5 – 4 MHz |
| Resolution: | 0.06 cm (0.002”) |
| Thickness Range: | 2 – 150 mm (0.08 – 5.9”) |
| Max Lift-off: | 4mm (0.16”) |
| Min Surface Diameter: | 5 mm (0.2”) |
