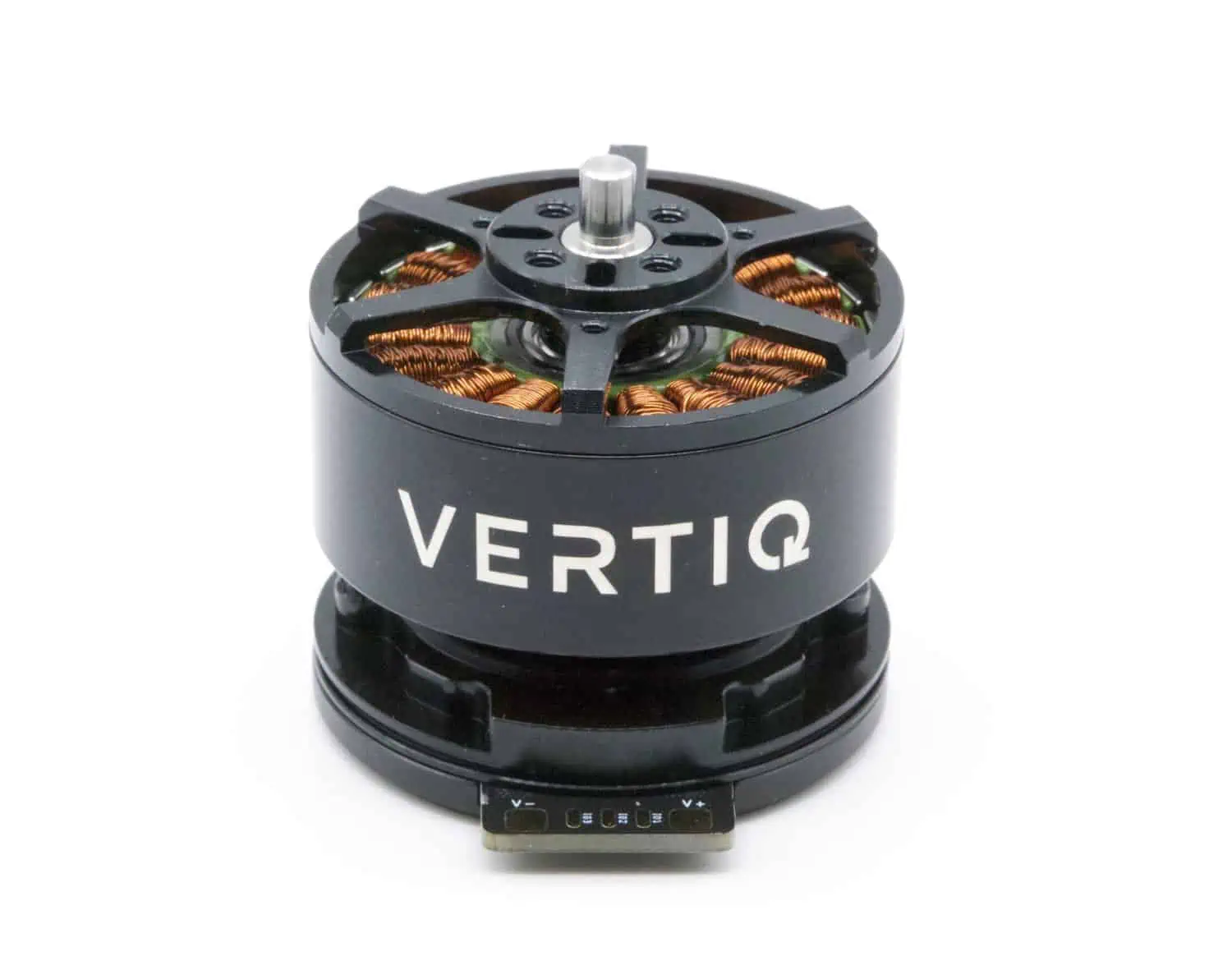

40-14 Motor & ESC Module

The 40-14 is an advanced drone propulsion solution that combines and tightly integrates a high-performance motor with a 60A 12S ESC and an embedded position sensor. Incorporating sophisticated position sensing and advanced field estimated control algorithms for best-in-class efficiency, this module is designed to provide the highest levels of propulsion performance and reliability for industrial sUAS.

The versatile modular design of the 40-14 allows users to customize a number of factors, including IP rating, vehicle integration, LEDs, and more. It is compatible with a variety of communication protocols, including DroneCAN, standard PWM, and serial, and with the Ardupilot, PX4 and Betaflight flight controllers. The module is available with a 400Kv rating.

Specifications:

Dimensions (D x H) Module 44.35 mm x 38.76 mm to prop face/44.56 mm to top of pin Stator 39.0 x 14.0 mm
Weight 158 g
Voltage 25.2 (6S)
Continuous Motor Current 21A in airflow
Continuous Torque 0.5 Nm in airflow
