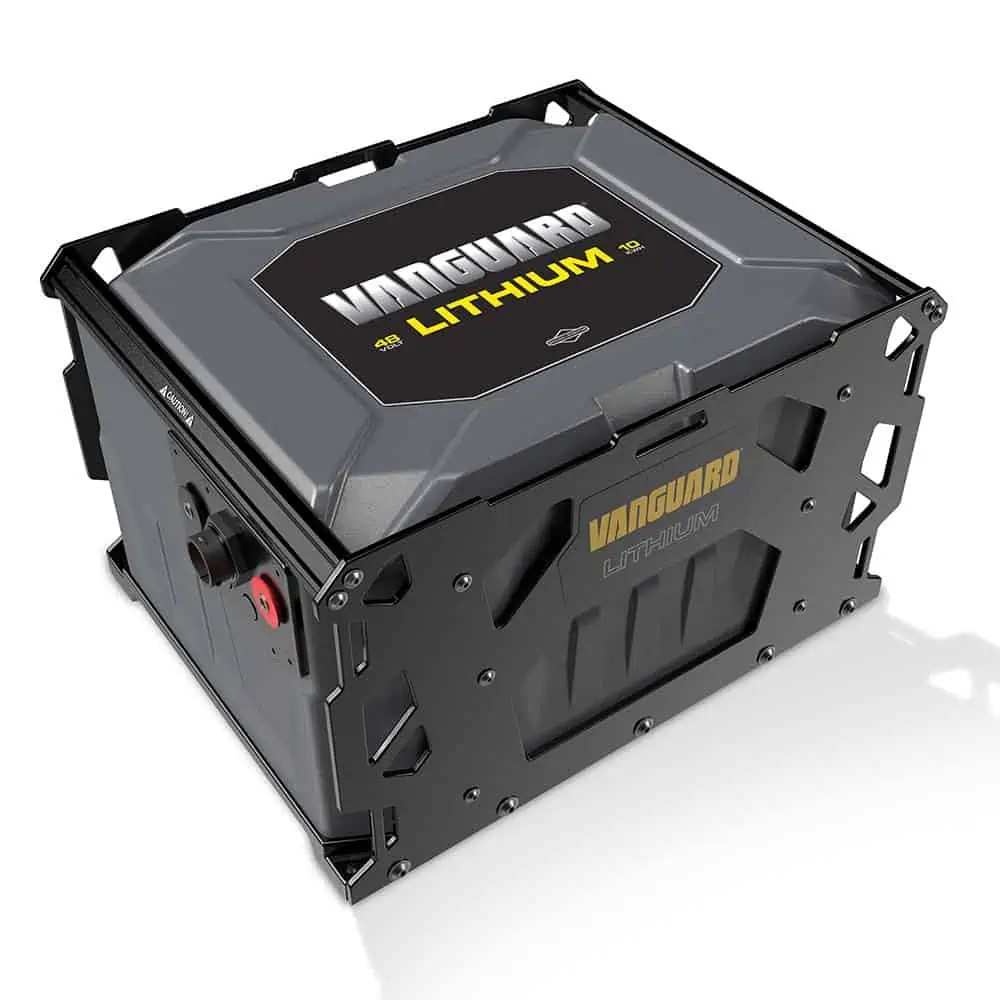

The Vanguard 10 kWh Commercial Battery with integrated Battery Management System (BMS) is designed to power a wide range of commercial and military UAV, UGV, USV and UUV platforms, providing efficient power and performance. The CANbus-controlled Vanguard charger provides safe charging with the Vanguard special charge profile.
Durability
Aluminium Diecast enclosure for ultimate protection from wear and tear.
Increased Uptime
Designed for a life of up to 2,000 cycles with no scheduled maintenance needs. All major components are serviceable and components and modules can be replaced rather than having to replace the entire battery.
Operational Confidence
The in-house designed Battery Management System monitors voltage and temperature throughout the pack and ensures the battery stays in efficient, safe operation.
Easy Integration
Two CANbus networks integrate with OEM legacy systems. The first is SAE J1939 standard, and the second is adaptable to customer requirements. A prequalified and plug-in ready charging system can be mounted on or off-board.
Easy Troubleshooting
Via standard CAN bus diagnostic protocols. The indivdual modules can be replaced and major components are serviceable.
Global Warranty Coverage
Three year limited commercial warranty.
| Dimensions | 56 x 47 x 36 cm |
| Weight | 90kg |
| Nominal Capacity | 197.4Ah / 10.17kWh |
| Charge Time | < 12 hrs |
| Durability Cycles | Up to 2000 to 80% initial capacity |
| Charging Temperature Range | 0° to +50°C |
| Discharging Temperature Range | -20° to +60°C |
| Communications Protocols | J1939 (29-bit) | Flexible secondary CAN interface |
