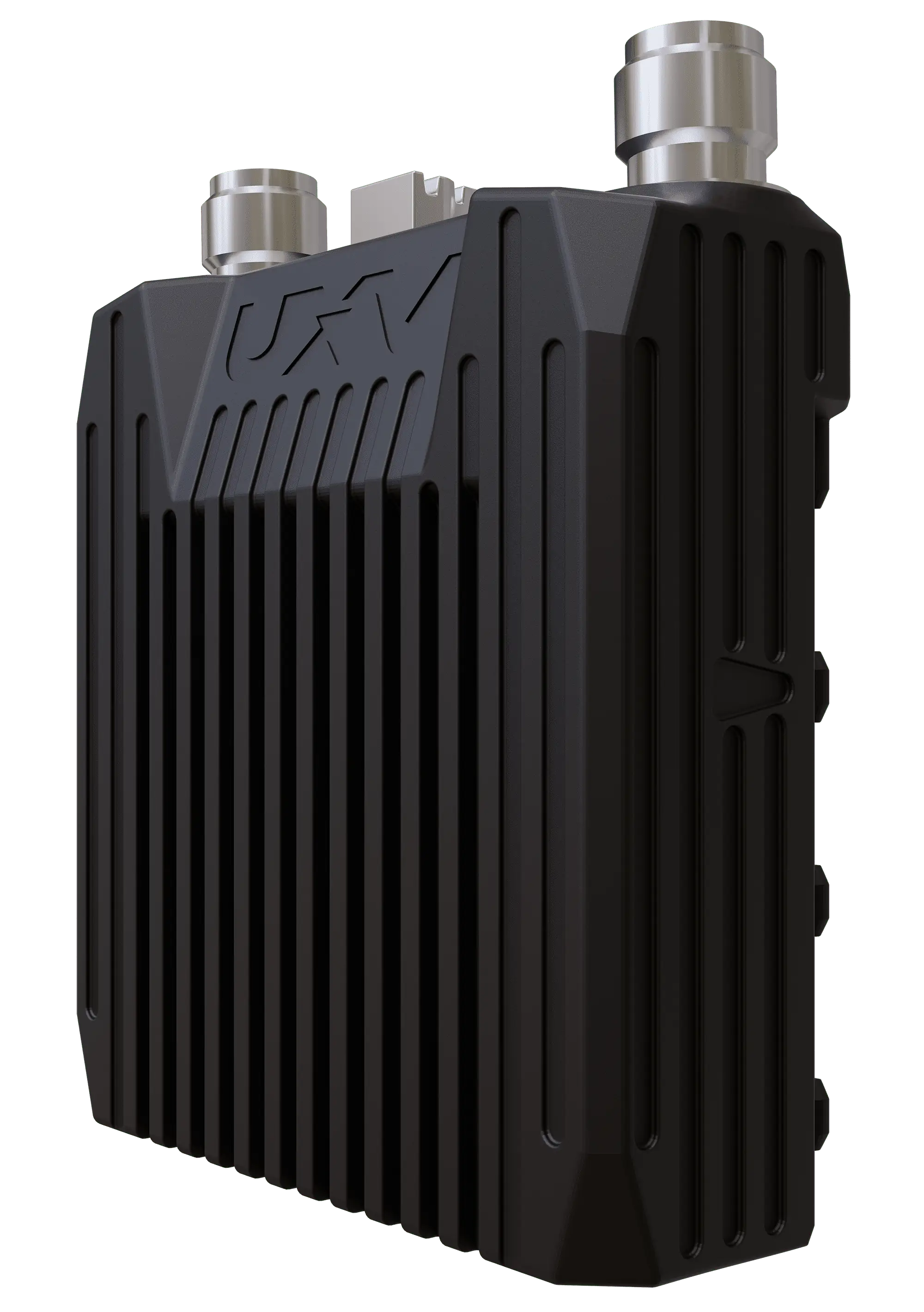

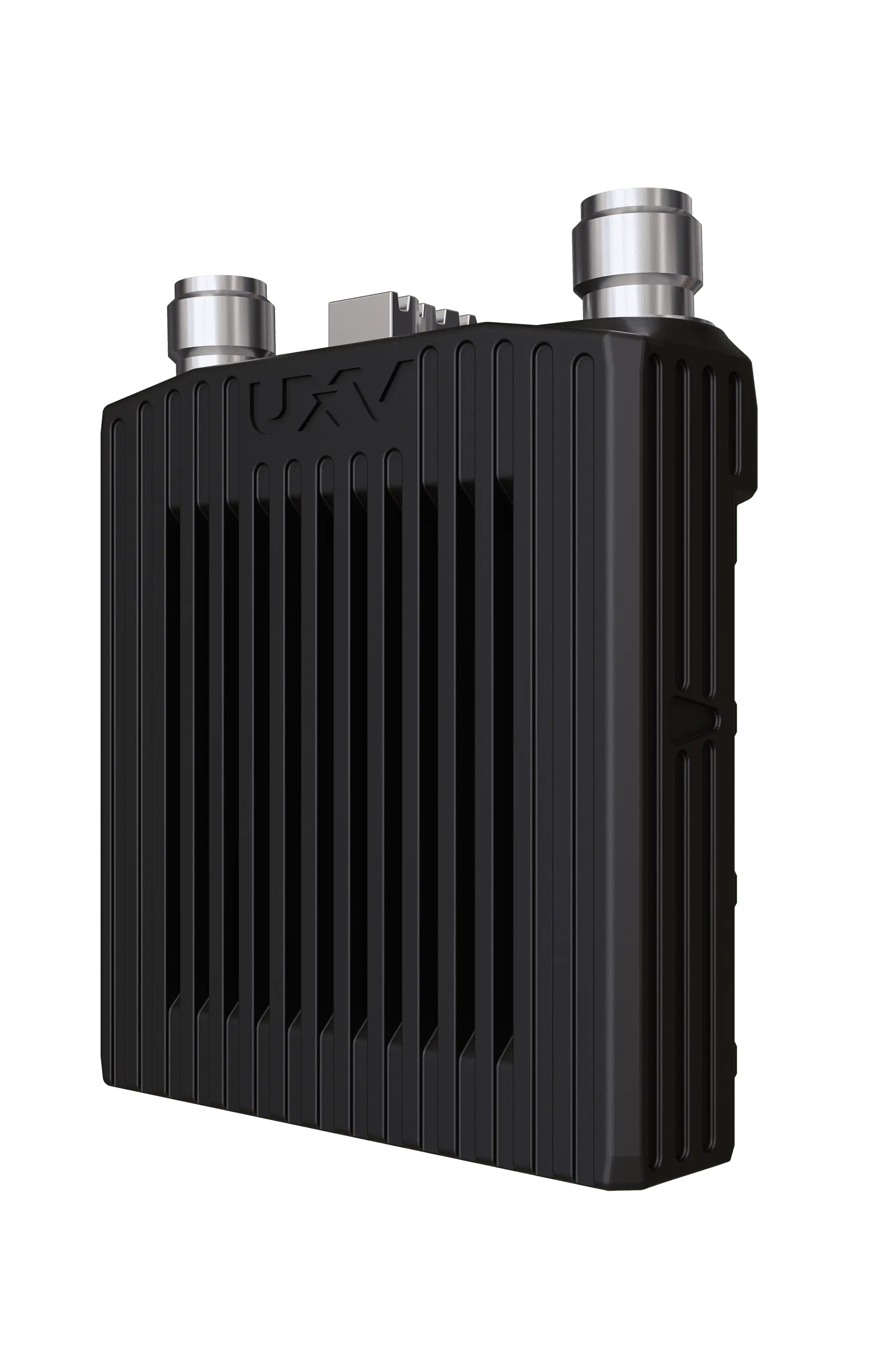

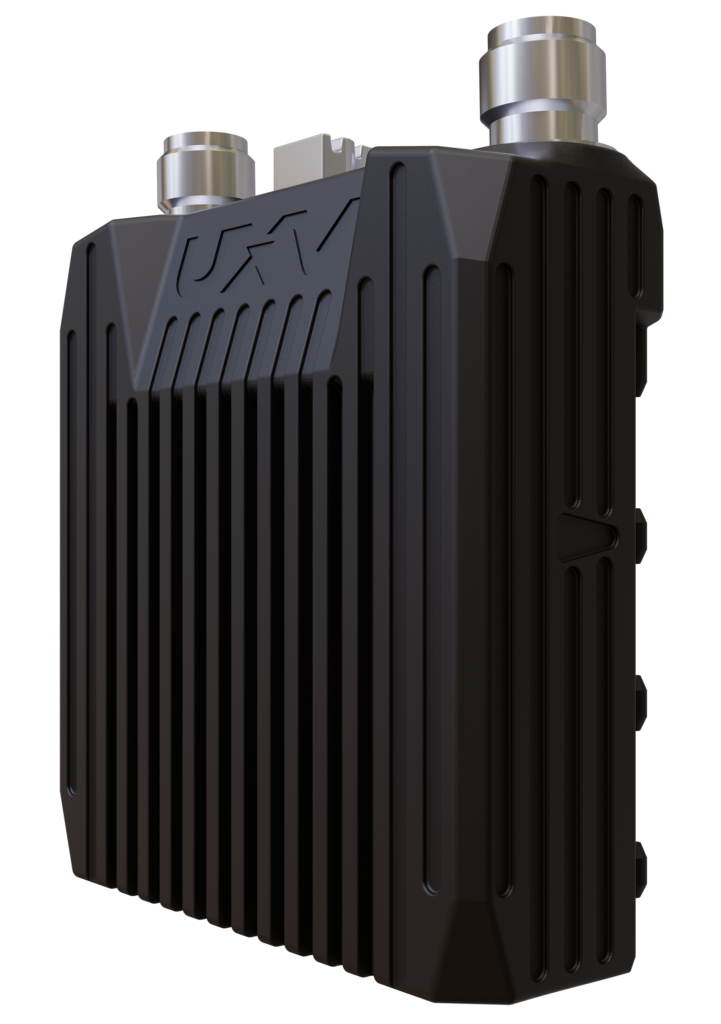

Swappable Radio Modules

UXV Technologies’ swappable radio modules are designed to provide versatile communications for UAV and unmanned vehicle ground control systems. The rugged MIL-STD-810 and IP68-rated modules are a US government standard for defense robotics.

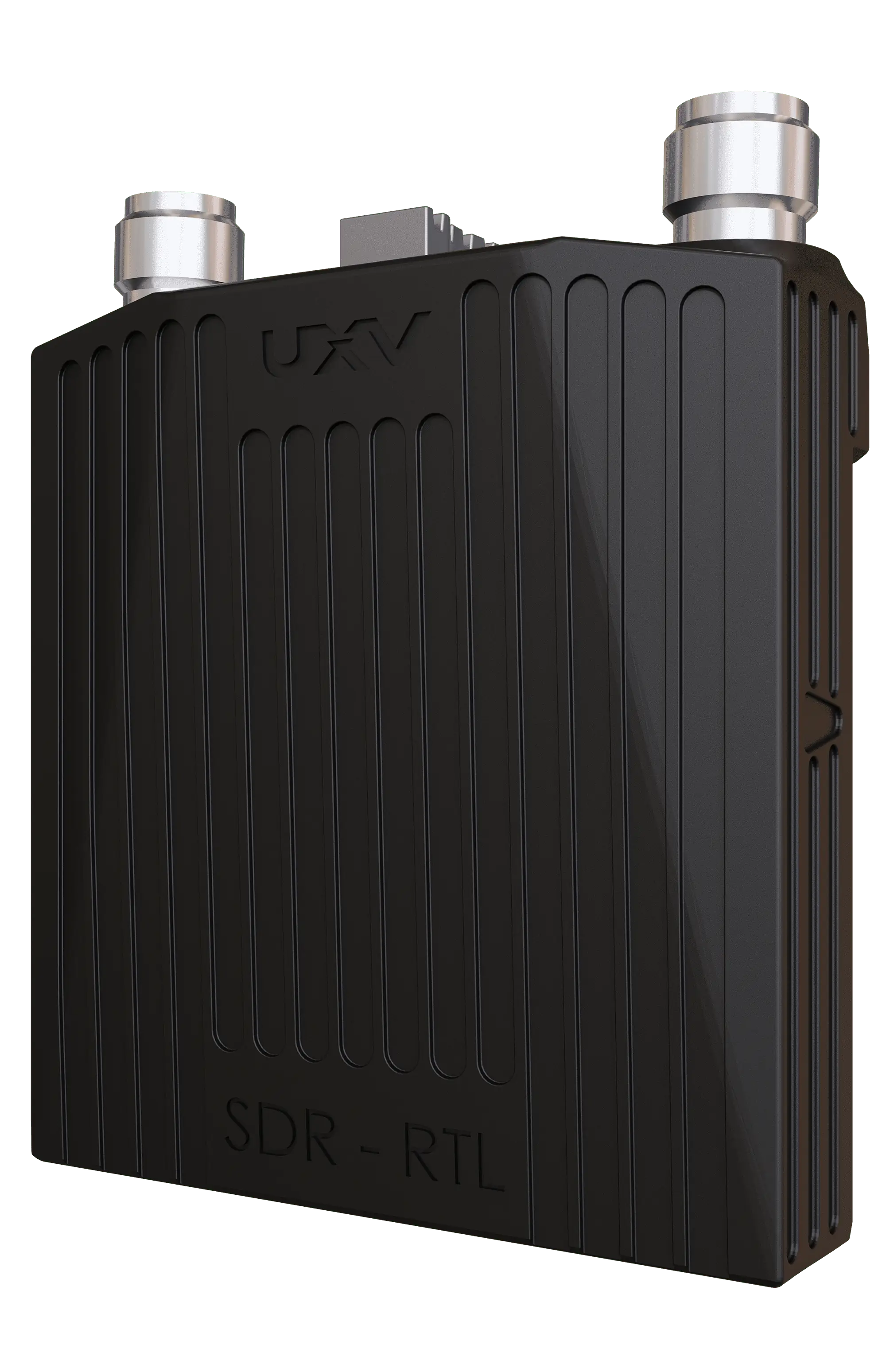

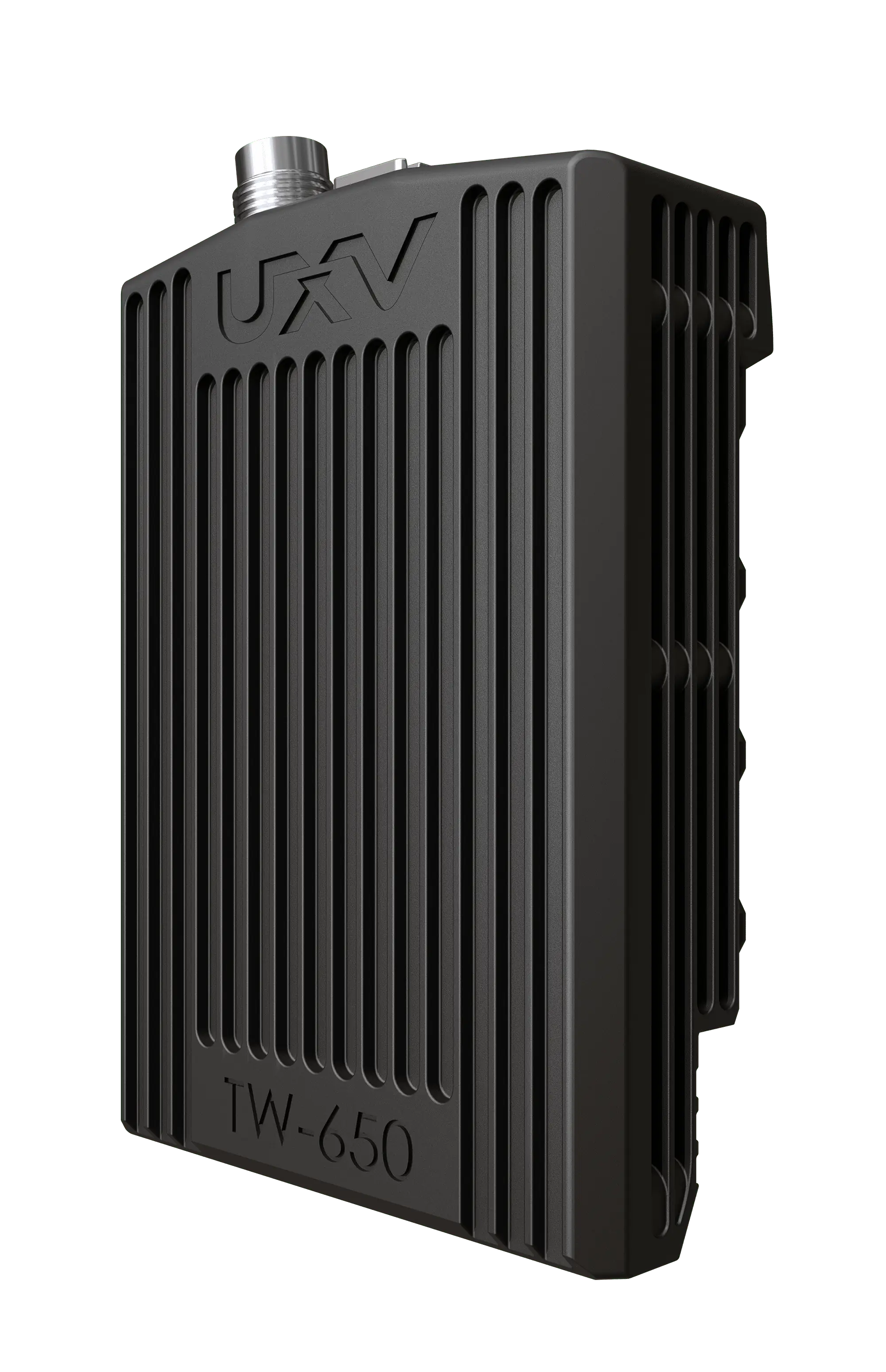

With over 25 different options incorporating radios from leading providers such as Microhard, Doodle Labs, SDR-RTL and Trellisware, the SRM series provides a highly flexible communications capability with a single common interface. The low-SWaP modules use less than 15W, and are powered entirely from the internal GCS batteries.

Dimensions (W x H x D): From 67 x 81 x 22 mm (2.64 x 3.19 x 0.87 in)
Weight: From 120g (0.26 lbs)
Input Voltage Range: 5.5 – 20 VDC
Power Consumption: 3A & 15W max
Interfaces: Up to 2 x TNC connectors
1 x SRM
1 x SD card slot
