Pneumatic Catapult Launching System GLS-1A

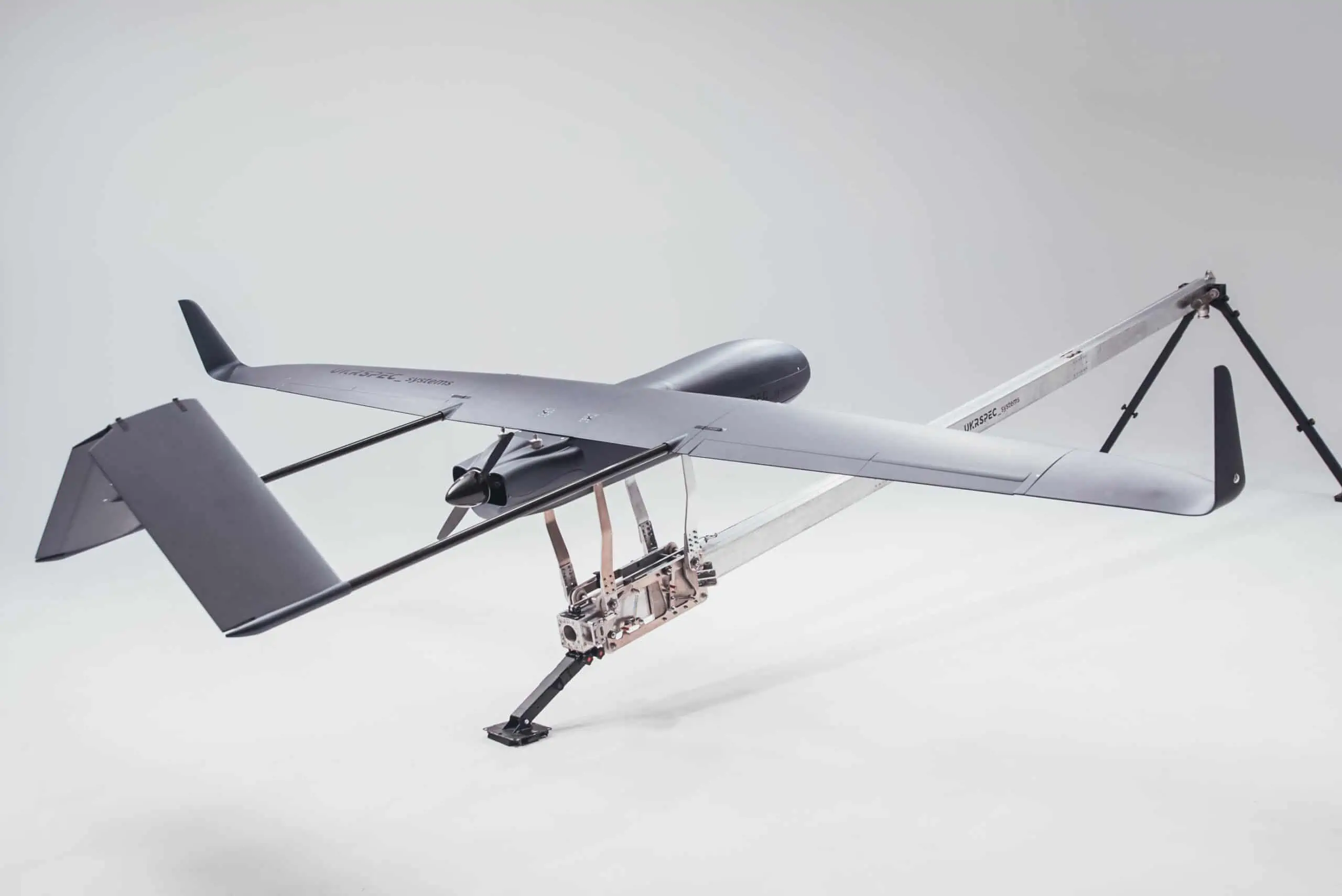

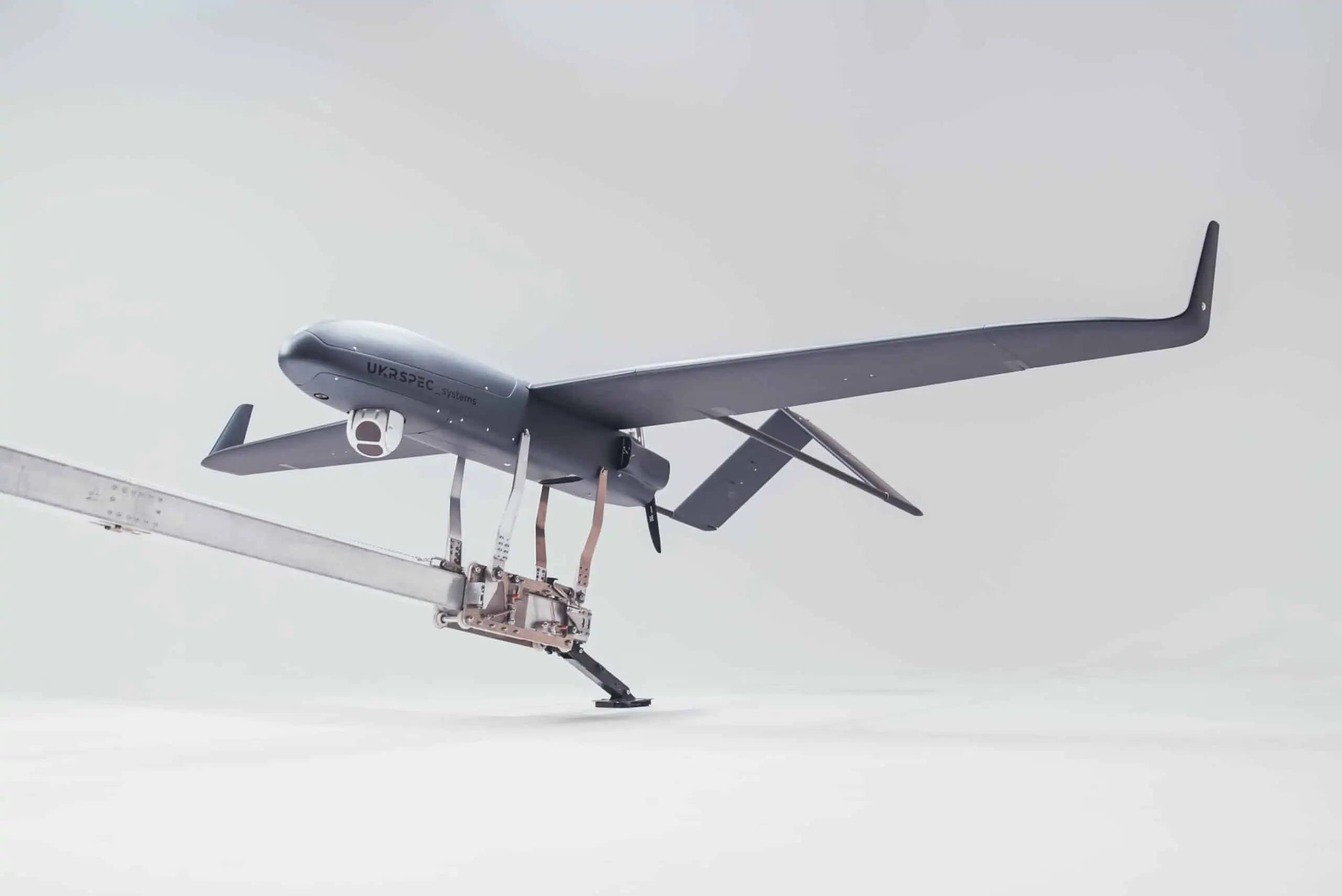

Pneumatic catapult launching system GLS-1A is designed to launch unmanned aerial vehicles with a takeoff weight of up to 40 kg at a speed of 17 m/s (61 km/h). At the same time, the launch speed of a lighter UAV can be higher, up to 20 m/s (72 km/h).
The pneumatic catapult GLS-1A is capable of launching UAVs from limited areas with a ground covering, under various weather conditions, at any time of the day in the temperature range from -25° to +40° С. We offer a full training course to operate the pneumatic catapult launcher for all customers.
- 20 m/s (72 km/h) max. launch speed of a UAV
- Launches UAVs with a takeoff weight up to 40 kg
- Operates autonomously
- Able of operating under various weather conditions from -25 °C to +40 °C.
| Maximum weight of launched UAV: | 40 kg (@ 17 m/s) |
| Maximum launch speed: | 22 m/s |
| Weight (configured for surveys): | 28kg (minimum) 30 Kg (typical) |
| Range of ambient working temperatures: | -25°/+40°C |
| Launch angle range of the rail relative to the ground: | 10°-15° |
| Length (10° - 15°): | 5.3 - 5.4 m |
| Width (10° - 15°): | 1.6 - 2.3 m |
| Height (10° - 15°): | 1.2 - 1.6 m |
| Launcher overall weight: | 61 kg |
| Compressor station weight: | 88 kg |
