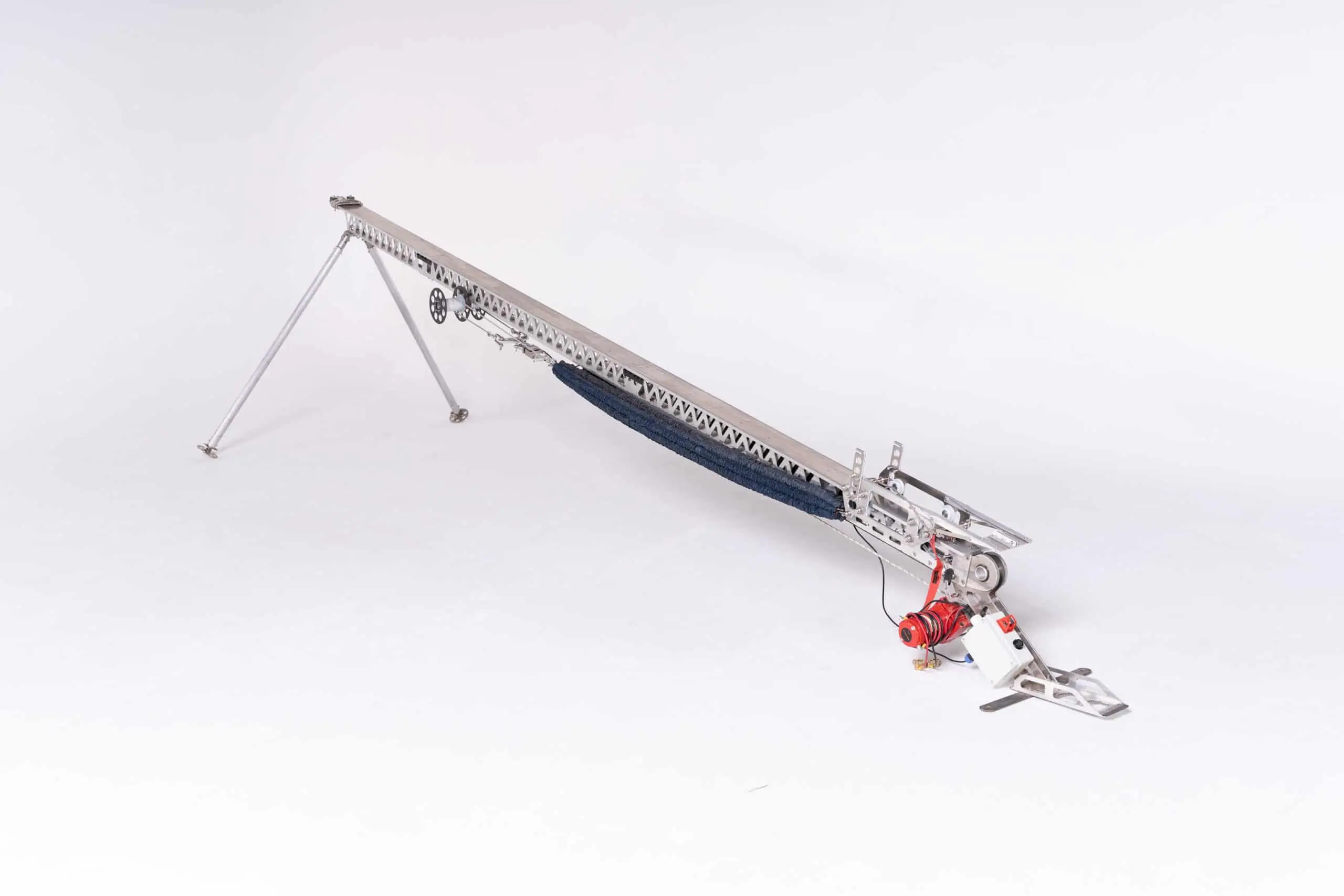

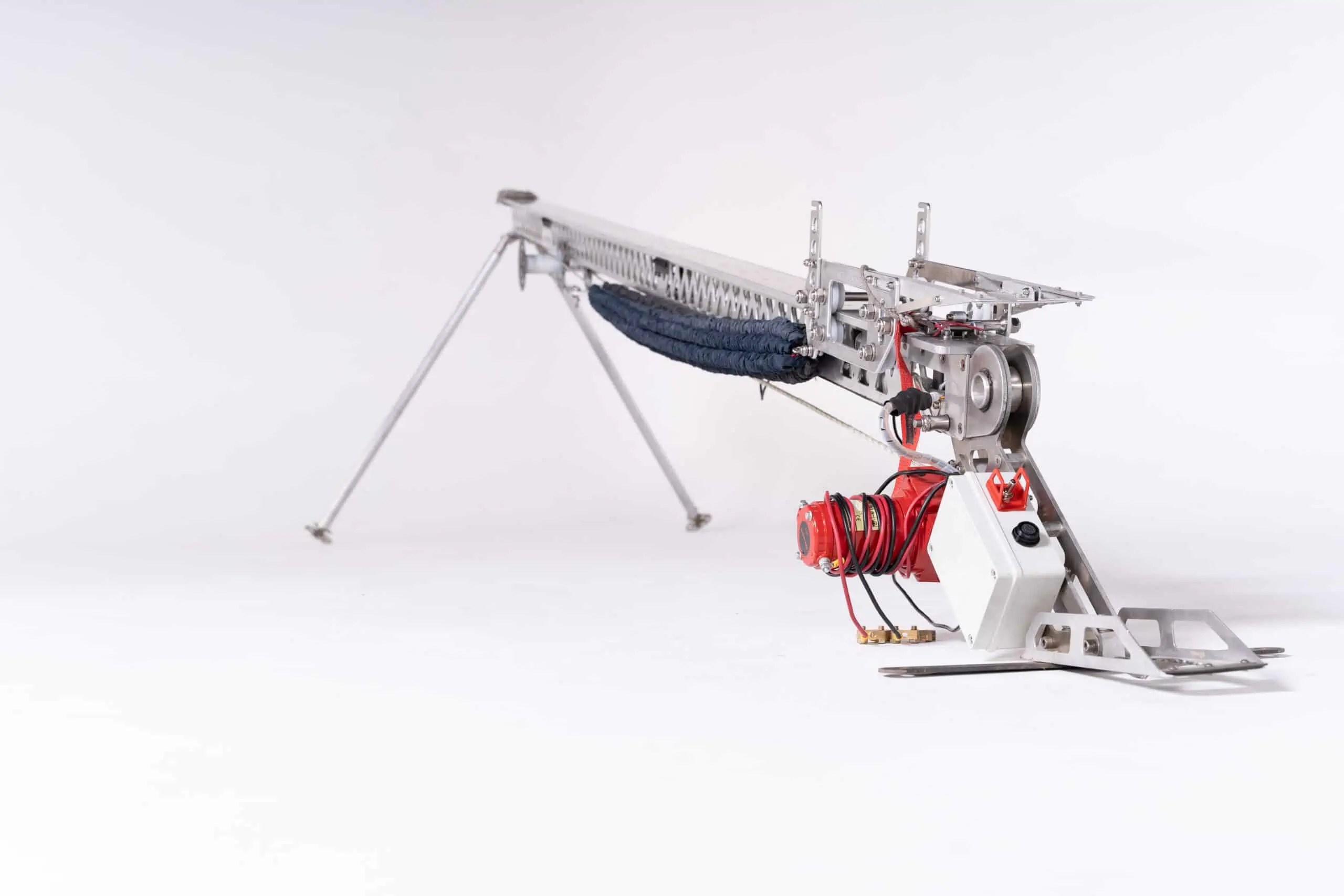

Bungee UAV Launching System SCL-1A

The SCL-1A bungee launching system is designed to launch unmanned aerial vehicles with a takeoff weight of up to 10 kg at a speed of 25 m/s (90 km/h). The catapult SCL-1A is capable of launching UAVs under various weather conditions and in the temperature range from -15° to +40°C. We offer a full training course to operate the bungee catapult launcher for all customers.

  • 25 m/s (75 km/h) maximum launch speed of the UAV
  • Launches UAVs with a takeoff weight up to 10 kg
  • Able of operating under various weather conditions from -15 °C to +40 °C.
  • 15 minutes deployment time
Maximum UAV weight 10 kg
Maximum launch speed 25 m/s
Launch angle 12°
Dimensions (Lx W x H) 3.85 x 1.43 x 1.2 m
Total system weight 60 kg
Maximum battery capacity 60 Ah
Maximum launches per battery charge 9
