PGCU.3 Portable UAV Ground Control Station

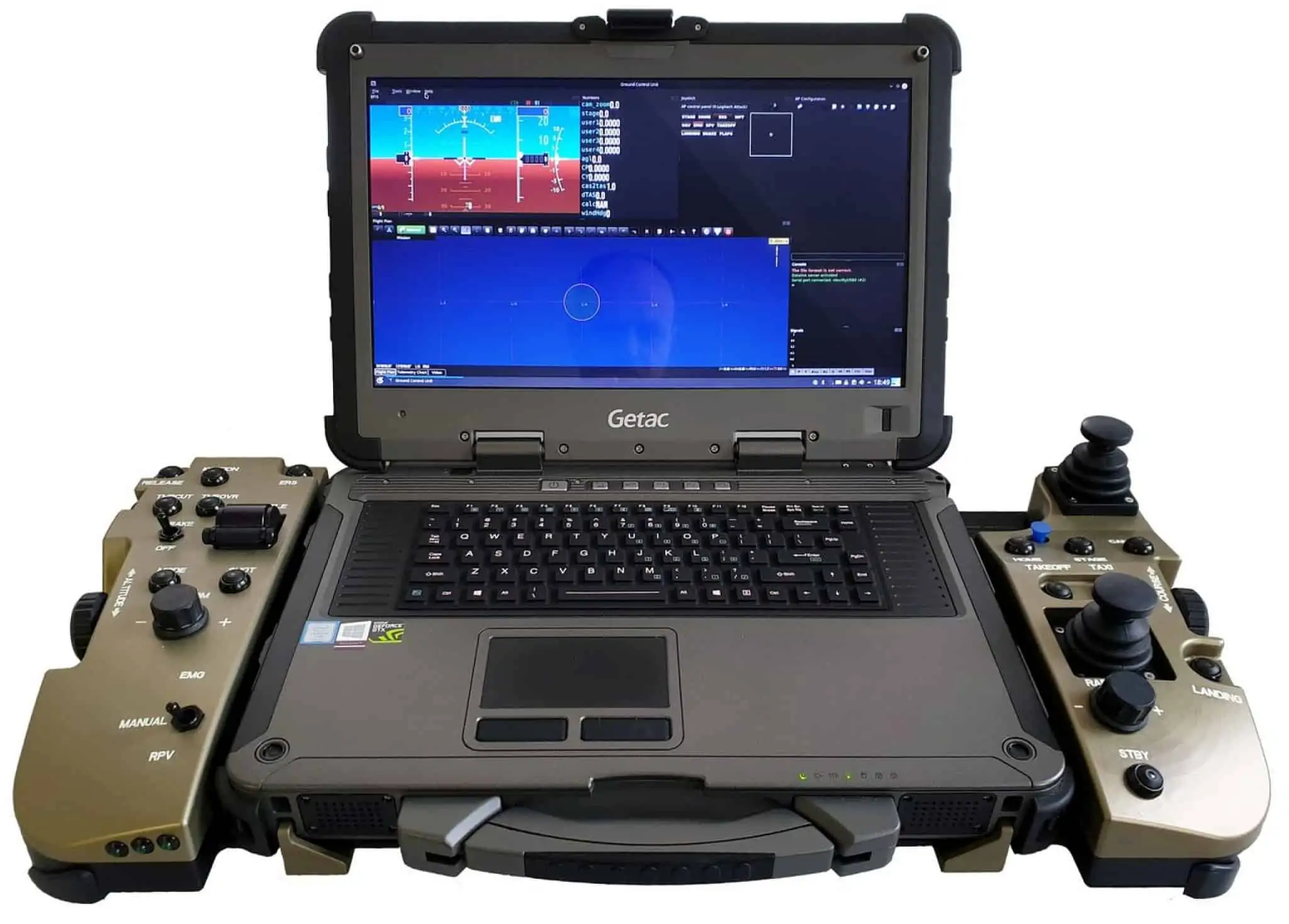

The PGCU.3 ground control unit is based around a rugged docking station for a military-grade Getac X500 laptop computer or other 15-inch models. With a variety of joysticks, push-buttons and switches, the unit provides real-time control, telemetry monitoring, data management, mission planning and more.

An integrated digital modem allows unmanned vehicle control without the need for an external antenna unit, and the PGCU.3 can also be used as a simulator. A versatile switching and power supply unit allows the PGCU.3 to be powered by various sources.

Dimensions (LxWxH) 656 mm x 332 mm x 128 mm
Weight Console 3.9kg // Getac X500 laptop 5.5kg
Processor Intel Core i7-7820HQ vPro 2.9GHz (max 3.9GHz)
RAM 8 Gb
Storage 512 GB SSD
Display 15.6" TFT LCD FHD (1920 x 1080)
Battery life 2.5 hrs
Interfaces 2x serial, 4x USB 3.0, 2x RJ45 LAN
