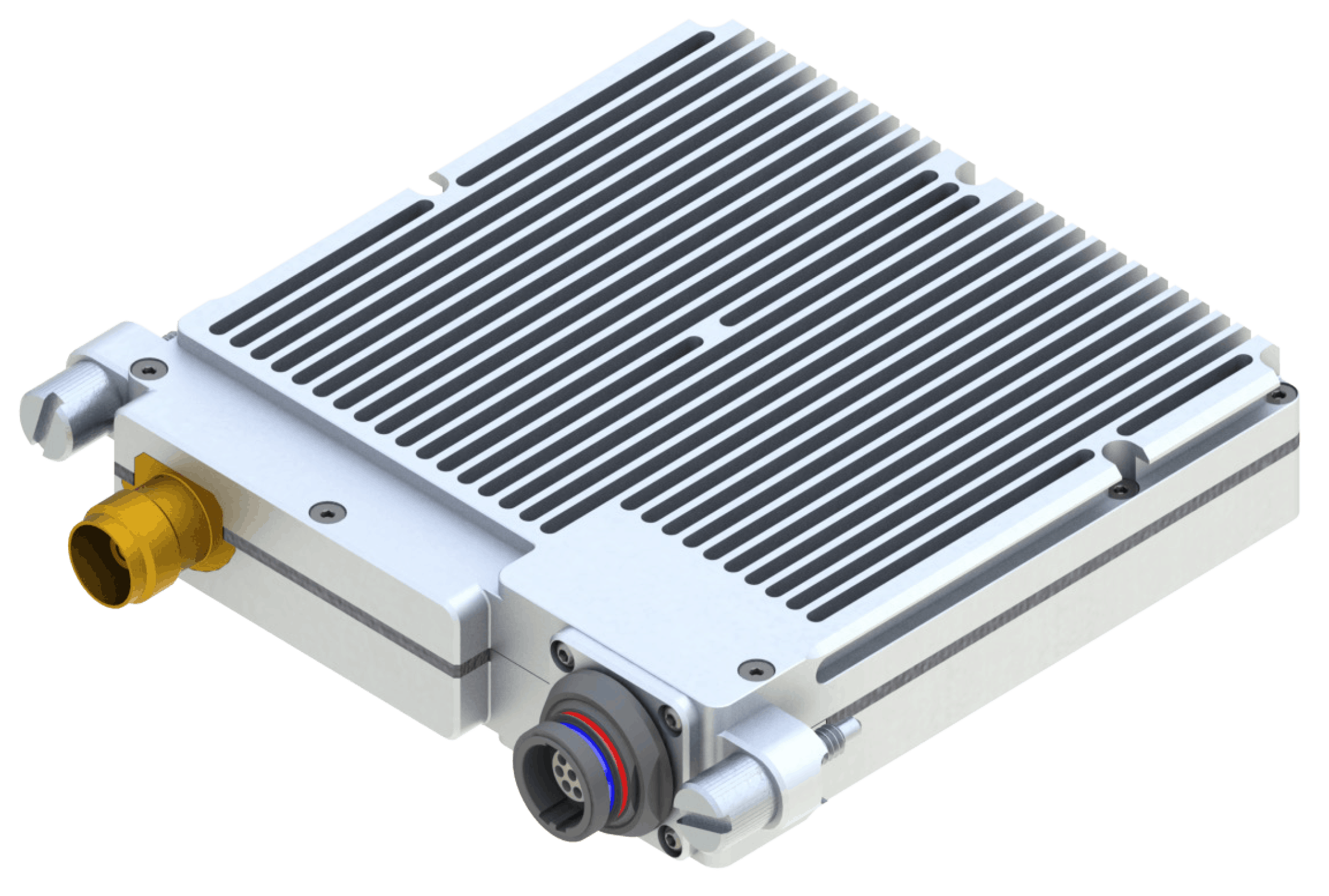

ZPX-R – Passive ADS-B and Mode 5 IFF Receiver
ZPX-R is a passive Mode 5 Identification Friend or Foe (IFF) and Automatic Dependent Surveillance–Broadcast (ADS-B) receiver system that provides situational awareness of both civil and military aircraft on the battlefield or in civilian airspace.
With a low SWaP footprint, it is ideal for airborne and shipboard deployments, as well as UAV ground control stations and permanent infrastructure.
When integrated with a compatible crypto appliqué, it receives and decodes Mode 5 Level 2 squitters.
Specifications:
| Size | 88 x 79 x 20 mm |
| Weight | 100 g |
| Power Consumption | 350 mA max at 37-57 VDC |
| ADS-B MTL | -76 dBm ±2 dB |
| Mode 5 MTL | -86 dBm |
