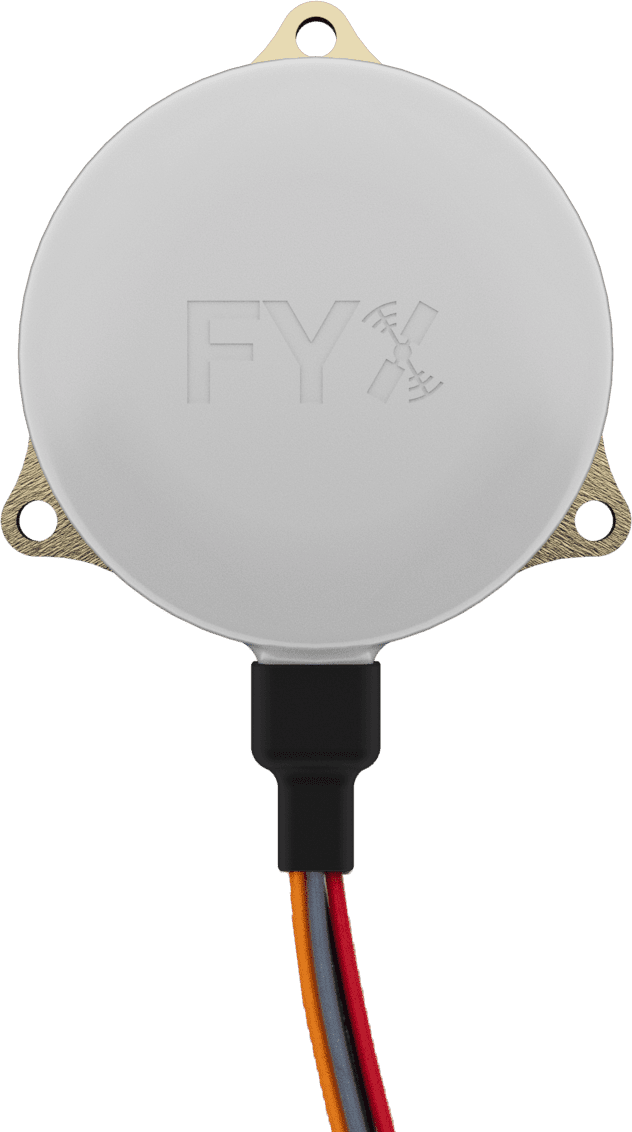

truFYX is a TSO certified GPS receiver providing high-integrity aviation-grade position source data for drone autopilot and ADS-B systems.
With reliable performance far exceeding that of a consumer-grade GPS, truFYX is ideal for a range of critical UAS applications such as UAM (urban air mobility), precision agriculture, and search and rescue.
The flexible GPS receiver leverages the same advanced fault detection and exclusion technology used by thousands of manned aircraft around the world. truFYX has been designed to adapt with the growing UAS industry and satisfy current and future regulations and mandates. The device has been developed to DO-178 and DO-254, tested to DO-160G environmental standards, and manufactured in an FAA-approved facility.
truFYX weighs just 20 grams and can be easily integrated into almost any drone configuration. It uses industry-standard NMEA or MavLink protocols and is compatible with a wide range of UAS autopilots.
Specifications:
| Size | 47.37 x 8.21 mm |
| Weight | 20 g |
| Power Consumption | 350 mW |
| Position Accuracy | 5m horizontal. 7m vertical |
| Velocity Accuracy | 3 m/s |
| Time Accuracy | 30 ns |
| Update Rate | 5 Hz |
