pingRX Pro – Detect and Avoid ADS-B UAV Receiver

pingRX Pro is a dual-band ADS-B receiver purpose-built for professional UAV Detect and Avoid (DAA) applications.

Capable of tracking aircraft on both 978MHz and 1090MHz, the rugged aviation-grade solution provides superior performance and flexibility for any UAS application, enabling BVLOS approval around the world.

Featuring a maximum range of nearly 100 times that of any competitive solution, pingRX Pro provides true 360×360 awareness, tracking any potential threats at all times and capable of handling up to 100 aircraft simultaneously.

PingRX Pro can be easily integrated with Ardupilot and PixHawk-based drone autopilots, requiring only a few lines of code to be launch-ready.

Specifications:

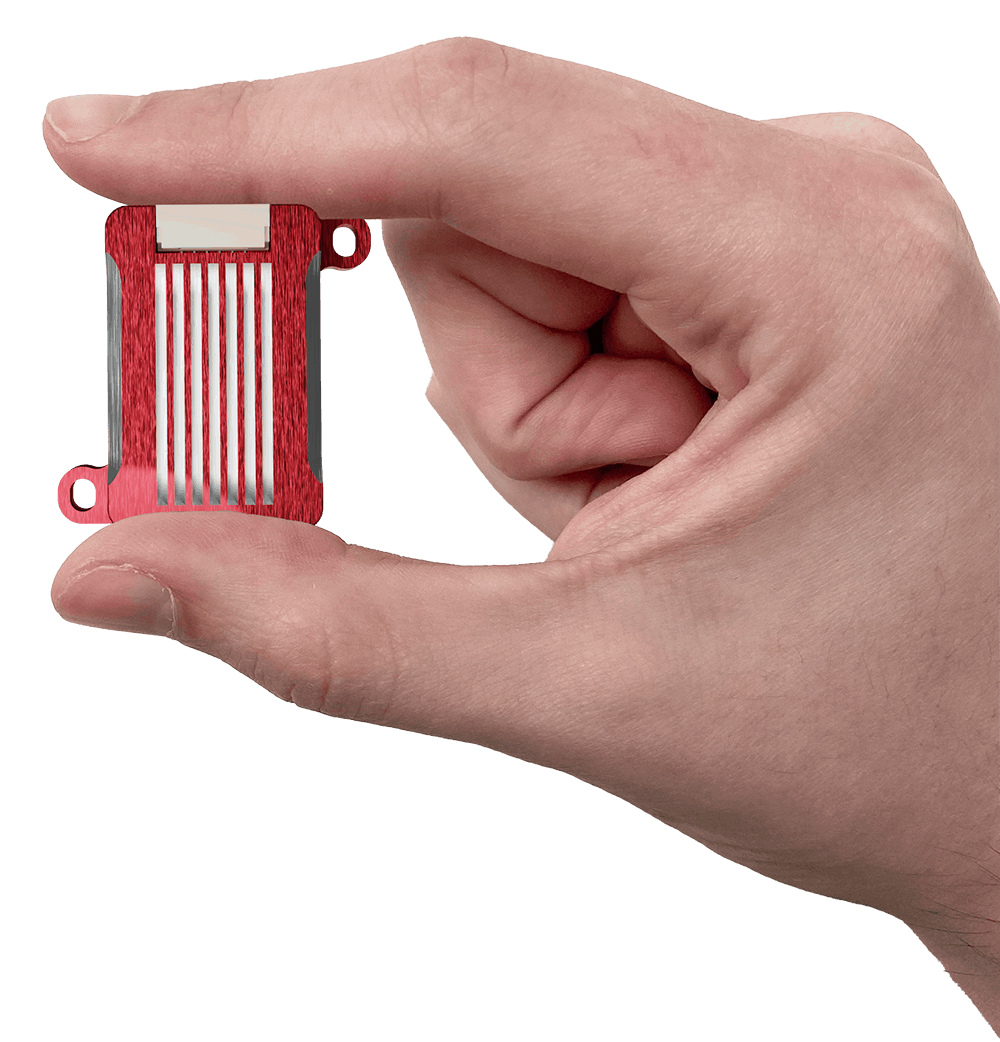

Size 32 x 31 x 9 mm
Weight 8 g
Power Consumption 150 mW
Receive Sensitivity -84dBm (MTL 1090MHz) -93dBm (MTL 978MHz)
Dynamic Range -81 to 0dBm (MTL 1090MHz) -90 to -3dBm (MTL 978MHz)
