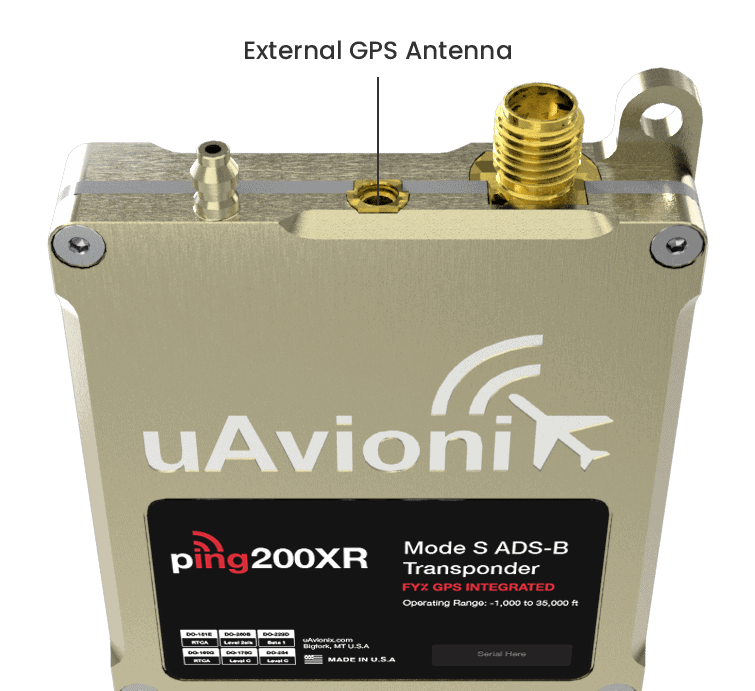

ping200XR combines our TSO-certified ping200X transponder with an internal TSO-certified GPS, providing aviation-grade avionics performance for UAS with a power consumption of only 1.5 Watts.
The integrated SBAS GPS receiver meets the performance requirements of RTCA DO-229D and TSO-C145e, providing Source Integrity Level (SIL) 3 operation and guaranteeing visibility to certified avionics in other aircraft as well as Air Traffic Control.
ping200X can be easily integrated with a wide range of drone autopilots for dynamic control from the ground control station (GCS), with an industry-standard serial protocol and physical protocol converters for broader adaptation. The unit can also be integrated as a “set-and-forget” payload when paired with our mini-controller.
Specifications:
| Size | 47 x 72 x 10 mm |
| Weight | 52 g |
| Power Consumption | 1.5W continuous, 4W peak (8 ms max) |
| Transmit Power | 250W nominal |
| Position Accuracy | 5m horizontal, 7m vertical |
| Velocity Accuracy | 3 m/s |
