uAvionix was founded with the mission of bringing safety solutions to the unmanned aviation industry to aid in the integration of Unmanned Aircraft Vehicles (UAV) into National Airspace Systems (NAS).

uAvionix offers low SWaP TSO-certified and uncertified avionics for civil UAS, Urban/Advanced Air Mobility (UAM/AAM), General Aviation (GA), airport surface vehicles, and tactical Identification Friend or Foe (IFF) markets. uAvionix is backed by investors at Playground Global and Airbus Ventures.

Jump to section:

Defense Solutions

Mode 5 Combat ID / IFF Solutions for Tactical UAV

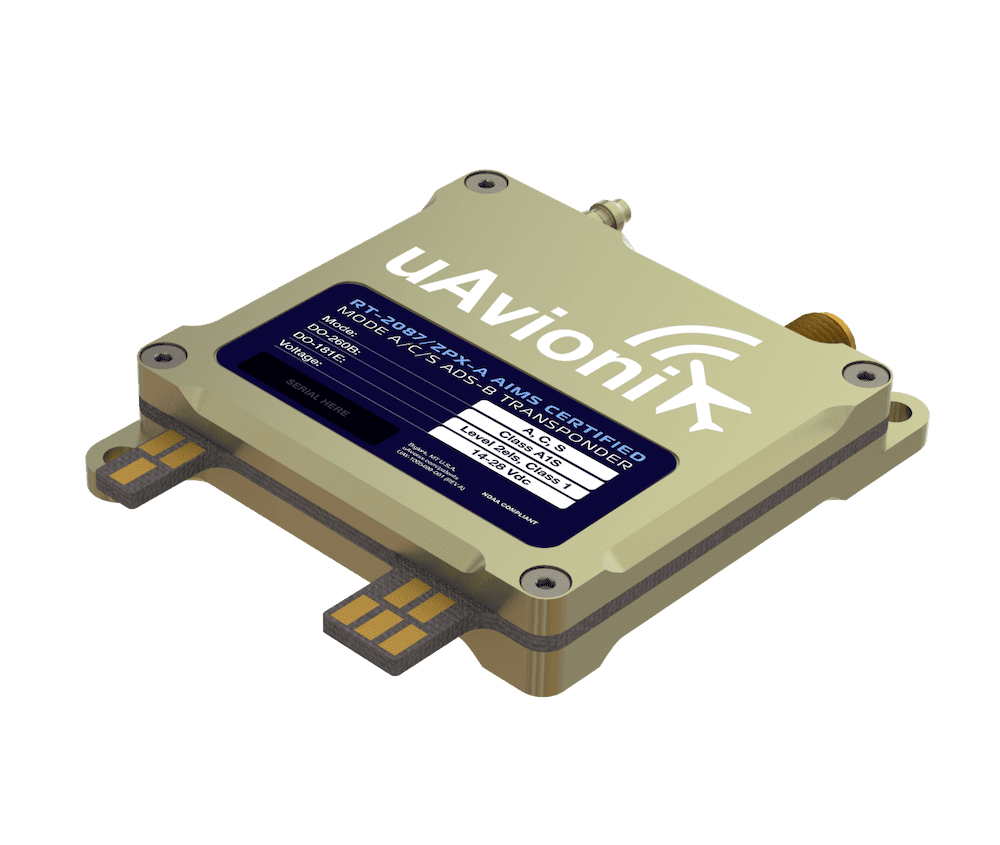

Our RT-2087/ZPX IFF (Identification Friend or Foe) solutions provide secure Combat ID with Modes 1, 2, 3/A, C, S, and 5 interoperability for tactical UAS. The low-SWaP systems are installable on UAVs as small as Group 1 or Group 2.

mode 5 transponders for defense applications

Engineered to the highest standards, ZPX systems have been tested to meet rigorous environmental and performance specifications, with AIMs Mk XIIB certification pending. ZPX transponders are also compliant with civil airspace requirements as Mode S/1090ES ADS-B transponders, simplifying aircraft configurations.

All ZPX Transponders are crypto-appliqué compatible and contain internal crypto emulators to provide non-classified Mode 5 testing and demonstration capability.

IFF UAV Transponders

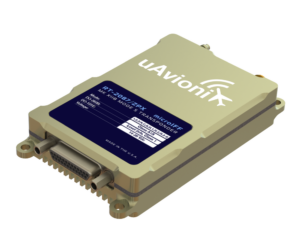

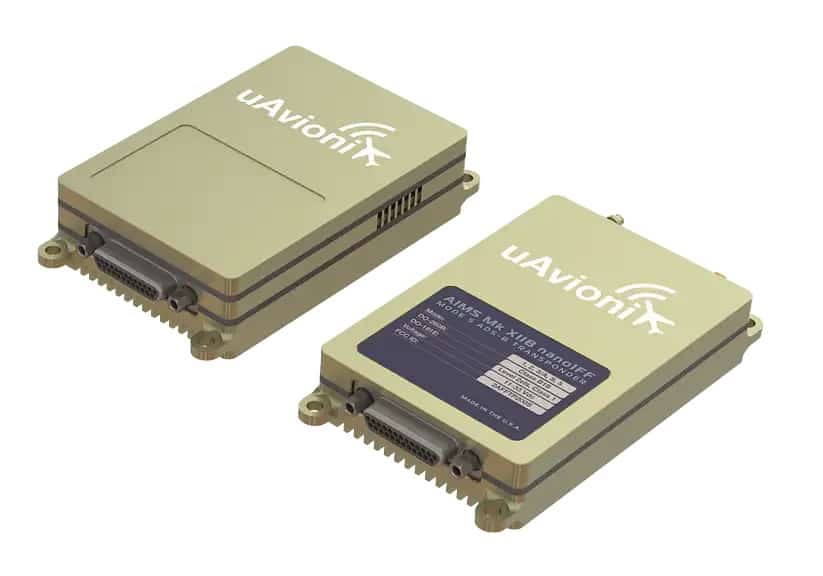

ZPX-B – IFF Mode 5 Transponder with Mode S and ADS-B (UAS Groups 1-5)

ZPX-B IFF Mode 5 Transponder with ADS-BZPX-B is the world’s lowest-SWaP AIMS Certified Combat ID and Air Traffic Control surveillance transponder.

Designed to satisfy IFF Transponder, Mode S, and ADS-B requirements, ZPX-B allows tactical UAS to operate in both battlefield conditions and controlled civil airspace.

The secure system can be combined with a micro-crypto appliqué for the latest NATO Mode 5 encryption capabilities. Options include an integrated ADS-B receiver and ethernet connectivity.

Specifications:

Size 83 x 47 x 12 mm
Weight 53 g
Power Consumption 3.5W continuous, 4W peak (8 ms max)
1090 MHz Transmit Power 250 W (54 dBm)

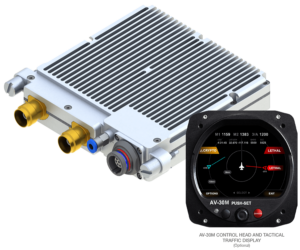

ZPX-C – IFF Mode 5 Diversity Transponder (UAS Groups 4-5)

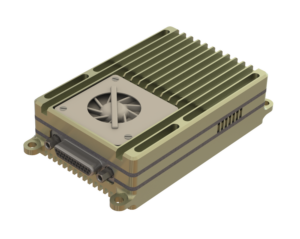

ZPX-C IFF Mode 5 Diversity TransponderZPX-C is a low-SWaP Combat ID and Air Traffic Control surveillance transponder with diversity designed to satisfy Identification Friend or Foe (IFF) Transponder and Automatic Dependent Surveillance–Broadcast (ADS-B) requirements.

Featuring antenna diversity appropriate for Group 4 and 5 UAS and ADS-B IN for Detect and Avoid (DAA) functionality, the secure system can be combined with a micro-crypto appliqué for the latest NATO Mode 5 encryption capabilities.

Specifications:

Size 88 x 79 x 20 mm
Weight 100 g
Power Consumption 4W continuous, 5W peak (8 ms max)
1090 MHz Transmit Power 500 W (57 dBm)

IFF Receivers

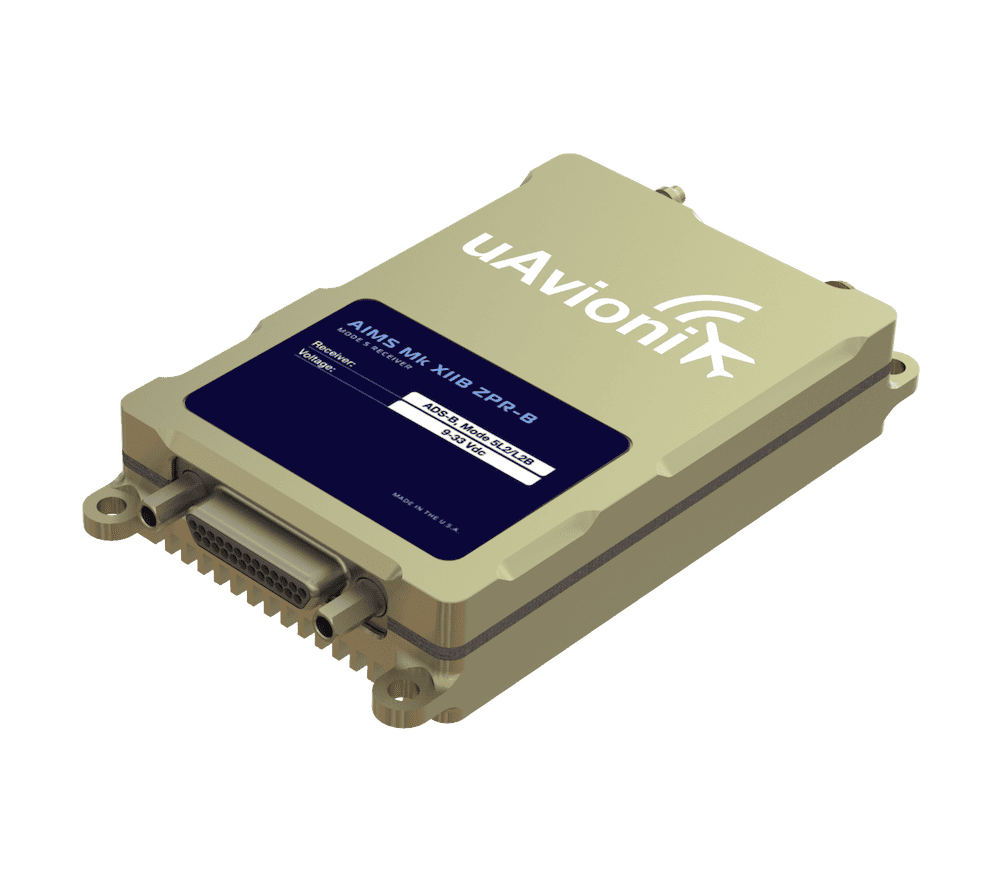

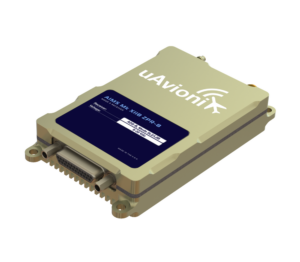

ZPX-R – Passive ADS-B and Mode 5 IFF ReceiverZPX-R Passive Mode 5 IFF Receiver

ZPX-R is a passive Mode 5 Identification Friend or Foe (IFF) and Automatic Dependent Surveillance–Broadcast (ADS-B) receiver system that provides situational awareness of both civil and military aircraft on the battlefield or in civilian airspace.

With a low SWaP footprint, it is ideal for airborne and shipboard deployments, as well as UAV ground control stations and permanent infrastructure.

When integrated with a compatible crypto appliqué, it receives and decodes Mode 5 Level 2 squitters.

Specifications:

Size 88 x 79 x 20 mm
Weight 100 g
Power Consumption 350 mA max at 37-57 VDC
ADS-B MTL -76 dBm ±2 dB
Mode 5 MTL -86 dBm

GPS Receivers

ZPX-G Mode 5 GPS Module

ZPX-G – Mode 5 GPS Module

ZPX-G is a Technical Standard Orders (TSO) C145e-derived SBAS GPS position source designed specifically to be integrated with drone autopilots and Mode 5 and ADS-B OUT systems.

Specifications:

Size 88 x 79 x 11 mm
Weight 25 g
Power Consumption 400 mW
Position Accuracy 5m horizontal. 7m vertical
Velocity Accuracy 3 m/s
Time Accuracy 30 ns
Update Rate 5 Hz

Learn more: Mode 5 GPS Receivers

Civil Solutions

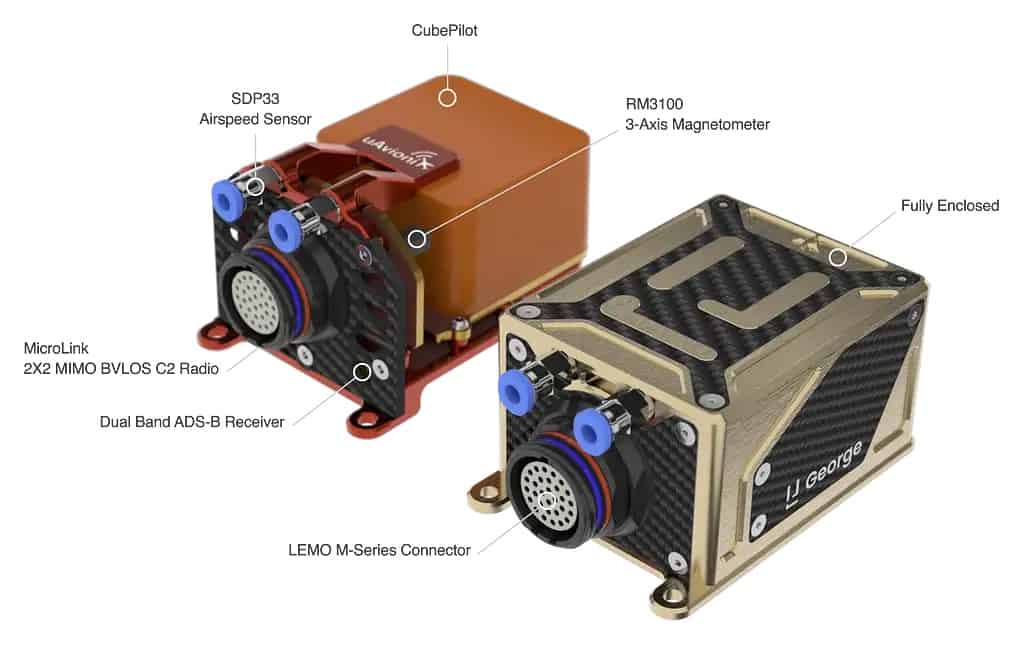

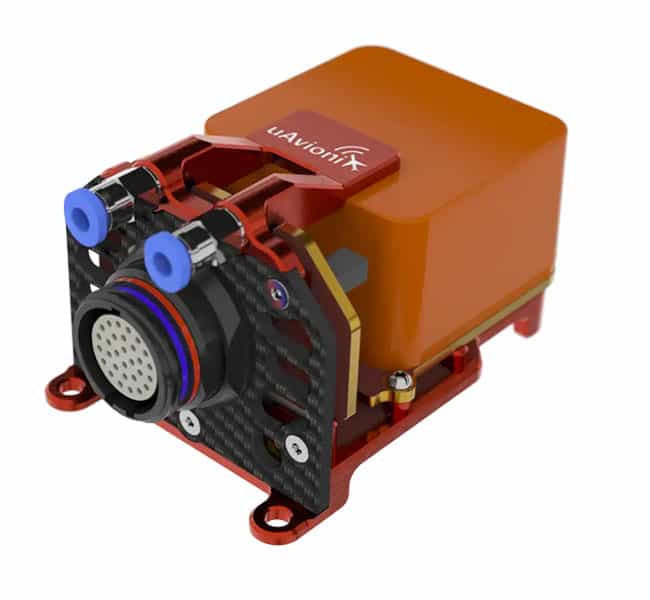

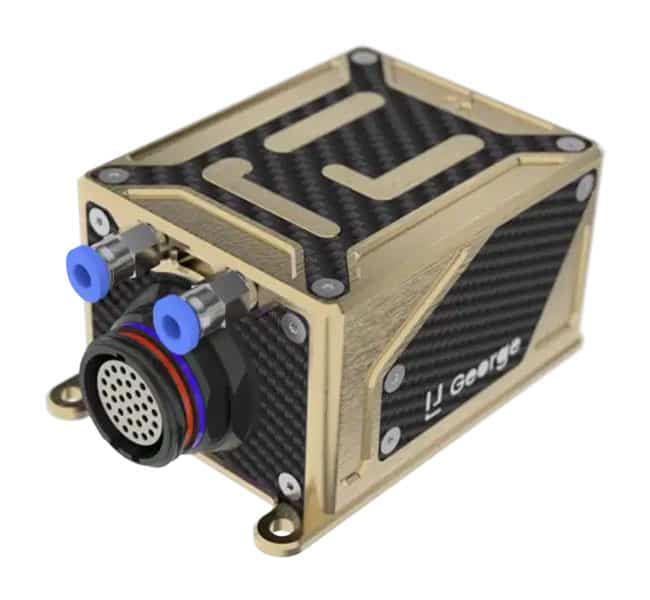

George UAV Autopilot

Lightweight miniature drone autopilotuAvionix George UAS autopilot

George is a versatile UAS autopilot based around the proven open-source CubePilot platform. Engineered specifically to minimize impact on SWaP budgets, the system is optimized for Vertical Takeoff and Landing (VTOL) fixed-wing aircraft.

George UAV Autopilot

George UAV Autopilot

Designed to comply with the Pixhawk standards for autopilot hardware and software, George allows developers to prototype and launch drone platforms based around open source flight control solutions such as PX4 or Ardupilot. The safety and sensor processing system is engineered to DO-178C DAL-C, while the DO-254 DAL-C hardware platform is engineered to DO-160G and MIL-STD-810H environmental standards.

drone autopilot system

George is plug-and-play compatible with all our certified solutions, providing a robust drone hardware ecosystem.

Learn more: George UAV Autopilot

Mode S ADS-B OUT Transponders

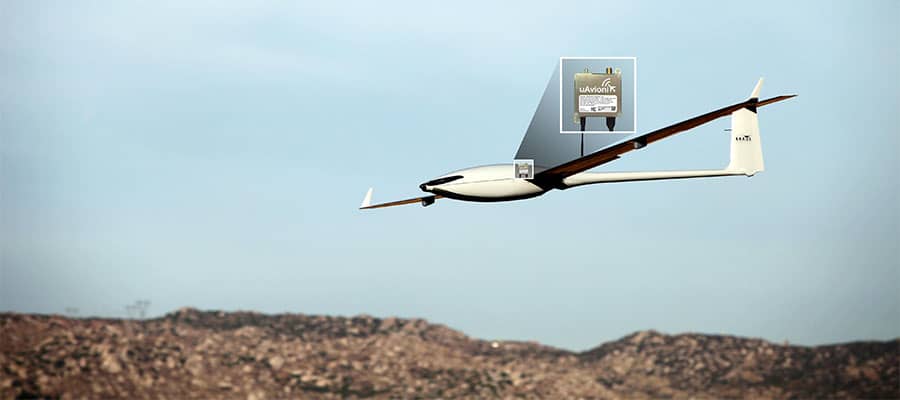

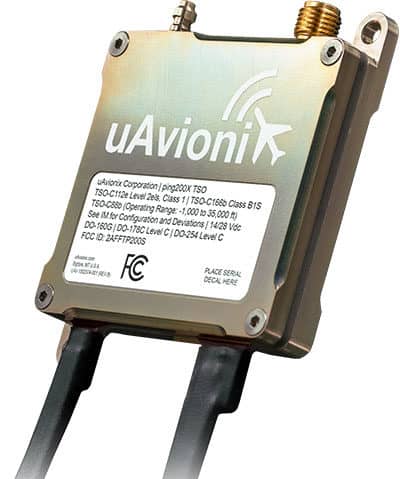

ping200X – Certified UAV Mode S Transponder with ADS-B OUT

UAV Mode S Transponder
  • FAA TSO Certified
  • 1090MHz Mode S Transponder
  • ADS-B OUT
  • Weight: 50 grams
  • Size: 47 x 54 x 9 mm

ping200X Mode S Transponder for UAVping200X is the premier FAA TSO Certified Mode S ADS-B OUT transponder for UAS.

Enabling airspace access, regulator, and Air Navigation Service Provider (ANSP) acceptance worldwide, ping200X enables your aircraft to be detected by Secondary Surveillance Radar (SSR), Traffic Collision Avoidance Systems (TCAS), and ADS-B IN receivers.

Compact and light, ping200X is a Level 2els, Class 1 transponder small enough to fit on Class 1 and 2 sUAS. Don’t let the size fool you. At only 50-grams, the ping200X transponder packs a punch delivering 250 watts of transmit power while drawing only 1.5 watts.

ping200X is easily integrated with a wide range of drone autopilots for dynamic control from the ground control station (GCS), with an industry-standard serial protocol and physical protocol converters for broader adaptation. The unit can also be integrated as a “set-and-forget” payload paired with the uAvionix mini-controller.

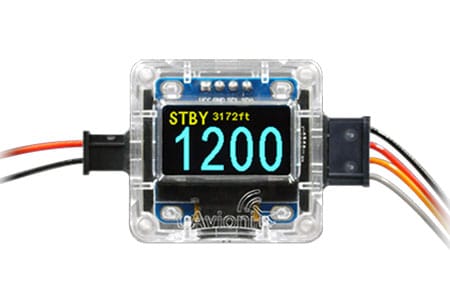

uAvionix mini-controller
uAvionix mini-controller

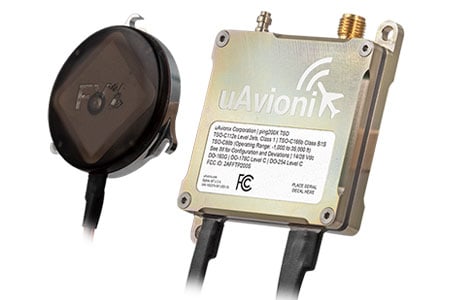

Pair ping200X with our high-performance truFYX SBAS GPS to deliver safe separation information to Air Traffic Control (ATC) as required for controlled airspace around the globe. The Source Integrity Level (SIL) 3 GPS also guarantees visibility to certified avionics in other aircraft.

Specifications:

Size 47 x 54 x 9 mm
Weight 50 g
Power Consumption 1.5W continuous, 4W peak (8 ms max)
Transmit Power 250W nominal

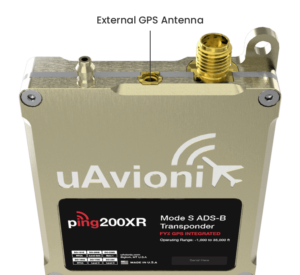

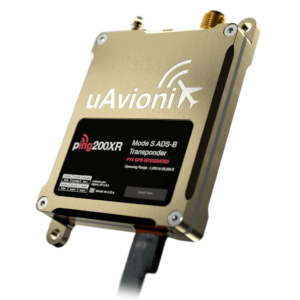

ping200XR – Mode S ADS-B UAV Transponder with Integrated GPS
ping200Xr Mode S ADS-B UAV Transponder

  • FAA TSO Certified
  • 1090MHz Mode S Transponder
  • ADS-B OUT
  • Weight: 52 grams
  • Size: 47 x 72 x 10 mm

ping200XR combines our TSO-certified ping200X transponder with an internal TSO-certified GPS, providing aviation-grade avionics performance for UAS with a power consumption of only 1.5 Watts.

The integrated SBAS GPS receiver meets the performance requirements of RTCA DO-229D and TSO-C145e, providing Source Integrity Level (SIL) 3 operation and guaranteeing visibility to certified avionics in other aircraft as well as Air Traffic Control.ping200Xr Mode S UAV Transponder with GPS

ping200X can be easily integrated with a wide range of drone autopilots for dynamic control from the ground control station (GCS), with an industry-standard serial protocol and physical protocol converters for broader adaptation. The unit can also be integrated as a “set-and-forget” payload when paired with our mini-controller.

Specifications:

Size 47 x 72 x 10 mm
Weight 52 g
Power Consumption 1.5W continuous, 4W peak (8 ms max)
Transmit Power 250W nominal
Position Accuracy 5m horizontal, 7m vertical
Velocity Accuracy 3 m/s

ADS-B Receivers

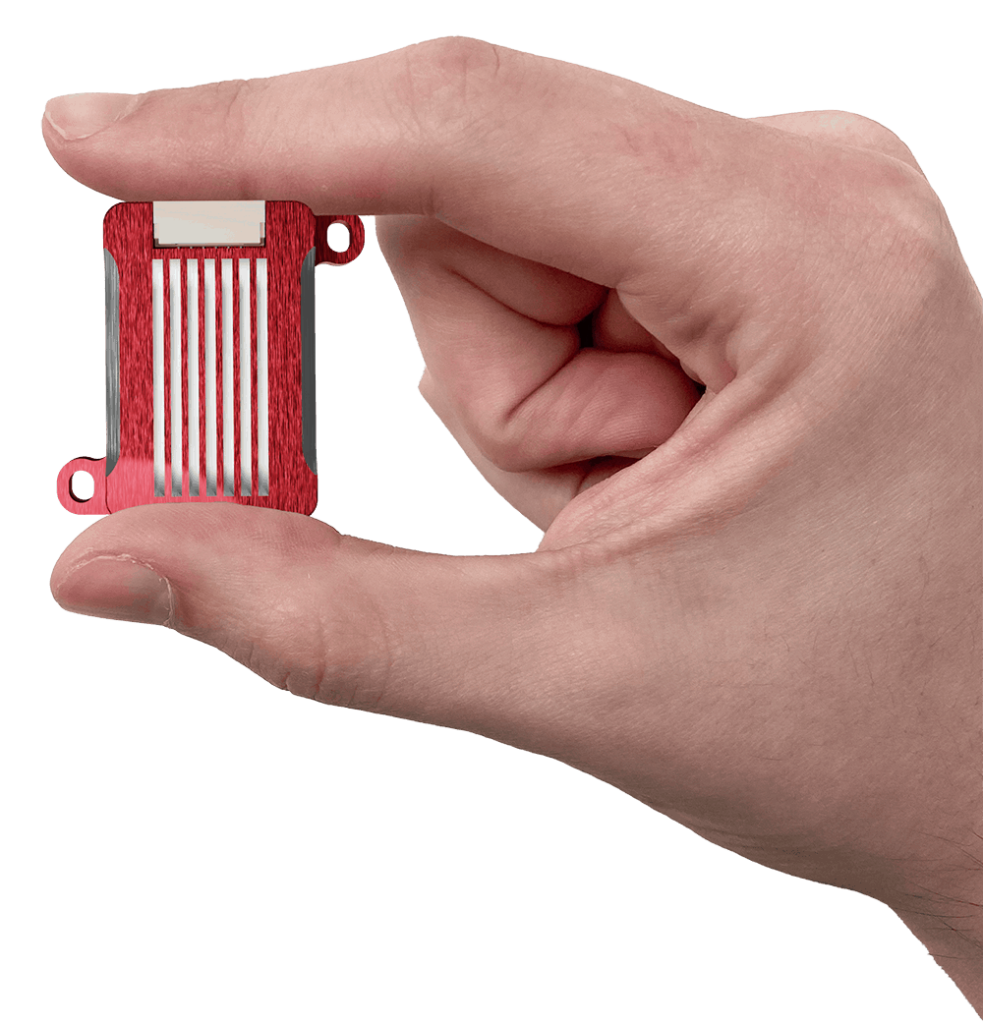

pingRX Pro – Detect and Avoid ADS-B UAV ReceiverpingRX-Pro ADS-B Receiver

pingRX Pro is a dual-band ADS-B receiver purpose-built for professional UAV Detect and Avoid (DAA) applications.

  • Dual-band (978MHz / 1090MHz) ADS-B IN
  • Weight: 8 grams
  • Size: 32 x 31 x 9 mm

Capable of tracking aircraft on both 978MHz and 1090MHz, the rugged aviation-grade solution provides superior performance and flexibility for any UAS application, enabling BVLOS approval around the world.

Featuring a maximum range of nearly 100 times that of any competitive solution, pingRX Pro provides true 360×360 awareness, tracking any potential threats at all times and capable of handling up to 100 aircraft simultaneously.

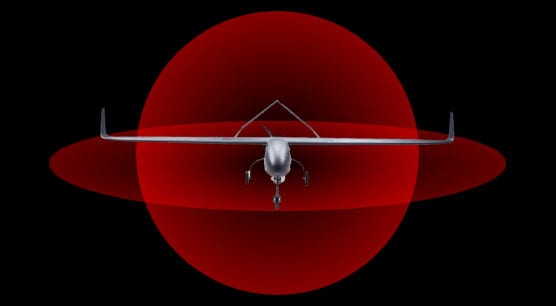

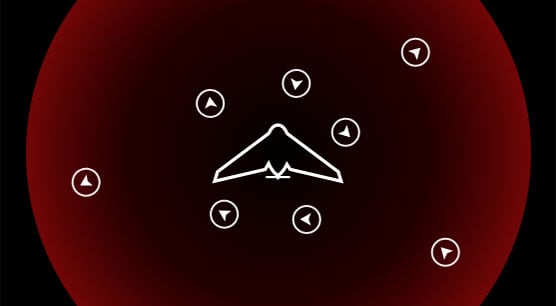

pingRX Pro ADS-B 360 awareness
pingRX Pro On-Board ADS-B

pingRX Pro On-Board ADS-B Receiver for DAA

PingRX Pro can be easily integrated with Ardupilot and PixHawk-based drone autopilots, requiring only a few lines of code to be launch-ready.

Specifications:

Size 32 x 31 x 9 mm
Weight 8 g
Power Consumption 150 mW
Receive Sensitivity -84dBm (MTL 1090MHz)
-93dBm (MTL 978MHz)
Dynamic Range -81 to 0dBm (MTL 1090MHz)
-90 to -3dBm (MTL 978MHz)

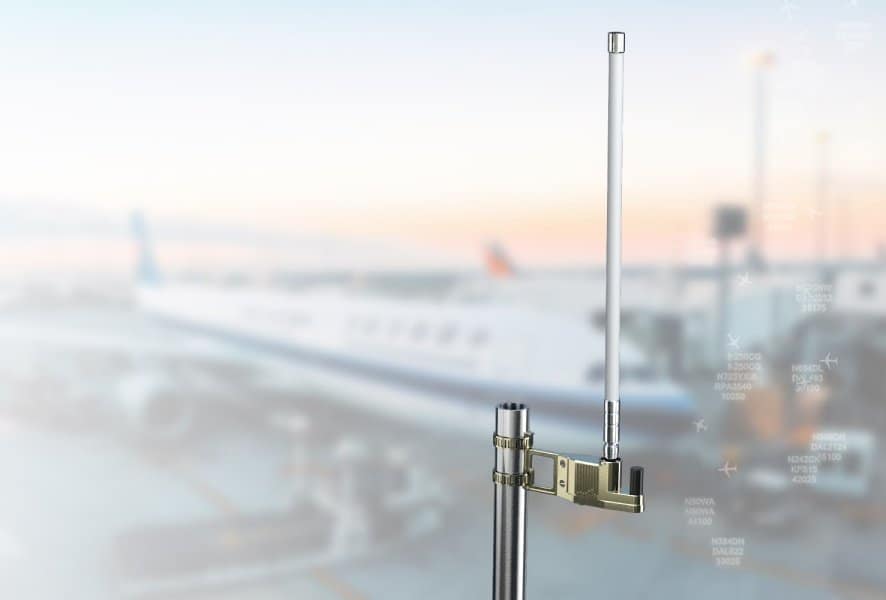

pingStation 2 – Ground-Based Networkable Dual-band ADS-B Receiver

pingStation 2 – Ground-Based Networkable Dual-band ADS-B Receiver for UAV

pingStation Dual Band ADS-B Receiver

  • Dual-band (978MHz / 1090MHz) ADS-B IN
  • Networkable
  • Integrated GPS
  • Weatherproof

pingStation 2 is a dual-band (978MHz and 1090MHz) ADS-B receiver designed for both permanently-mounted and roaming applications.

It provides ground, surface, or low-altitude ADS-B surveillance within line-of-sight of the antenna up to 200NM away. Multiple pingStations can be networked together to provide a wide area low-altitude surveillance capability.

The integrated GPS receiver provides position and precision time-stamping for multilateration and messaging. Data messages are available in multiple formats for easy integration into custom applications.

The robust unit, housed in an IP67-rated protective enclosure, provides easy mounting and installing, requiring only a single Power-Over-Ethernet (POE) cable for power and data communications.

Specifications:

Input Voltage / Power 44-57V / 500mW
Power over Ethernet
Size 4.5” x 7.5” x 14.8”
Weight 435 g
Receive
MTL 1090MHz
Dynamic Range
-88dBm
-79 to 0dBm
MTL 978MHz
Dynamic Range
-93dBm
-90 to -3dBm
Interfaces
Ethernet (JSON UDP)
Compressed VRS (Virtual Radar Server)

GPS Position Sources

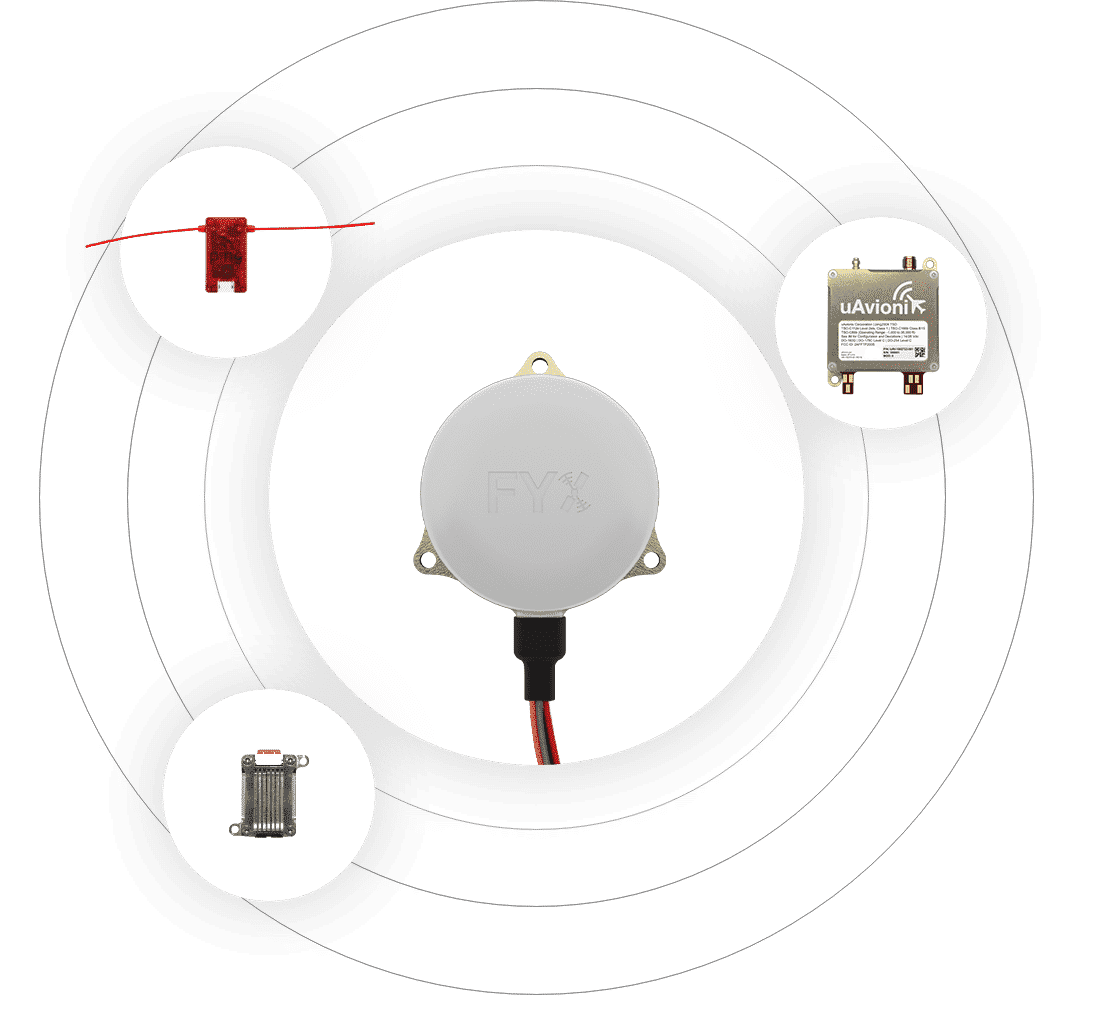

truFYX – high-integrity drone GPS receiver

truFYX drone GPS receiver for UAV autopilots

  • TSO-C145e certification-pending
  • Weight: 20 grams
  • Size: 47.37 × 8.21 mm

truFYX is a TSO-C145e certification-pending GPS receiver providing high-integrity aviation-grade position source data for drone autopilot and ADS-B systems.

With reliable performance far exceeding that of a consumer-grade GPS, truFYX is ideal for a range of critical UAS applications such as UAM (urban air mobility), precision agriculture, and search and rescue.

The flexible GPS receiver leverages the same advanced fault detection and exclusion technology used by thousands of manned aircraft around the world. truFYX has been designed to adapt with the growing UAS industry and satisfy current and future regulations and mandates. The device has been developed to DO-178 and DO-254, tested to DO-160G environmental standards, and manufactured in an FAA-approved facility.

truFYX drone gps receiver

truFYX weighs just 20 grams and can be easily integrated into almost any drone configuration. It uses industry-standard NMEA or MavLink protocols and is compatible with a wide range of UAS autopilots.

Specifications:

Size 47.37 x 8.21 mm
Weight 20 g
Power Consumption 350 mW
Position Accuracy 5m horizontal. 7m vertical
Velocity Accuracy 3 m/s
Time Accuracy 30 ns
Update Rate 5 Hz

BVLOS UAV C2 Data Links

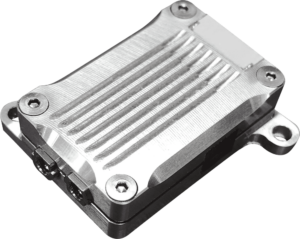

microLink – UAV data link for BVLOS command & control

  • BVLOS UAV Data LinkFCC (U.S.A.) and IC (Canada) Approved
  • Dual Radios
  • Weight: 16 grams
  • Size: 31 x 26 x 9mm

microLink is a Beyond Visual Line of Sight (BVLOS) Command and Control (C2) drone data link radio specifically designed for long-range mission-critical applications and UAV operations.

The FCC (U.S.A.) and IC (Canada)-approved high-integrity avionics solution consists of two radios, each with their own external antenna for enhanced reliability, range, and signal blockage protection.

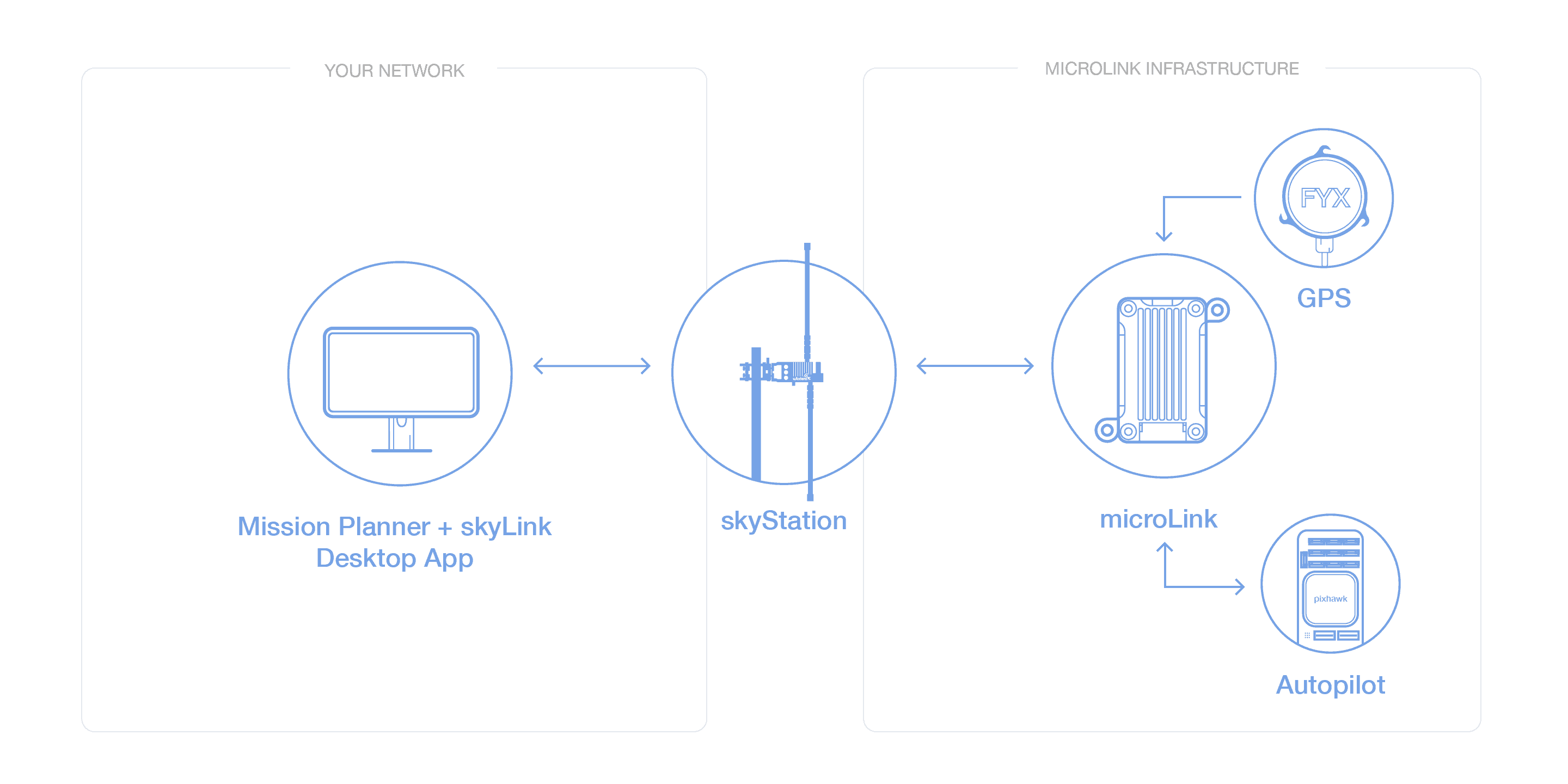

microLink kitThe GPS timing-synchronized datalink utilizes advanced frequency-hopping techniques to protect against external interference, using the full 902 – 928MHz spectrum range. Performance can be optimized even further by pairing microLink with our skyStation Ground Radio System (GRS), which multiplies your effective range to 12 miles line-of-sight and can be mounted on your GCS or on permanent infrastructure.microLink uav data link configThe versatile solution features an open architecture with almost limitless integration options and allows you to interface with PixHawk or nearly any serial-connected drone autopilot.

microLink PixHawkmicroLink is supplied with a mission monitor application that provides continuous connection status, signal integrity, and health of both ARS and GRS radios, allowing pilots to make critical decisions before link loss occurs.

Specifications:

Radio Band 902-928MHz ISM
Radio Transmit Power 1W (4W EIRP)
Radio Bandwidth 200 kHz
Size 31 x 26 x 9 mm (ARS)
122 x 82 x 55 mm (GRS)
Weight 16g (ARS)
500g (GRS)
Input Power 1.7W Peak (ARS)
13W Peak (GRS)

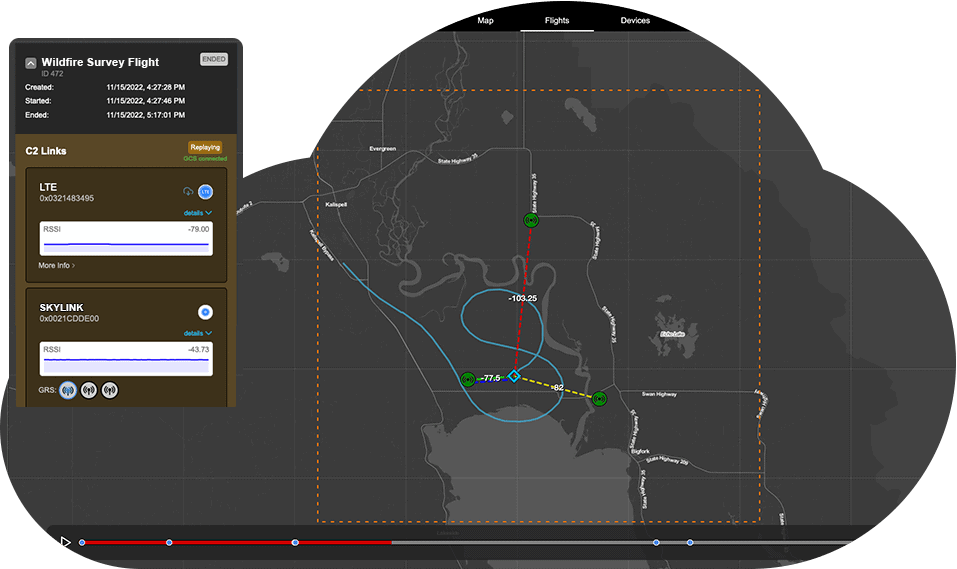

SkyLine Command & Control Infrastructure

Enterprise UAS C2 infrastructure management service

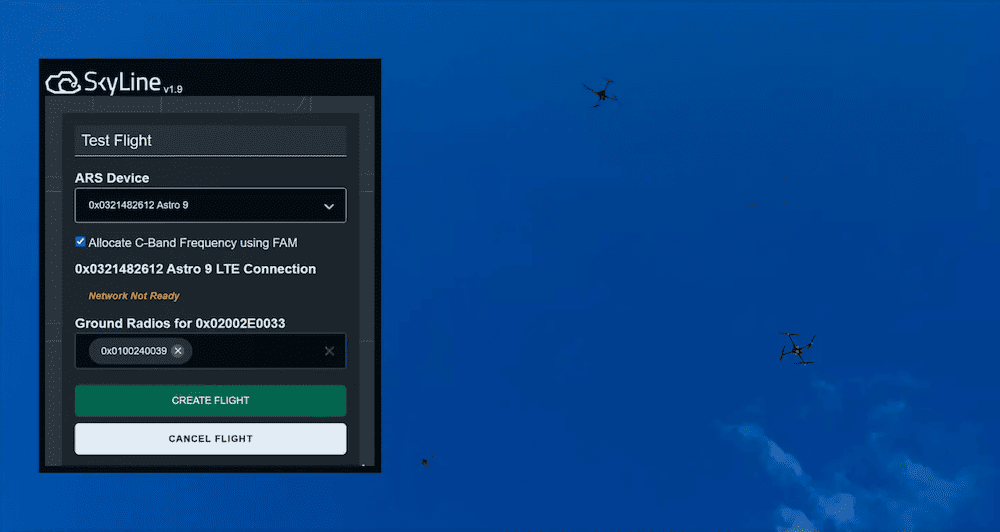

SkyLineUAS C2 Command & Control Infrastructure is a scalable Enterprise Command and Control (C2) infrastructure management service that has been designed from the ground up to meet aviation design standards for critical UAS and UAM (urban air mobility) applications.

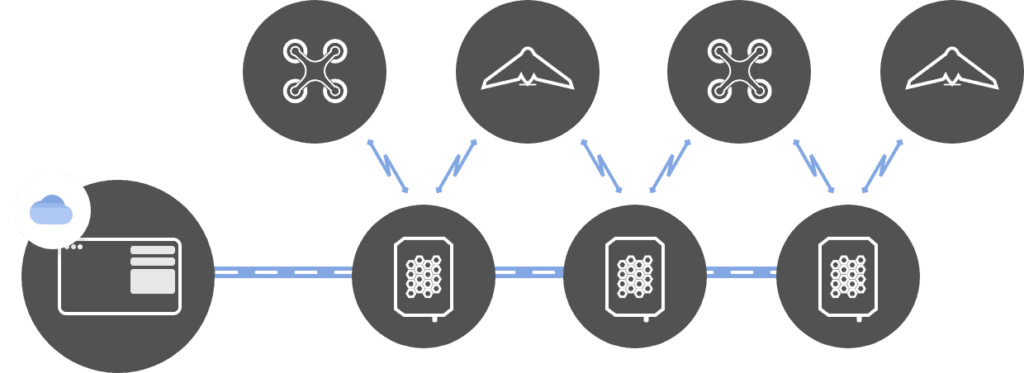

Vertically Integrated Highly Scalable Infrastructure

Vertically Integrated Highly Scalable Infrastructure

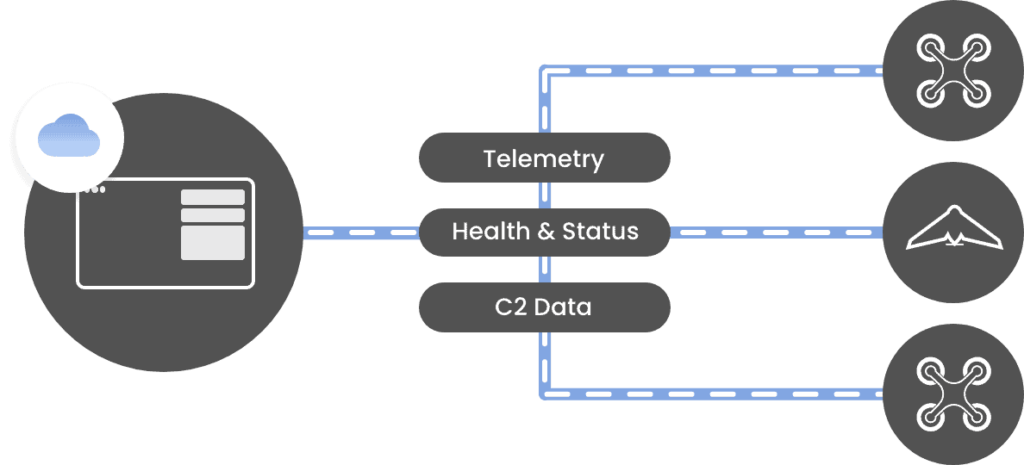

It provides real-time statistics and telemetry such as aircraft location, network health and signal strength, all accessible from the cloud.

Cloud-accessible Real-time Statistics and TelemetryCloud-accessible Real-time Statistics and Telemetry

Based around our low-SWaP DO-362A SkyLink datalink radios, SkyLine provides seamless management of your UAS missions and infrastructure. The system has been developed to Design Assurance Level (DAL) C for both hardware and software, ensuring the highest level of safety for unmanned aircraft and cargo.
