Closed Loop, Digital, MEMS Accelerometers & Gyros for Drones and Robotics

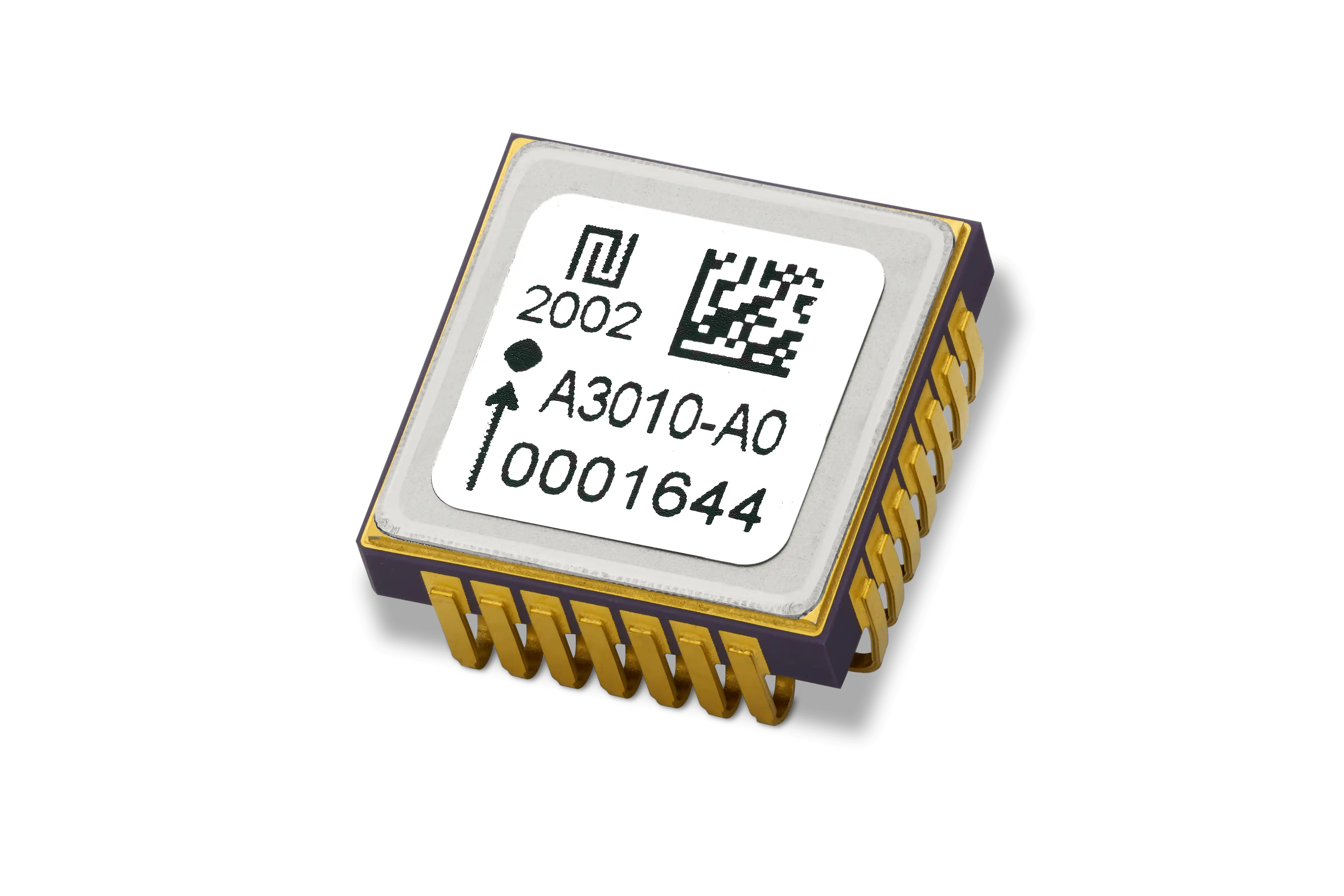

AXO®301: High resolution ±1g MEMS accelerometer with digital interface High resolution and high stability in vibrating environments
AXO®301: High resolution ±1g MEMS accelerometer with digital interface

High resolution and high stability in vibrating environments

Visit Website Send Message
Saved
Save
AXO®301: High resolution ±1g MEMS accelerometer with digital interface High resolution and high stability in vibrating environments

AXO®301 is a high accuracy, single axis closed-loop MEMS accelerometer that offers a performance equivalent and cost-effective alternative to quartz and servo-accelerometers at a fraction of their size, weight and power. It overpasses all commercially available MEMS accelerometers.

AXO®301 is perfectly suited to acceleration and deceleration measurements for applications operating in highly vibrating environments, such as land and railway positioning and navigation systems.

The 24-bit digital SPI interface eases the integration of AXO®301 into high performance IMU and INS. The built-in self-test ensures initial verification of the sensor’s integrity and continuous in operation functionality test.

Key performances
  • ±1 g range, single-axis in-plane accelerometer
  • Resolution of 50µg
  • 1 year composite bias repeatability of 1 mg
  • 600 ppm composite scale factor repeatability
  • 15 Hz bandwidth (configurable upon request)
  • Vibration rejection of 20 μg/g²
  • Compliant with EN61373 railway standard for vibrations and shocks
Key features
  • 24-bit digital SPI interface
  • Initial and continuous self-test
  • Factory-calibrated over temperature
  • Hermetic ceramic SMD package
  • Non classified under dual-use export control
  • REACH and RoHS compliant
Key applications
  • IMU for train odometry and Automated Train Control
  • INS for GNSS-assisted land & railway positioning
  • Train performance testing
  • Train tilt sensing
  • Dynamic inclinometers
