SkyLink Mini S

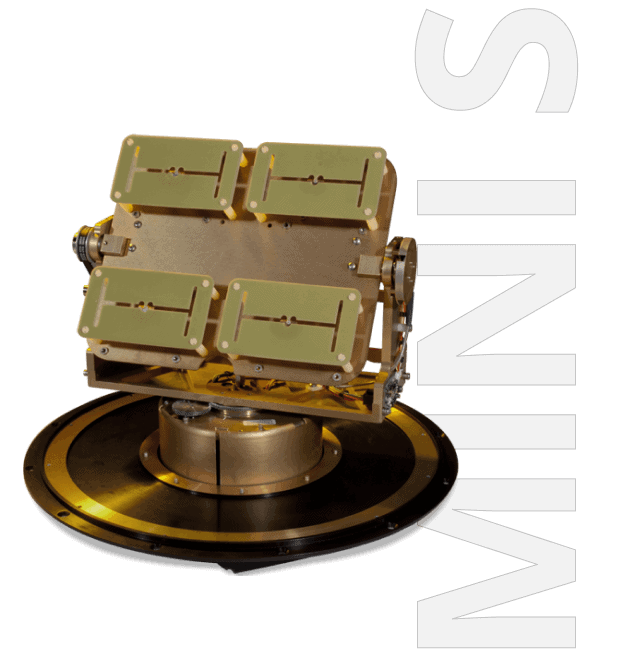

SkyLink Mini S is a high-performance tracking antenna that provides high gain especially in the L and S bands. The continuously-steered directional antenna delivers increased received signal levels with less need for amplification, and is also highly resistant to jamming and interference.

The high-precision antenna incorporates an embedded INS with built-in GPS receiver, enabling self-calibration and position, attitude and heading data independent of any other sensors. SkyLink Mini II supports a variety of radio modulations and topologies including CDL, FDD, DVB-T COFDM, OFDM, and MANET/MIMO mesh networking.

Size (H x D) 13.2 x 14”
Weight 11.6 lbs
Input Voltage & Current 18-32VDC, 1A nominal
Band Options L, S, Lower C, Upper C, Ku
Azimuth Steering Continuous rotation, 100°/second (+/- 0.1° accuracy)
Elevation Steering Max -90° to +30°
