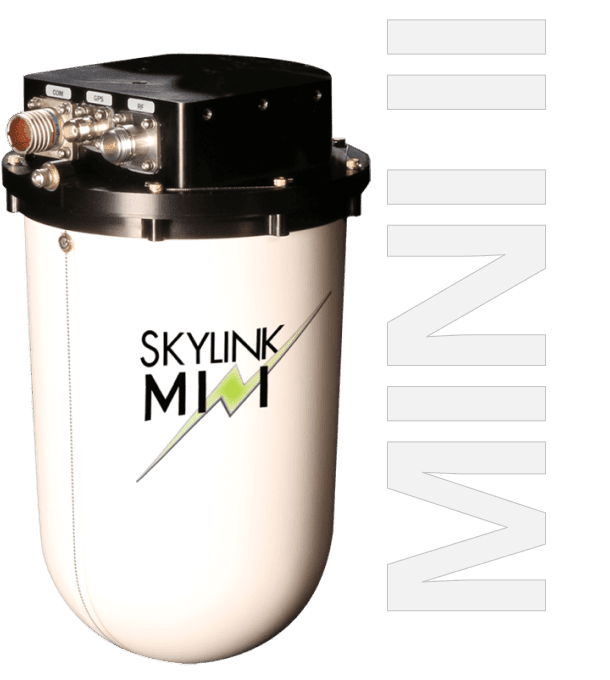

SkyLink Mini II
SkyLink Mini II is a compact high-performance tracking antenna designed to support high-bit rate communications for UAVs and aerial platforms. The DO-160 certified antenna features automatic steering and option dual-band and dual-polarization capabilities.
The high-precision airborne antenna incorporates an embedded INS with built-in GPS receiver, enabling self-calibration and position, attitude and heading data independent of any other sensors. SkyLink Mini II supports a variety of radio modulations and topologies including CDL, FDD, DVB-T COFDM, OFDM, and MANET/MIMO mesh networking.
| Size (L x W x H) | 15.5 x 15.5 x 27.5 cm (6.09 x 6.09 x 10.73”) |
| Weight | 2.27 kg (<5 lbs) |
| Input Voltage & Current | 18-32VDC, 1A nominal |
| Band Options | L, S, Lower C, C, Upper C, X, Ku |
| Azimuth Steering | Continuous rotation, 100°/second (+/- 0.1° accuracy) |
| Elevation Steering | Max +90° to -30° depending on configuration |
