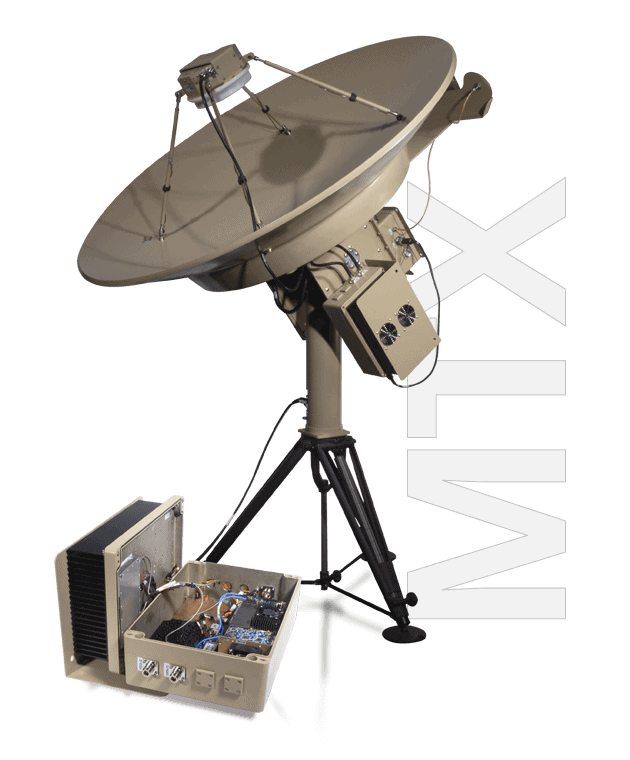

The MTX Series of tactical tracking antennas features high-gain parabolic reflectors for superior range, auto-acquisition and tracking. The radio-agnostic systems can be fitted with a variety of easily swappable radio and filter modules.
The MTX series antennas feature patented RF tracking technology that samples energy levels and continuously points the antenna in the direction of the desired frequency emitter. The modular design requires a two-person crew for setup or disassembly in under ten minutes, without tools.
The high-performance antennas incorporate built-in INS and DGPS for precise self-calibration, auto-acquisition and tracking.,The systems are available with five different reflector sizes, and support a variety of radio modulations including CDL, FDD, DVB-T COFDM, OFDM, and MANET/MIMO mesh networking.
Reflector Diameter Options: 0.61, 0.9, 1.22, 1.5, 1.83 m
Band Options: UHF, L1, L2, S, C1, C2, Ku
