Mini GS Tracking Antenna

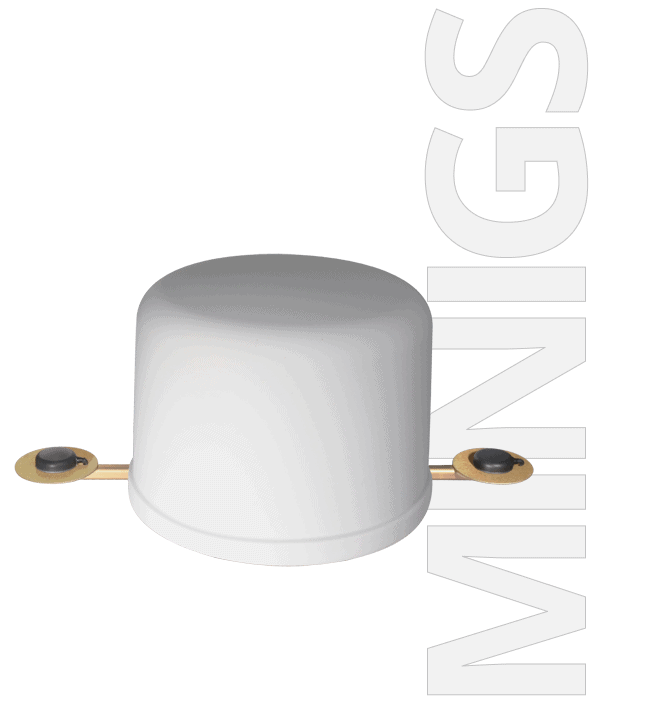

The Mini GS is a rugged weatherproof tracking antenna that is ideal for UGVs and other ground vehicles and well as maritime platforms such as USVs. Featuring an embedded INS and advanced DGPS system, the antenna provides accuracy to 0.15° on both stationary and moving vehicles.

The high-gain antenna is easy to install on a range of platforms and can be connected to a local PC via Ethernet. The system supports a variety of secure military radio waveforms and network topologies.

Size (H x D) 13.2 x 14”
Weight 13 lbs
Input Current 1A nominal
Band Options L, S, Lower C, Upper C, Ku
Azimuth Steering Continuous rotation, 100°/second (+/- 0.1° accuracy)
Elevation Steering Max -30° to +90°
