Troll Systems is a leading developer and manufacturer of tactical tracking antenna systems and C2 data link solutions for UAVs and unmanned systems in all domains.

Designed to provide high reliability and rugged performance in the most challenging of situations, our products have been selected by a number of leading clients, including aerospace OEMs, government and law enforcement agencies, and leading contractors to the United States Department of Defense.

long range drone antenna

Long-Range C2 Data Link & ISR Tracking Antennas

Our long-range drone antennas are ideal for providing robust C2 (command and control) data links for unmanned systems operating in the air, on land and at sea. Options are available covering frequency bands from UHF to Ku.

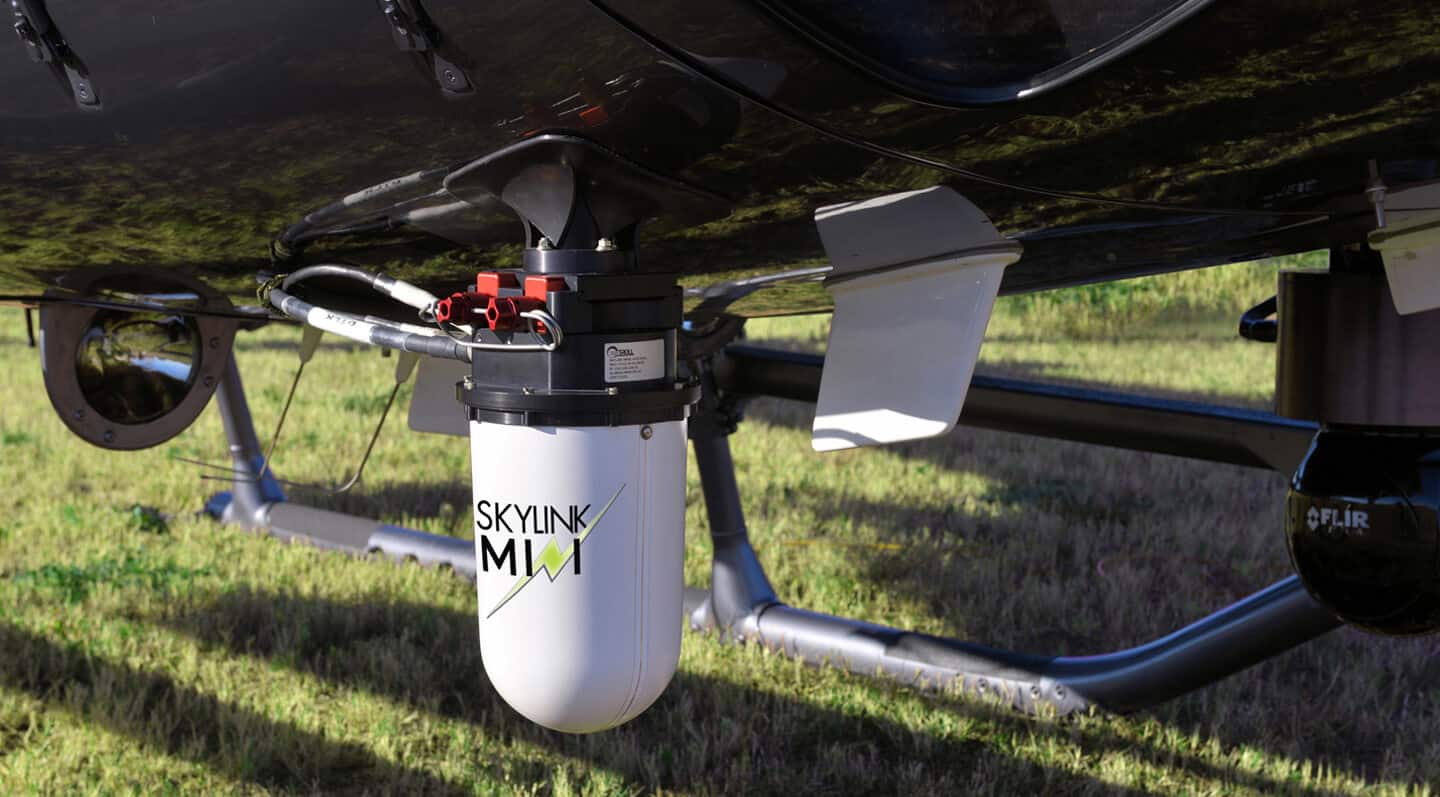

SkyLink Mini Directional Airborne Tracking Antennas

Airborne Directional Antennas

Our DO-160 certified SkyLink Mini directional antennas are ideal for UAV C2ISR, providing superior range and signal performance even under highly challenging conditions such as saturated RF environments and GPS jamming and denial.

The rugged antennas feature a built-in INS for self-calibration, and support a variety of radio modulations including CDL, FDD, DVB-T COFDM, OFDM, and MANET/MIMO mesh networking. Frequency options range from L to Ku bands.

Learn more: SkyLink Mini Directional Airborne Antennas >

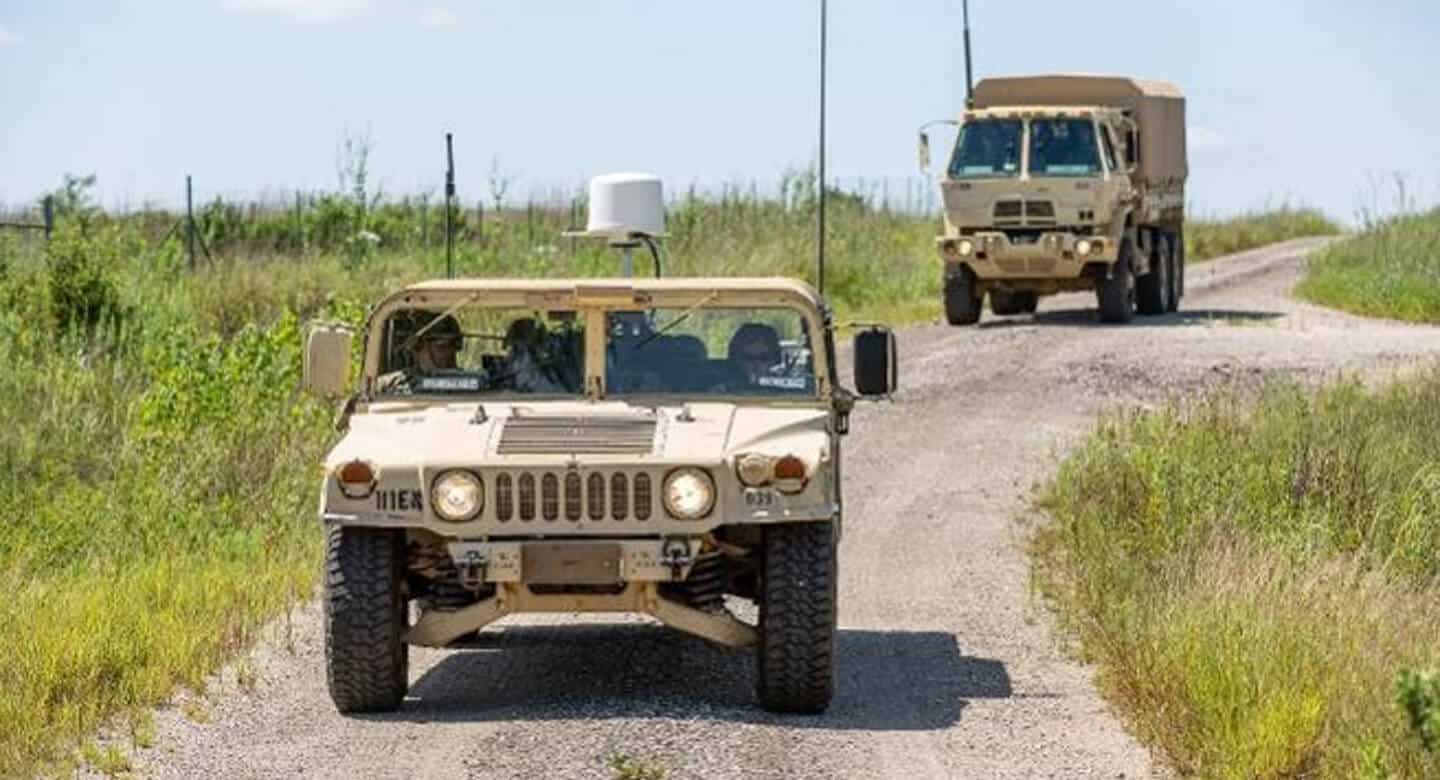

Mini GS Ground Tracking Antenna

Ground Tracking Antenna

The Mini GS is a rugged weatherproof tracking antenna that is ideal for UGVs and other ground vehicles. Featuring an embedded INS and advanced DGPS system, the antenna provides accuracy to 0.15° on both stationary and moving vehicles.

The high-gain antenna is easy to install on a range of platforms and can be connected to a local PC via Ethernet. The system supports a variety of secure military radio waveforms and network topologies, and is available in frequency options from L to Ku bands.

Learn more: Mini GS Ground Tracking Antenna >

Ground Tracking Antenna

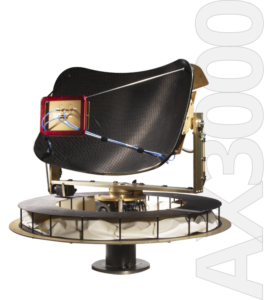

AX3000 Ground Tracking Antenna

Auto-Alignment, Calibration, Acquisition & Tracking

The ground-based AX3000 tracking antenna provides high-performance automated tracking of targeted radio sources and high-data rate links, incorporating an advanced INS and DGPS for auto-alignment down to sub-degree precision.

The ITAR-free antenna is designed to MIL-STD-810H specifications and provides fully-duplexed multi-band operation at frequencies from UHF to Ku.

Learn more: AX3000 Ground Tracking Antenna >

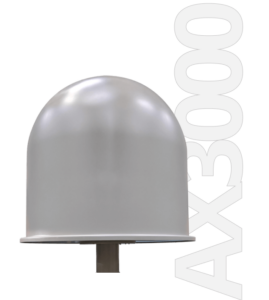

AX3000 Marine Tracking Antenna

Drone tracking antenna suited to maritime use

AX3000 Marine Tracking AntennaThe self-contained AX3000 marine antenna is ideal for tracking of UAVs (unmanned aerial vehicles) from USVs or manned vessels, featuring robust corrosion resistance and environmental sealing. Using state-of-the-art inertial sensing and DGPS, the antenna is capable of automatically tracking high-bitrate video and data links even under GNSS-denied conditions.

The AX3000 provides multi-band operation at frequencies from UHF to Ku-band, and supports a variety of radio waveforms and topologies including CDL, FDD, DVB-T COFDM, multi-stream OFDM and MANET/MIMO.

Learn more: AX3000 Marine Drone Tracking Antenna >

More information:  Long-Range C2 Antennas >

Radio-Agnostic Antenna Tracking Systems

Our radio-agnostic tracking antenna solutions for ground, aerial and marine applications are highly configurable, featuring easily swappable radio modules and band-pass filter sets with tool-free setup.

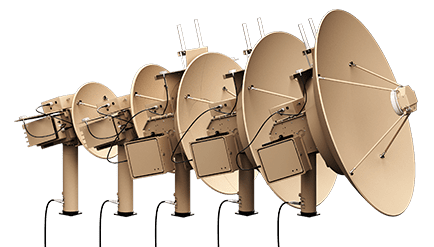

MTX Tactical Auto-Tracking Antennas

Auto Tracking AntennasThe MTX series of auto-tracking antennas allows UAV, UGV and USV operators to maximise the range and reliability of ISR, video and data communications. Incorporating high-gain reflectors, multi-band SDR transceivers and continuously rotating pan and tilt systems, the antennas provide superior performance in challenging tactical environments.

MTX antenna systems are available in five different sizes, with options from single to quad-band configurations.

Power Consumption 100W typical, 500W max
Band Options UHF, L1, L2, S, C, X, Ku
Azimuth Steering Continuous rotation, 15°/second (+/- 0.5° accuracy)
Elevation Steering -15° to +60°

SDR Transceiver & Receivers

Our TX/RX radio transceivers provide video data link processing, high-speed coding, tracking and control; while our receivers support video decoding with secure Ethernet distribution.

MicroLink SDR Transceivers

Software-defined FDD transceiver and mission payload controller

SDR software-defined radio transceiversOur MicroLink software-defined radio transceivers enable mission payload control as well as enhanced processing and multi-streaming of video and sensor data. Operating in frequency bands from 1.2 GHz to 7 GHz, the high-bandwidth systems automatically adapt COFDM modulation to maximize range or bit rate according to presets or dynamic mission requirements.

The system incorporates a high-performance and low-power 64-bit NVIDIA supercomputer with over one teraflop of processing power, enabling accelerated video encoding, decoding, encryption and control. It also includes a fully managed 100/1000 Ethernet switch and router for connecting to onboard payloads.

Learn more: MicroLink SDR Transceiver >

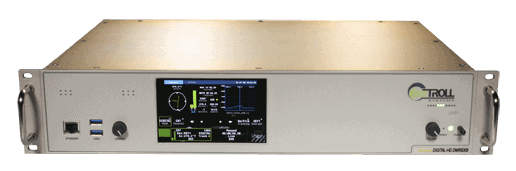

Diversity Receiver Systems & Network Controllers

Multi-channel microwave receiver with embedded remote site antenna controller

Diversity Receiver Systems & Network ControllersOur diversity receiver systems include 360° high-gain wideband ground antennas as well as IP-based controllers for remote locations.

These solutions are ideal for receiving and decrypting video streams from UAVs and unmanned vehicles for real-time display.

Learn more: Diversity Receiver Systems & Network Controllers >

More information:  SDR Transceiver & Receivers >

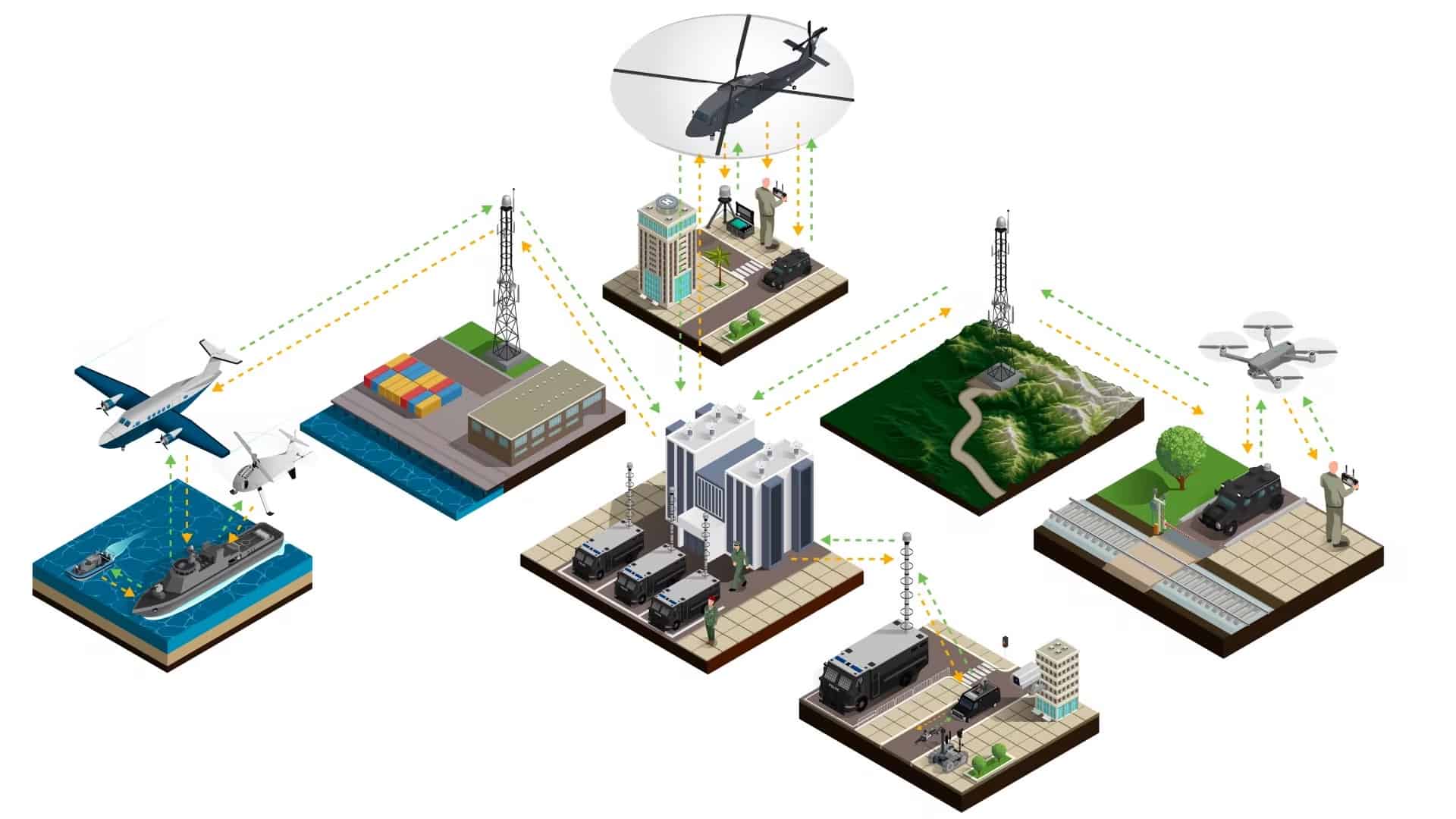

Applications

tactical antenna systems and UAV datalink solutions

UAV Tracking, C2 & C4ISR

Our communications solutions are ideal for command and control of UAVs and other unmanned platforms as well as ISR (intelligence, surveillance and reconnaissance), providing crucial situational awareness even in challenging RF environments.

Maritime Surveillance

With ruggedized construction and weather resistance, our antennas systems and transceivers are highly suited to coastal and maritime applications, providing connectivity for UAVs and USVs engaged in missions such as security, patrolling and search and rescue.

Law Enforcement

Troll Systems’ video and datalink antenna solutions have been widely used by federal, state and local law enforcement agencies, providing robust communications for a variety of mission-critical applications.
