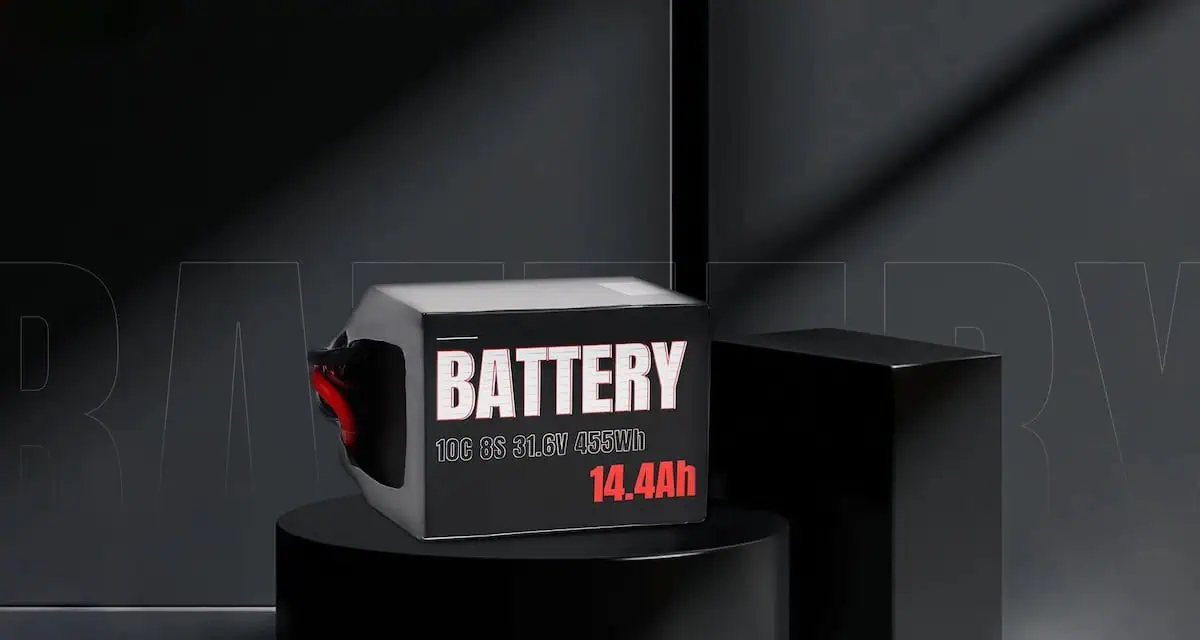

8S 14.4ah Battery
The T-DRONES 8S 14.4Ah Solid Li-Ion Battery is engineered for long-endurance UAV missions, combining solid-state lithium-ion chemistry with a compact 1.48kg build. It delivers 307Wh/kg of energy density and sustains over 500 full charge cycles, enabling extended operations with reduced payload demands for VTOL systems.
Optimized for the VA17 airframe, the battery supports flight durations beyond 120 minutes carrying an 800g payload. With a continuous discharge rate of 72A (10C), it maintains power stability under high-load conditions. The design includes voltage regulation and thermal safeguards to ensure durability and reliability in repeated field deployments.
Specifications:
| Nominal Voltage: | 31.6V |
| Operating Voltage: | 30.24V–30.48V |
| Capacity: | 14,400mAh |
| Energy Density: | 307Wh/kg |
| Weight: | 1480g |
| Size (T × W × L): | 86mm × 77mm × 118mm |
| Charging Current (Max): | 7.2A |
| Max Discharge Rate: | 10C |
| Cycle Life: | ≥500 cycles |
