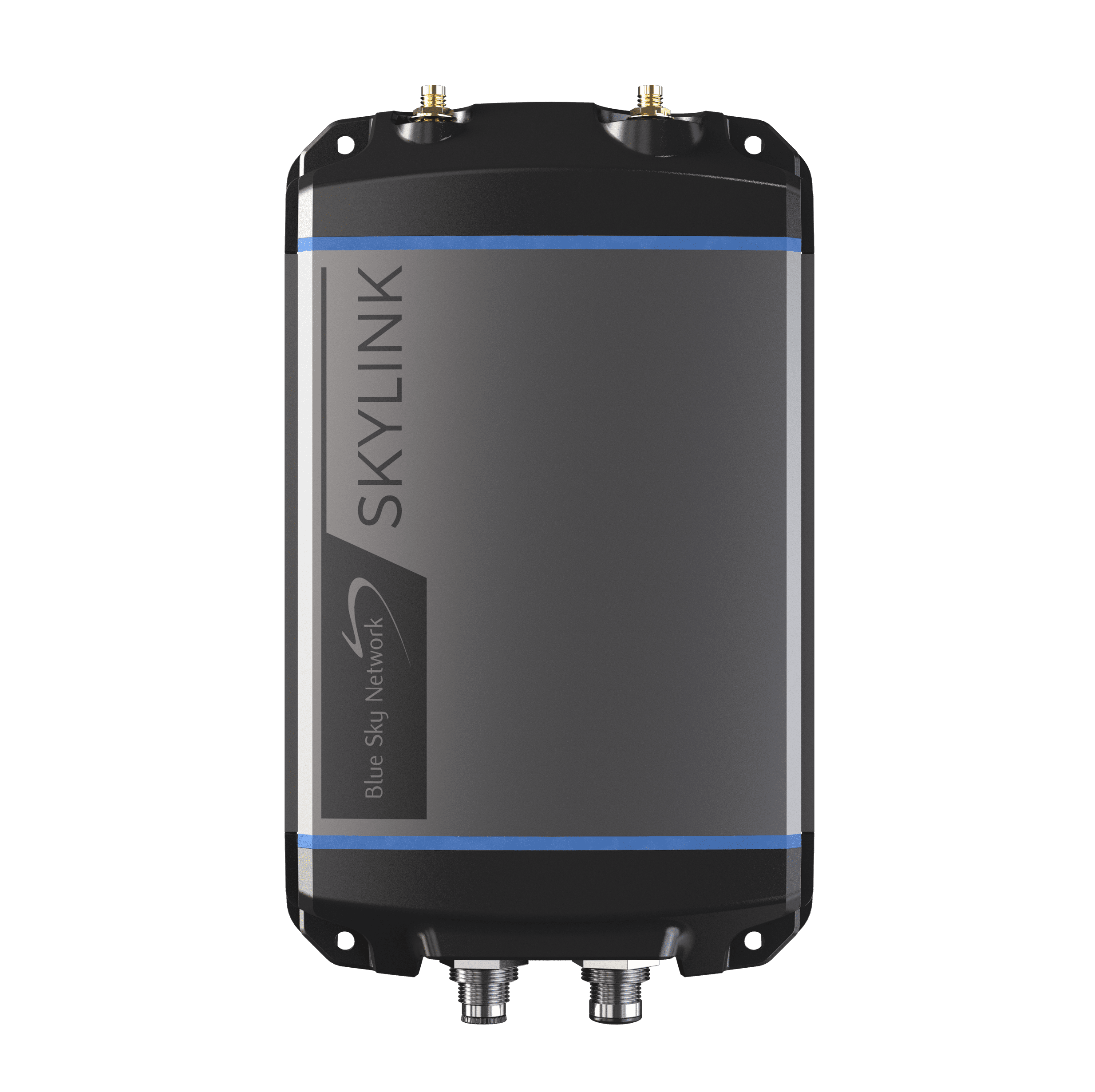

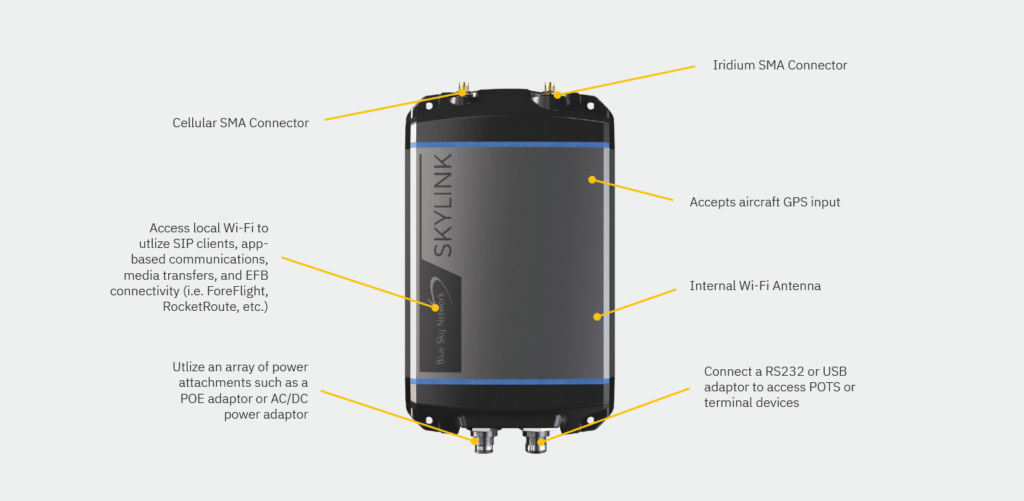

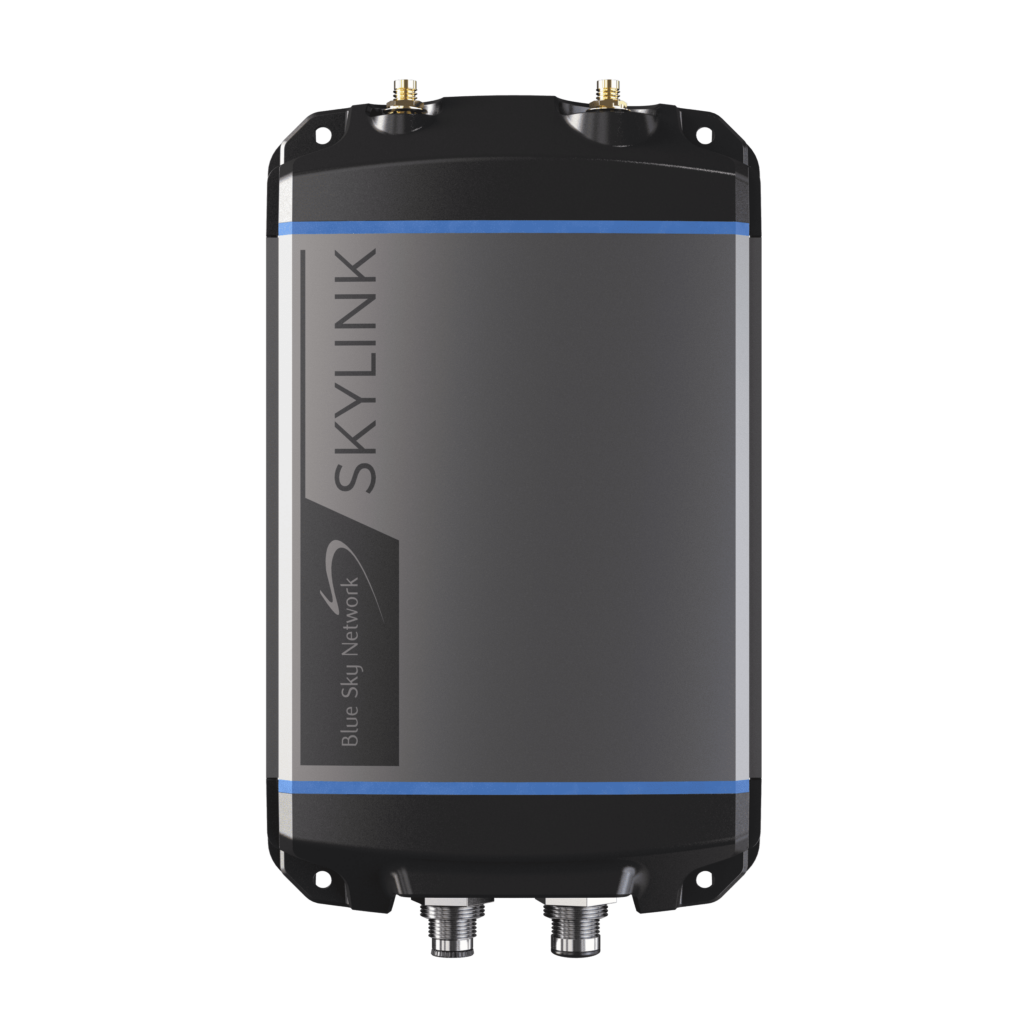

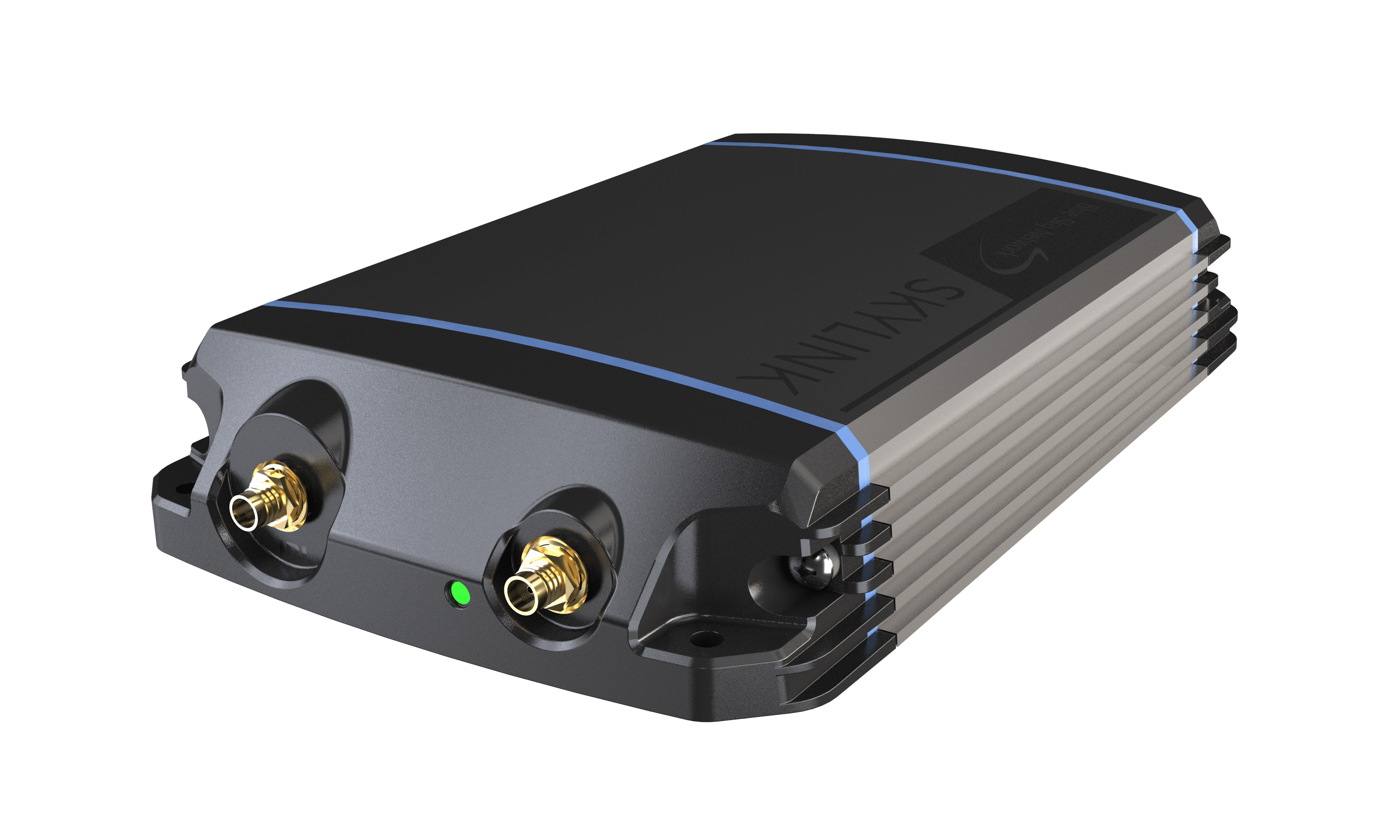

SkyLink 7100 delivers next-generation, global satellite and cellular technology to support voice and data for aviation. This compact and versatile communications terminal offers 4G/LTE and Iridium Certus broadband satellite technology, switching between each datalink with least-cost routing software. The SkyLink 7100 enables enterprise-grade IP connectivity along with two dedicated high-definition voice channels. The SkyLink 7100’s small size allows for easy integration and installation on aircraft or the ability to be used as a transferrable portable device. An optional rechargeable backup battery offers up to 6 hours of continuous power for off-grid sites, power outages, or remote operations. Enjoy constant connectivity anywhere on the planet.
- Enable 4G/LTE and Iridium Certus midband connectivity
- Switch between cellular and satellite connectivity using least-cost routing software
- Integrate with SkyWeb and TrooTrax for flight tracking, monitoring, and communication
- Access reporting features to track and manage data usage, positioning, device health, and more
- Low SWaP for easy install on a variety of aircraft
- Support Beyond Visual Line of Sight (BVLOS) and autonomous communications
- Support VoIP, and messaging apps, with the capabilities to support up to 20 SIP clients
| IRIDIUM SERVICES | Iridium Certus |
| POWER REQUIREMENTS | 10 VDC to 34 VDC |
| POWER CONSUMPTION | 18W peak power, 7W nominal |
| OPERATING TEMPERATURE | -40°F to 158°F (-40°C to +70°C) |
| ENVIRONMENTAL | IP65 Compliant |
| DIMENSIONS | H x W x D = 5” x 8” x 1.25” (12.7 x 20.3 x 3.2 cm) |
| WEIGHT | 1.6 lbs (0.73kg) |
| ENVIRONMENTAL TESTS | DO-160 Revision G |
| CONNECTIVITY | Iridium Certus Satellite
Cellular and Wi-Fi connectivity GNSS positioning/tracking Ethernet, USB, RS232 Least-cost routing Remote device management Diagnostics and health monitoring Data analytics and edge computing Integration with fleet management tools |
