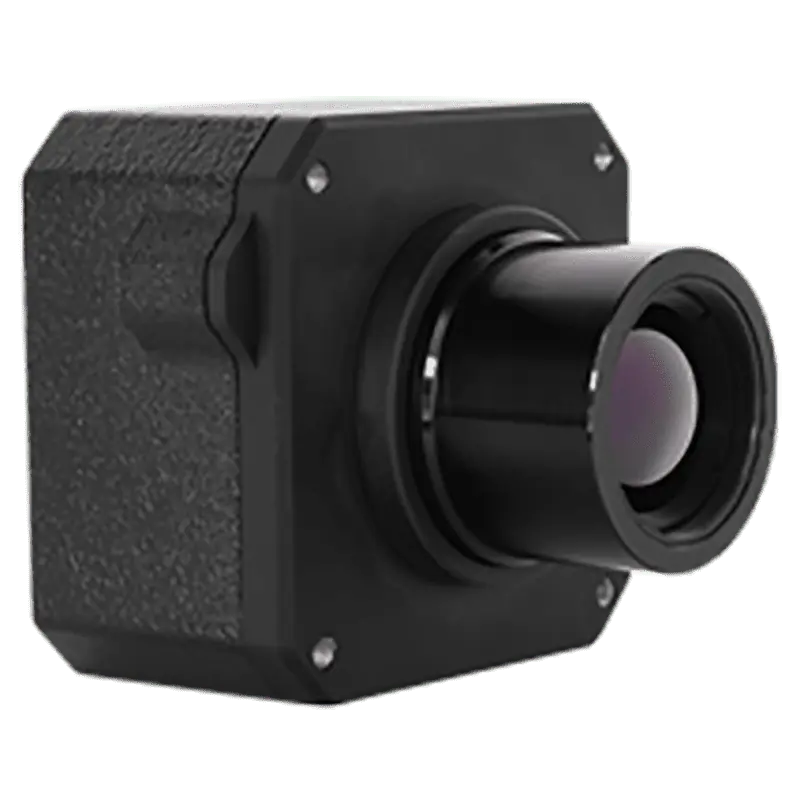

Viento 1280
The Viento 1280 is a high-definition uncooled LWIR camera providing very high sensitivity in a low-SWaP package that is ideal for developers and system integrators of UAVs, UGVs and robotic systems.
Digital output can be provided via UVC-compatible USB 3.0. A 14-bit digital video stream is available via an OEM board-to-board connector or an adapter board.
| No Lens | 12.8mm | 25mm | 35mm | |
| Array Format | 1280 x 1024 | 1280 x 1024 | 1280 x 1024 | 1280 x 1024 |
| Pixel Pitch | 10 microns | 10 microns | 10 microns | 10 microns |
| Frame Rate | 30 Hz | 30 Hz | 30 Hz | 30 Hz |
| F# | N/A | 1.4 | 1.2 | 1.2 |
| FOV or H/VFOV | N/A | 59° x 46.5° | 28.7° x 23.1° | 20.7° x 16.7° |
| Size (L x W x H) | 47 x 65 x 60 mm | 75 x 65 x 60 mm | 70 x 65 x 60 mm | 77 x 65 x 60 mm |
| Weight | 115g | 194g | 163g | 220g |
| Power Consumption | 3.0 W | 3.0 W | 3.0 W | 3.0 W |
