Ventus Hot

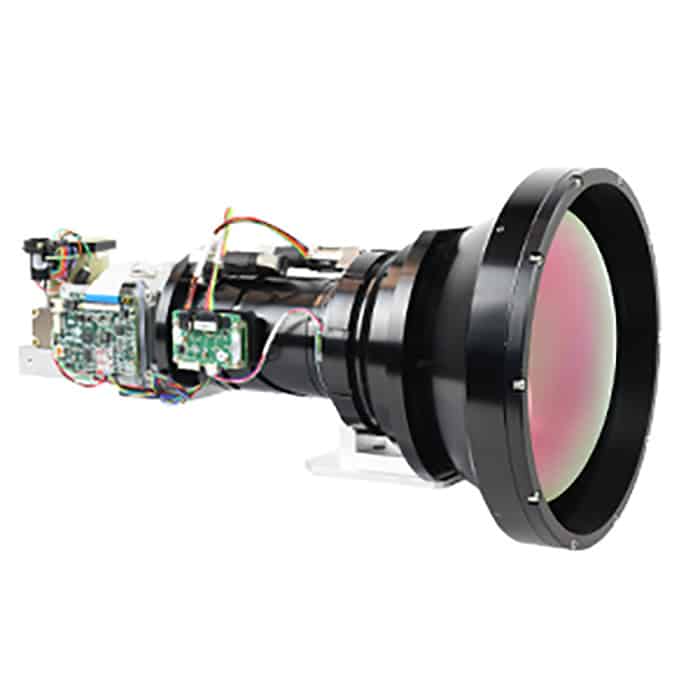

Ventus HOT is an MWIR thermal imaging camera core designed for long-range security and surveillance applications. Based around a cutting-edge HOT (high operating temperature) detector, it delivers high-quality imagery under a range of environmental conditions.
The module outputs digital video via HDMI, SDI or H.264/H.265 encoded IP stream, and can be controlled via serial or Ethernet. It is available in continuous zoom 300, 690 or 900mm lens options.
| 300mm | 690mm | 900mm | |
| Array Format | 640 x 512 | 640 x 512 | 640 x 512 |
| Pixel Pitch | 15 micron | 15 micron | 15 micron |
| Frame Rate | 60 Hz | 60 Hz | 60 Hz |
| F# | 4.0 | 4.0 | 4.0 |
| FOV or H/VFOV | 35.1° to 1.8° | 15.2° to 0.8° | 11.4° to 0.61° |
| Size (L x W x H) | 261 x 106 x 106 mm | 396 x 210 x 210 mm | 476 x 286 x 286 mm |
| Weight | 1920g | 5220g | 8340g |
