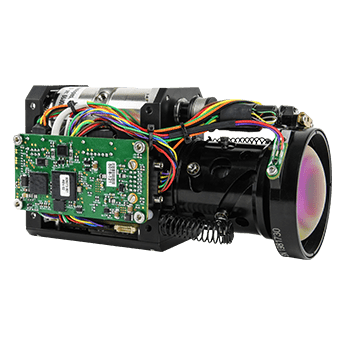

Ventus Compact
The Ventus Compact is a cooled MWIR camera with a low SWaP footprint that has been specifically designed for size- and weight-constrained UAS. The camera includes an advanced ‘NUC Through Zoom’ calibration capability, providing consistent imagery throughout the entire zoom range of 20 to 275 mm.
Video can be output via USB 3.0, IP, HDMI and 16-bit CameraLink.
| No Lens | 25mm | |
| Array Format | 640 x 512 | 640 x 512 |
| Pixel Pitch | 15 micron | 15 micron |
| Frame Rate | 60 Hz | 60 Hz |
| FOV or H/VFOV | N/A | 28° to 1.9° |
| Size (L x W x H) | 78 x 75 x 55 mm | 145 x 65 x 75 mm |
| Weight | 500g | 764g |
| Power Consumption | 12W typical, 19W max | 12W typical, 19W max |
