Vayu HD

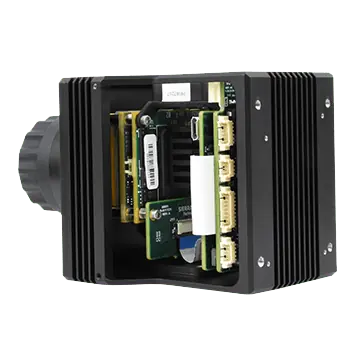

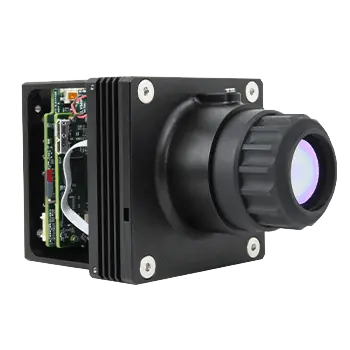

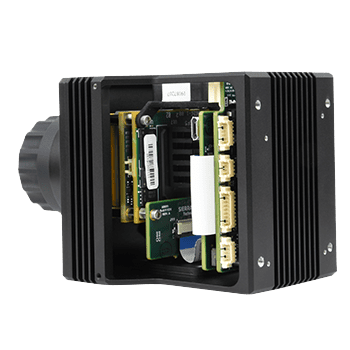

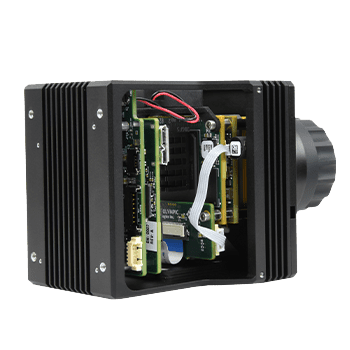

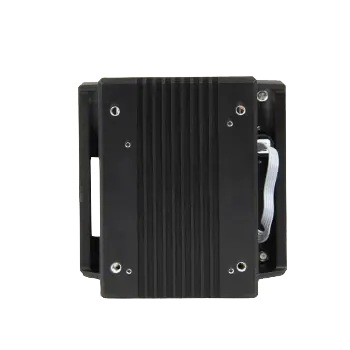

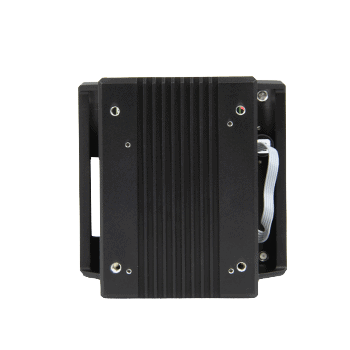

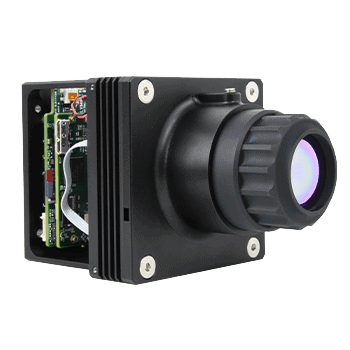

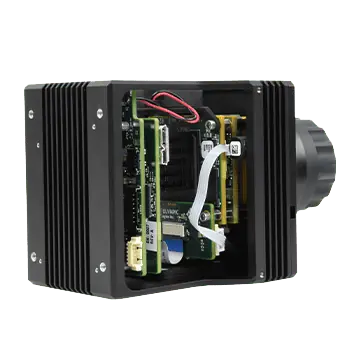

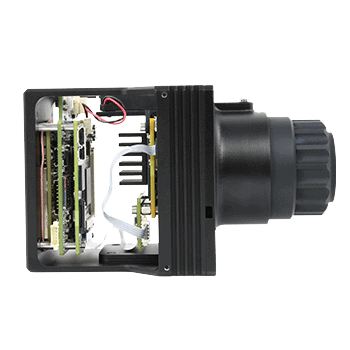

The Vayu HD is a low-SWaP LWIR thermal camera featuring the world's first full HD 1920 x 1200 x 12 µm uncooled microbolometer array. Providing superior image clarity in a compact and lightweight package, it is ideal for drone thermal imaging applications such as mapping, surveillance and search and rescue.

The camera is available with 25, 50, or 87 mm lenses, and outputs HDMI and IP Video with H.264/H.256 encoding.

25mm 50mm 87mm
Array Format 1920 x 1200 1920 x 1200 1920 x 1200
Pixel Pitch 12 micron 12 micron 12 micron
Frame Rate 60 Hz 60 Hz 60 Hz
F# 1.2 1.2 1.2
FOV or H/VFOV 49.5° by 32.1° 25.9° by 16.4° 15.1° by 9.46°
Size (L x W x H) 150 x 77 x 72 mm 139 x 77 x 72 mm 169 x 88 x 88 mm
Weight 504g 500g 950g
Power Consumption 12W typical, 13.5W max 12W typical, 13.5W max 12W typical, 13.5W max
