Blackbird Precision

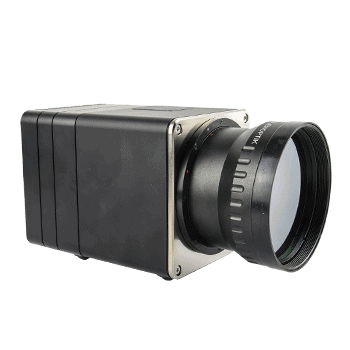

The Jenoptik Blackbird Precision is an LWIR thermal imaging system designed for high-accuracy temperature measurement in applications such as critical infrastructure monitoring and firefighting.
The camera module is easy to integrate into larger systems, providing image transfer via GigE Vision and control via GigE Vision or serial. It is available in HD and VGA resolution models, with lens options including 7.5mm, 15mm, 30mm, 60mm, 120mm, M0.2x and M0.5x.
| XGA | VGA | |
| Array Format | 1024 x 768 | 640 x 480 |
| Pixel Pitch | 17 microns | 17 microns |
| Frame Rate | 30 Hz | 30 Hz |
| Size (L x W x H) | 125 x 90 x 95 mm without lens or connectors | 125 x 90 x 95 mm without lens or connectors |
| Weight | 1.1 kg | 1.0 kg |
