SeaLINK 2105R USB Serial Adapter

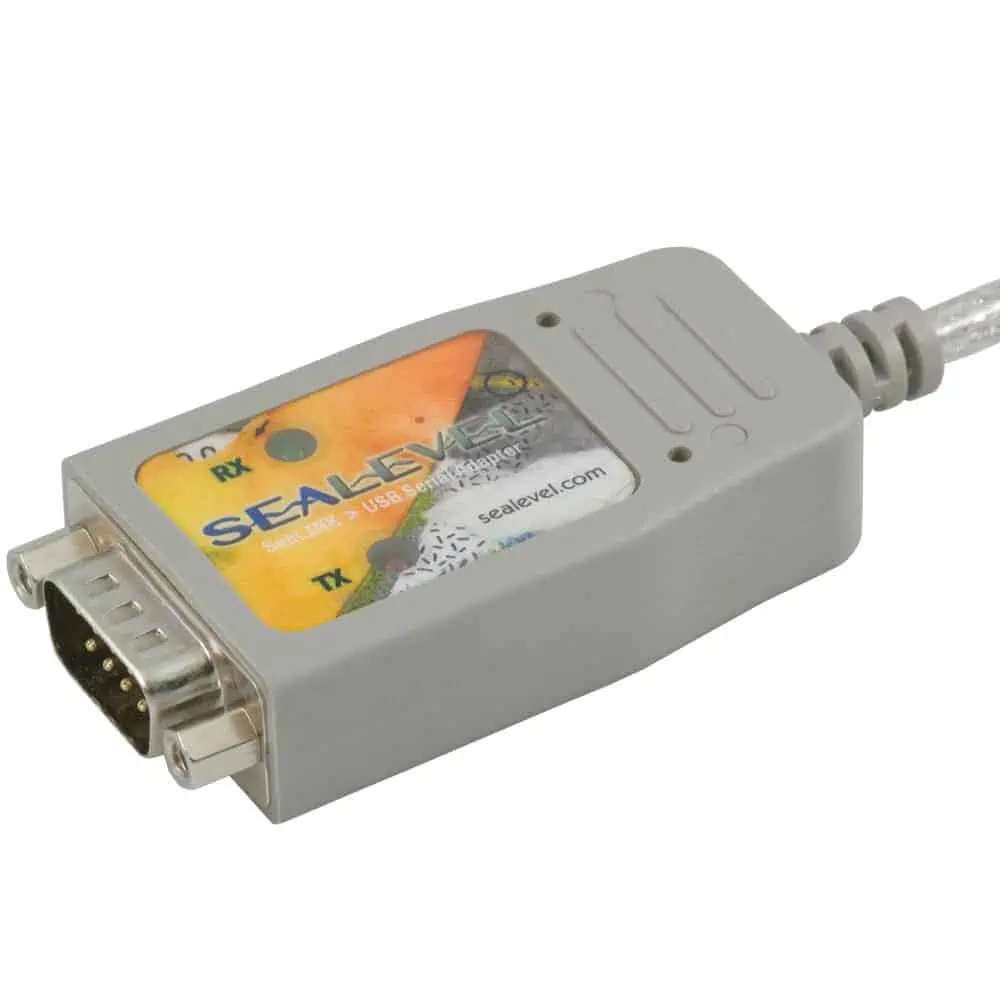

The SeaLINK® single-port USB to RS-232 DB9 serial adapter utilizes Sealevel’s expertise in military-grade rugged designs by incorporating a ruggedized, over-molded enclosure into the 2105R. This improves the reliability and durability of the USB to Serial Adapter in industrial and mobile applications such as GPS navigation systems, barcode readers, signature input devices, serial printers, scales, and similar applications.

The 2105R USB to Serial Adapter features programmable baud rate and data formats with 128-byte transmit and 384-byte receive buffers. The USB serial adapter is compatible with all standard PC baud rates and supports high-speed communication to 921.6K bps. The 2105R is powered by the USB port and status LEDs molded into the enclosure indicate serial data activity and connection to the host.

Sealevel SeaCOM USB software drivers and utilities make installation and operation easy using Microsoft Windows and Linux operating systems. After installing the software, simply plug the 2105R into an available USB port and the serial port is recognized as a standard COM port by the host system enabling compatibility with legacy software.

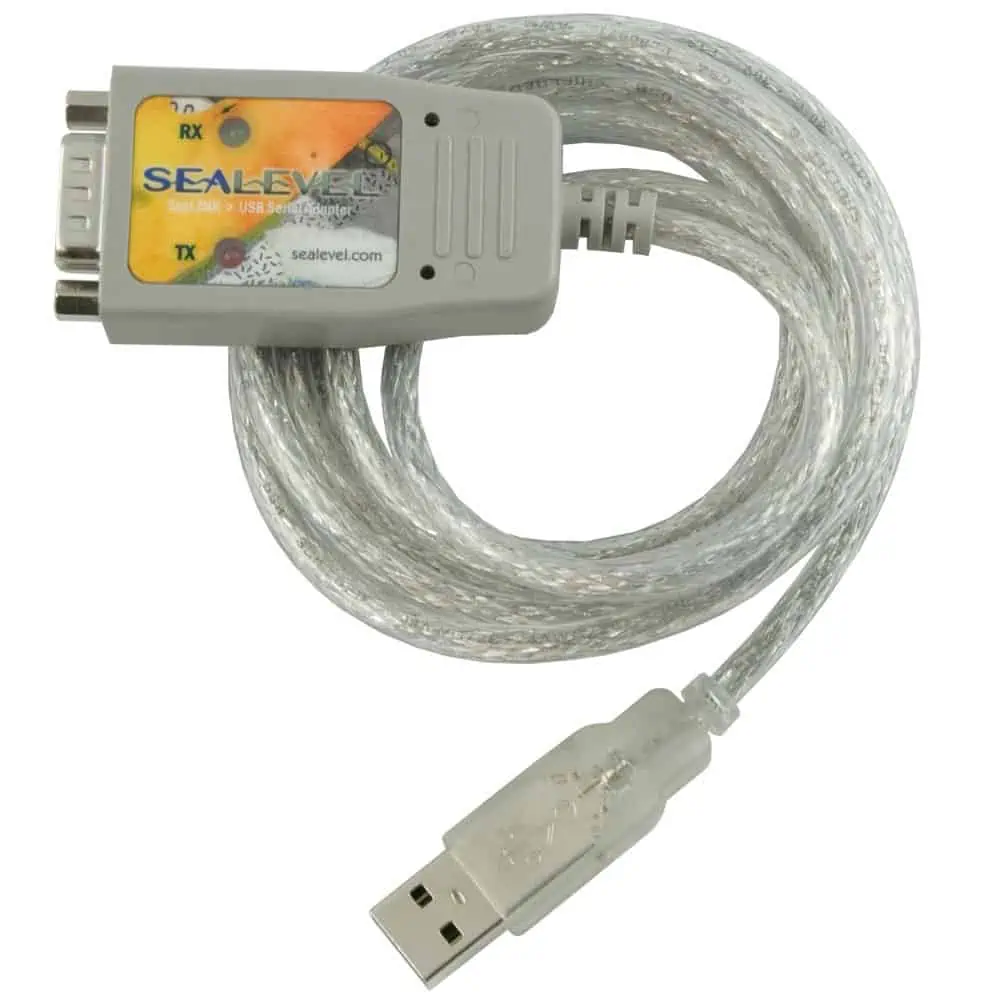

The attached cable is approximately 56 inches long and fully shielded to protect the 2105R from RF and EMI interference that is common in mobile and industrial environments. Standard operating temperature range is 0°C to 70°C (32°F to 158°F), and an extended temperature range of -40°C to 85°C (-40°F to 185°F) is optional.

I/O in Action for Unmanned Aircraft

A leading developer and integrator of unmanned systems deploys a portable transceiver unit to receive imagery and metadata from manned and unmanned aircraft. The system provides fielded soldiers with complete situational awareness. Sealevel's popular 2105R single-port USB to RS-232 DB9 serial adapter is specified for the interface due to its rugged design, including an over-molded enclosure, and reliable operation.
