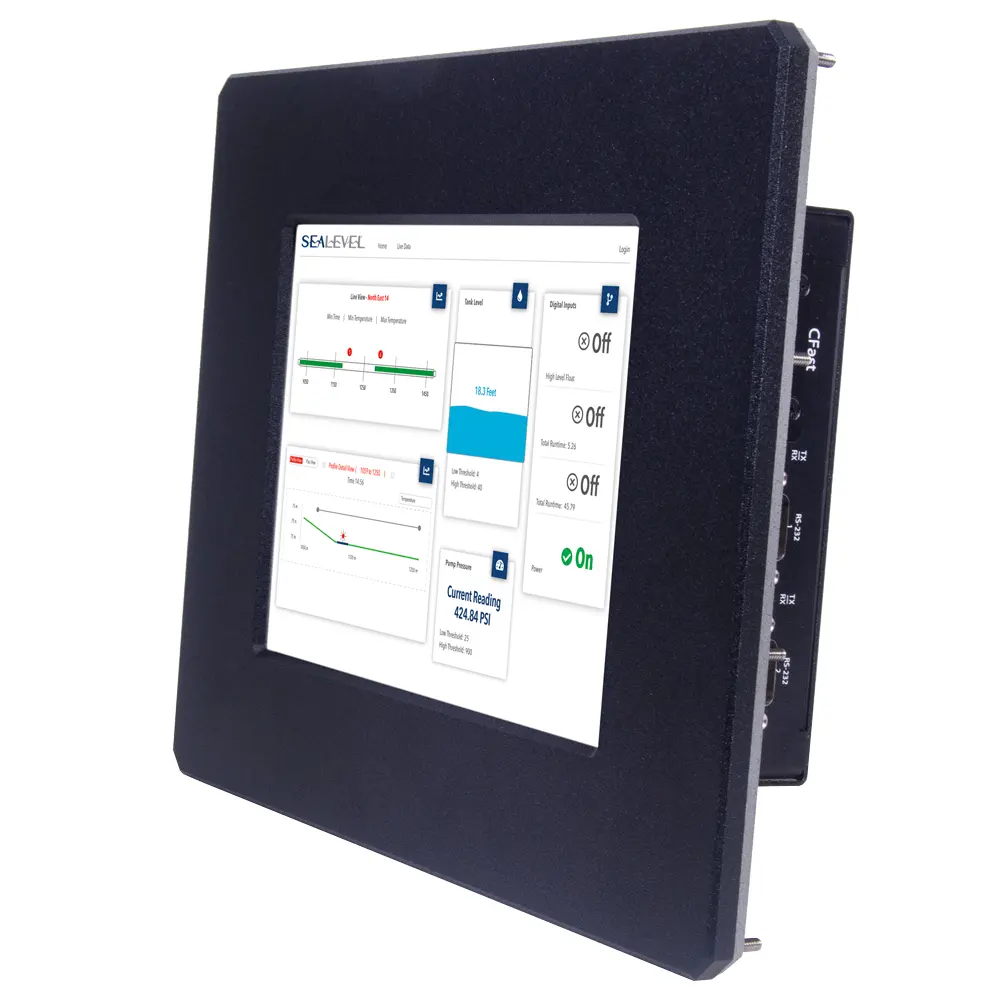

The HazPAC 10 is a rugged touchscreen panel PC based around the Intel Atom E3845 quad-core processor and designed for Windows 10 IoT Embedded. Engineered to survive harsh environments, it features an abrasion- and scratch-resistant glass surface and NEMA 4/IP64 ingress protection. The highly durable 5-wire resistive touchscreen is available in 8.4″ or 15″ sizes.
The system's COM Express architecture enables a future-proof and easily upgradable design. The PC includes 8GB of DDR3 RAM and a 64GB CFast SSD port for maximum performance in embedded systems. A rich set of standard I/O is provided, including Ethernet, serial, USB and digital interfaces, and an mPCIE expansion slot.
The fanless industrial computer operates in a wide temperature range of -40°C to 60°C. It is certified by ATEX, IECEx, and for Class I, Division 2 (Groups A, B, C, D, T4).
Dimensions (L x W x D): | 16.6 x 12.7 x 2.8” (15” model)11 x 9 x 2.8” (8.4” model) |
Approx Weight: | 11.4 lbs (15” model)5.6 lbs (8.4” model) |
Power: | 12 - 27V |
CPU: | Intel Atom E3845 quad-core |
Max Ram: | 8GB |
