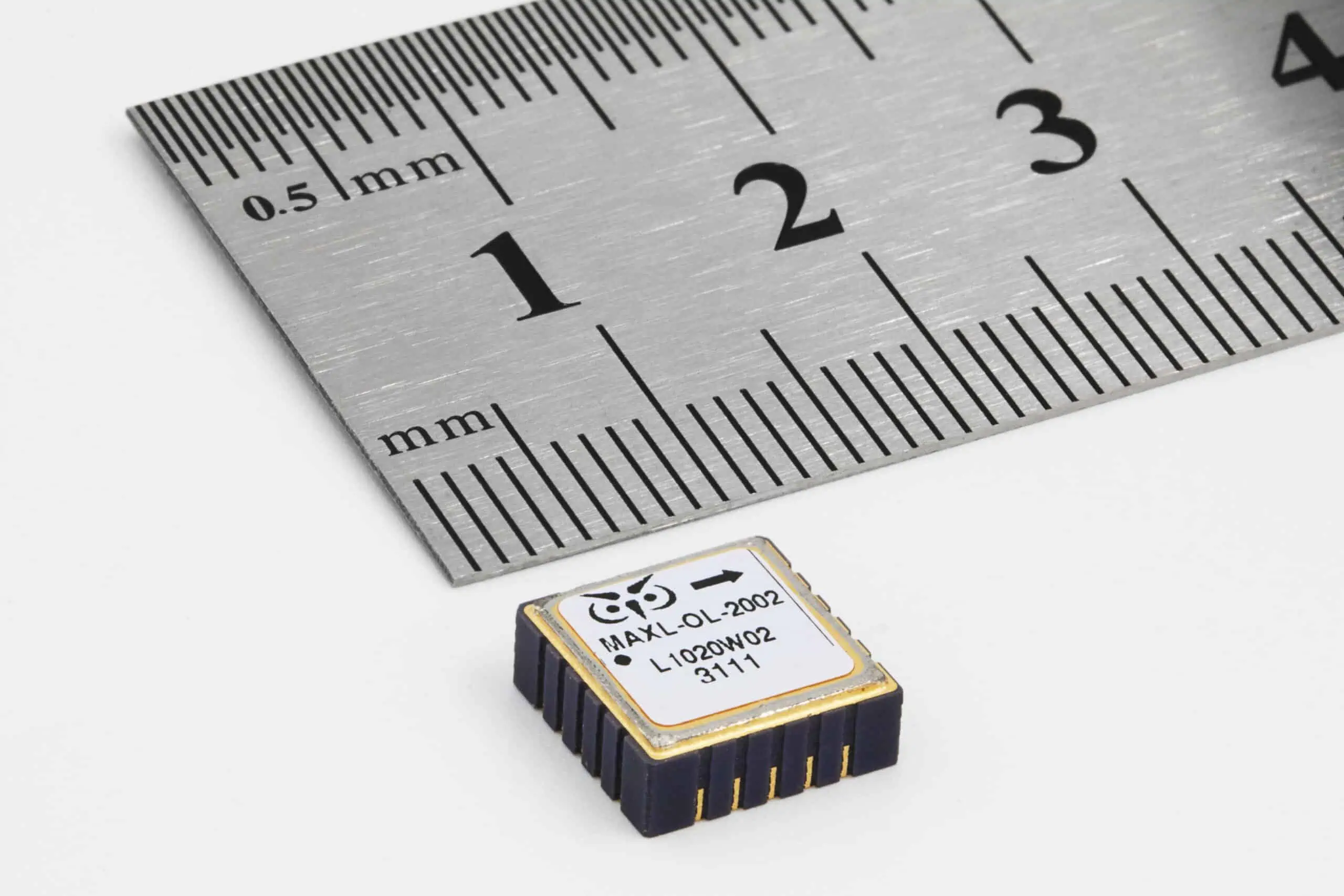

MAXL-OL-2002 is a state-of-the-art inertial sensor based on a unique MEMS device, designed to provide high stability and low noise measurement.
The accelerometer’s equivalent noise density values below 1.2 µg/√Hz, one-year bias repeatability of 0.5 mg enable excellent measurement accuracy for tilt and seismic detection applications.
A specially developed ASIC utilized in MAXL-OL-2002 produces a differential analog voltage output proportional to acceleration along with a temperature–proportional voltage output that can be used for system needs. The output voltage range is ± 1.2 V.
A highly advanced device, the MAXL-OL-2002 provides a sensing range of ± 2 g, it operates from a single power supply voltage of 3.3 V with <13 mA current consumption. The sensor is packaged in a hermetically sealed LCC20 ceramic package.
** Also available as export control free products - MAXL-OL-2002C
