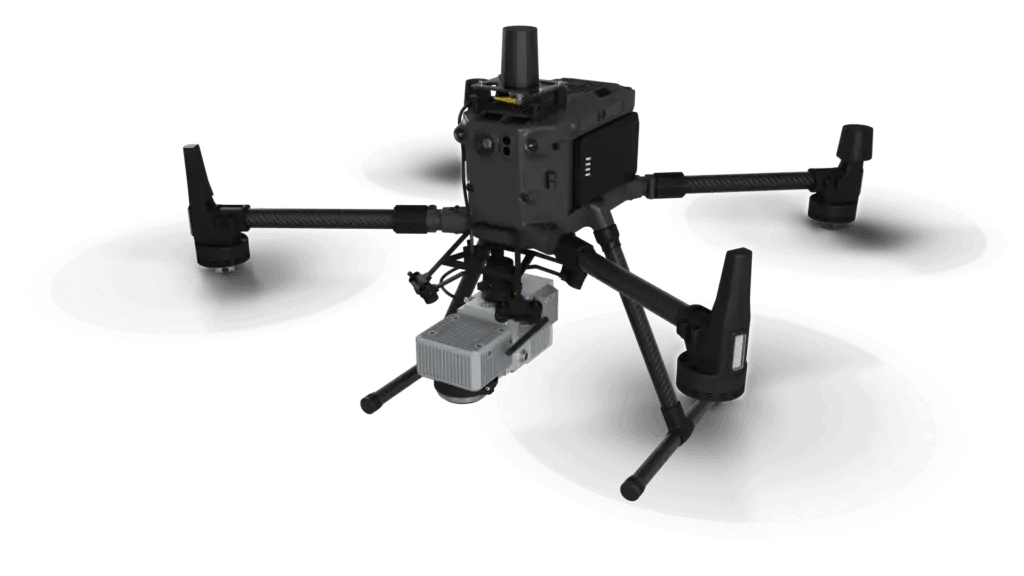

Recon-A – UAV LiDAR Scanner
The Phoenix Recon-A is designed for DJI enterprise-series UAVs, and is an ideal solution for reconnaissance mapping missions such as vegetation encroachment on powerlines. It features two scanning modes - a non-repetitive pattern for structures such as pylons, and a repetitive pattern for tasks requiring the highest accuracy.
The easy-to-use and highly versatile LiDAR payload provides efficient data collection maximizes point cloud density by utilizing a multi-pattern laser to pick up even the lowest reflective points. The integrated 24 MP high resolution camera has the same FOV as the LiDAR sensor, resulting in maximum RGB colorization of the point cloud.
- Weight: 1.2 kg
- Dimensions: 19.9 x 9.2 x 12.1 cm
- Absolute Accuracy: 3-6cm RMSEz @ 60m AGL
- Max Range: 190 m
- Max Scan Rate: 720k points per second
