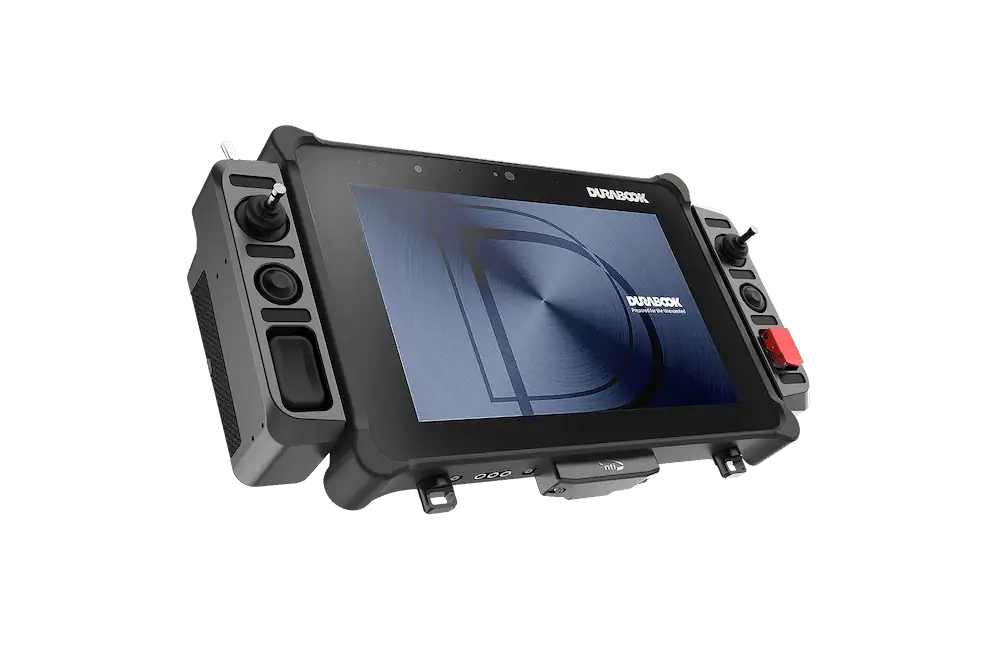

The Dragonfly ND-8 GCS is a lightweight and portable GCS designed to provide the utmost in convenience and portability for drone and unmanned systems operators while maintaining a comprehensive set of features and functionality. Based on the Durabook R8 platform and providing an 8-inch screen, the compact GCS is ideal for tactical missions requiring rapid deployment and easy transportation, and is highly suited to smaller UAVs and UGVs.
The ND-8 features military-grade connectors and components, and is compliant with MIL-STD-810H, MIL-STD-461G and IP65 standards, ensuring high performance even in the presence of shock, vibration, water, dust, and extreme temperatures. It offers multiple USB and Ethernet ports, ensuring seamless compatibility with a wide range of unmanned vehicles and ecosystems, and supports 20V power with an optional DC-DC converter.
Specifications:
| Dimensions (L x W x H): | 286 x 150 x 46 mm |
| Weight: | 1.3 kg w/tablet |
| Computing Specs: |
Intel 12th Generation processors with vPro: i7-1250U, Core i5-1230U, or Pentium Gold Processor 8500 Intel Iris Xe Graphics 8GB up to 16GB (LPDDR4x) 128GB NVMe PCIe SSD Optional: 256GB/512GB/1TB PCIe SSD Windows 11 Pro 64-bit Optional: Linux |
| Controllers: |
2-Axis Hall Effect Joystick x2 1-Axis Thumbwheel Hall Effect Switch x2 Push Button x 4 Push Button with Protective Cover x 2 Optional: 3-way control switch (Instead of 1 unit of Push Button with Protective Cover) |
| Interfaces: |
LAN 10/100 x2 USB 2.0 x 2 HDMI Optional: USB 3.2 TYPE – A Optional: USB 3.2 TYPE – C |
