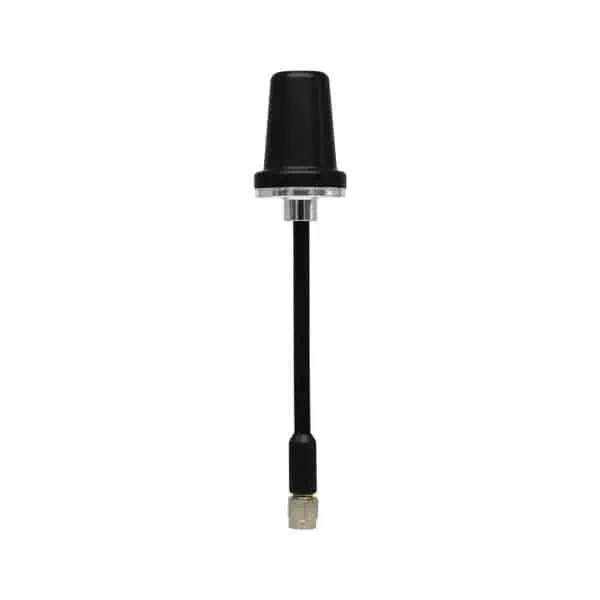

SwarmLink MPSL5000 Multipolarized Antenna

The SwarmLink MPSL5000 antenna is specially designed for UAV and UGV communications and telemetry in the 5-6GHz frequency range, with an advanced multipolarized design that minimizes signal degradation and polarization mismatch in real-world moving applications, thus avoiding loss of connectivity and control of the vehicle.

Multipolarized drone antennas

The flexible gooseneck antenna is ultra-lightweight and is ideally suited for low-SWaP unmanned vehicles operating in NLOS and obstructed environments, providing increased network throughput speeds and enhanced stability. The rugged antenna has been sealed to IP67 standards, allowing it to be deployed in challenging outdoor environments.

Specifications:

Dimensions (Lx W x H): 1.0 x 1.0 x 5.0 in
Weight: 1.1 oz
Power: 50W input
Impedance: 50 ohms nominal
Gain: 4 dBi
Frequency Range: 5-6GHz
