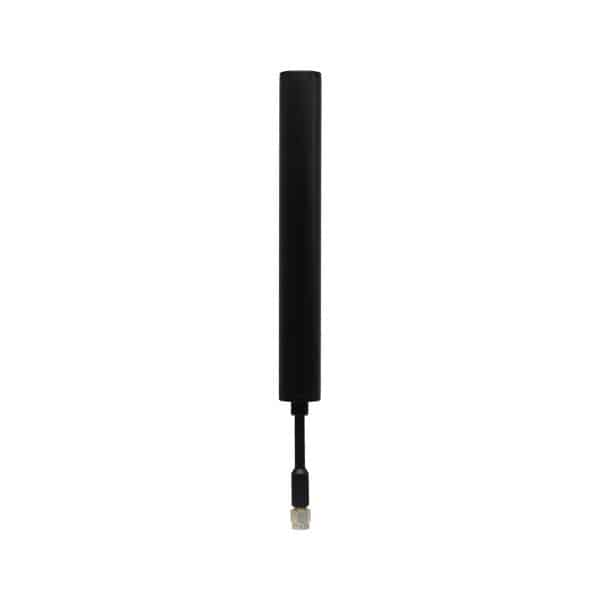

SwarmLink MPSL1300 Multipolarized Antenna
The SwarmLink MPSL1300 antenna is specially designed for UAV and UGV communications and telemetry in the 1350-1390MHz frequency range, with an advanced multipolarized design that minimizes signal degradation and polarization mismatch in real-world moving applications, thus avoiding loss of connectivity and control of the vehicle.
The flexible gooseneck antenna is ultra-lightweight and is ideally suited for low-SWaP unmanned vehicles operating in NLOS and obstructed environments, providing increased network throughput speeds and enhanced stability. The rugged antenna has been sealed to IP67 standards, allowing it to be deployed in challenging outdoor environments.
Specifications:
| Dimensions (Lx W x H): | 0.75 x 0.75 x 7.6 in |
| Weight: | 1.2 oz |
| Power: | 50W input |
| Impedance: | 50 ohms nominal |
| Gain: | 3 dBi |
| Frequency Range: | 1350-1390MHz |
