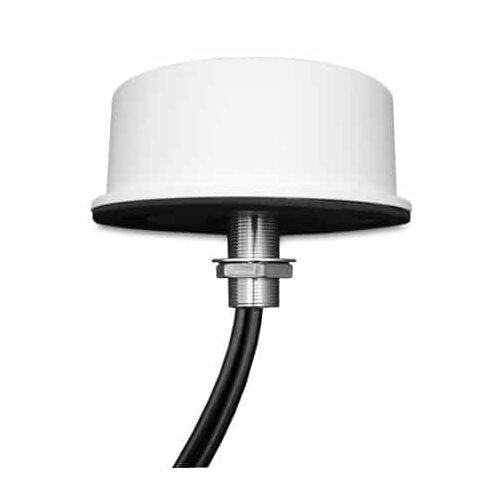

08-ANT-0944 Hemispheric Antenna
The 08-ANT-0944 is a hemispheric omni-directional mobile and Wi-Fi antenna designed for the 2 to 3GHz and 4.9 to 6GHz frequency ranges, with a patented three-dimensional element design that delivers superior patterning and continuous wideband performance for reliable mobile data communications.
With a low-profile design, the antenna features a built-in ground plane, low-loss cables and high-quality connectors, and is available with up to four separate antenna feeds for maximum diversity.
Specifications:
| Dimensions (Lx W x H): | 4.5 x 4.5 x 2.5 in |
| Weight: | 12 oz |
| Power: | 50W input |
| Impedance: | 50 ohms nominal |
| Gain: | 4 dBi |
| Frequency Range: | 2 - 3GHz | 4.9 - 6GHz |
